Multiple Junction Connector

231. C102 (Junction Connector):

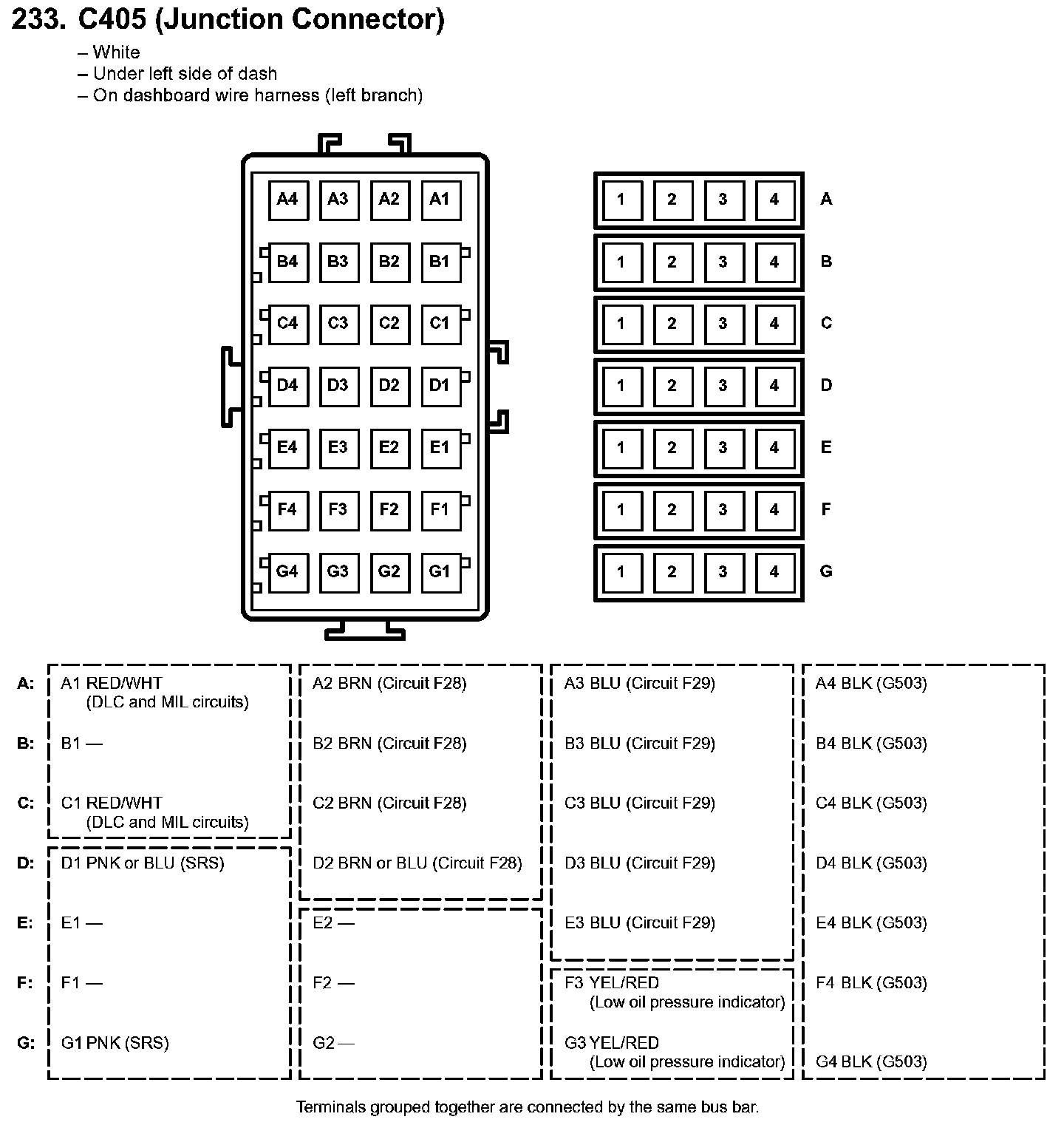

233. C405 (Junction Connector):

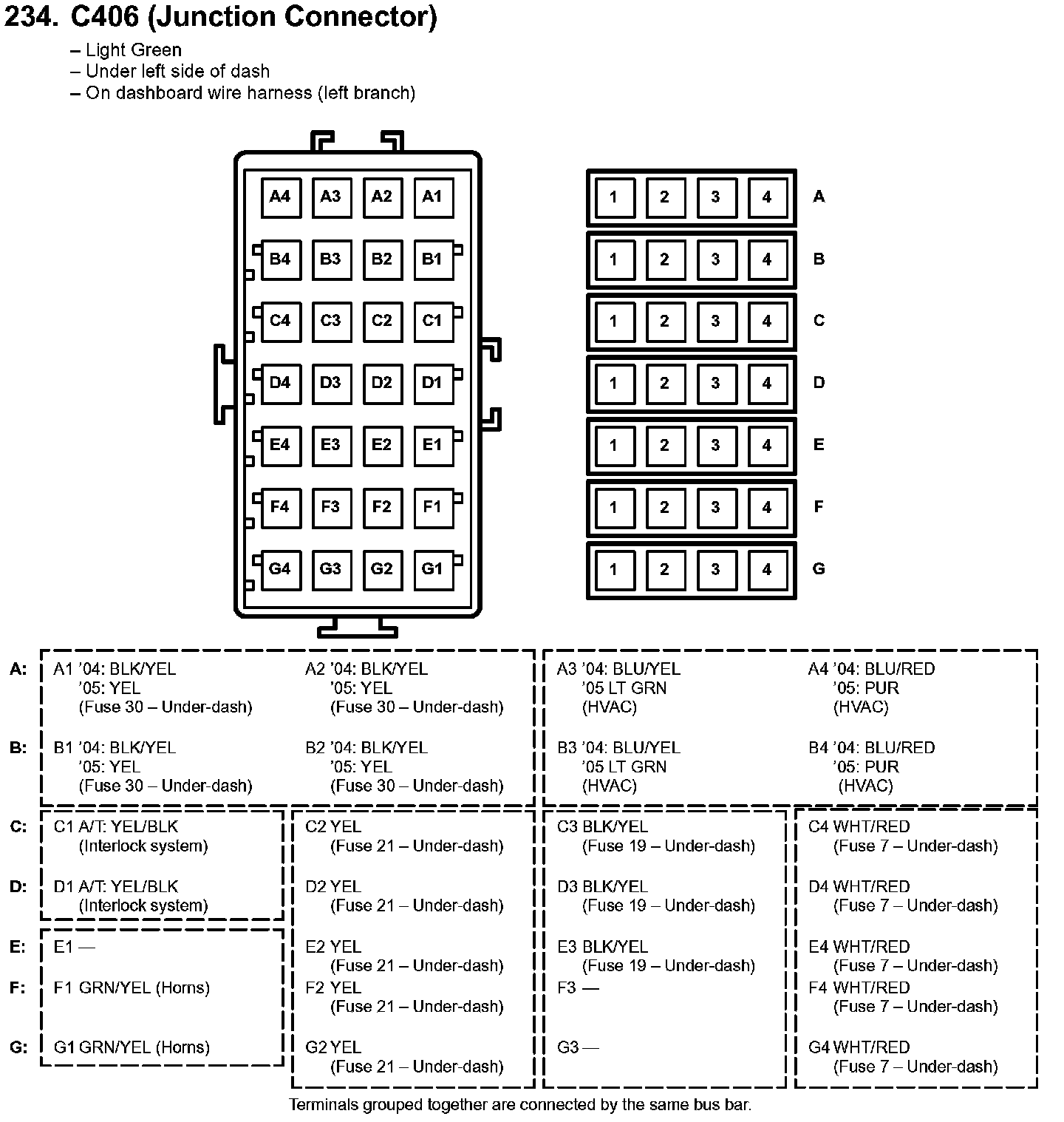

234. C406 (Junction Connector):



235. C407 (junction Connector):



236. C553 (Junction Connector):

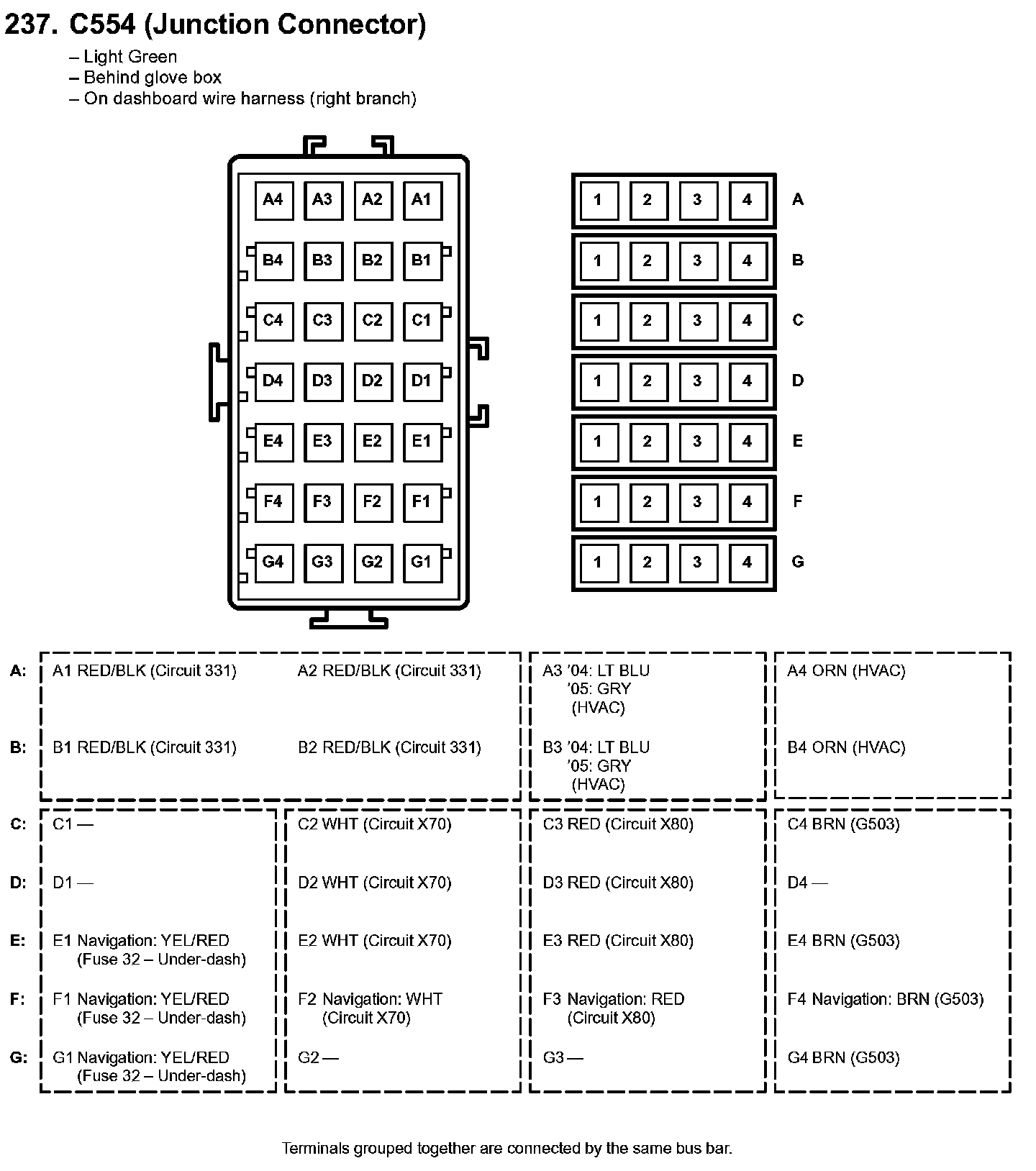

237. C554 (Junction Connector):

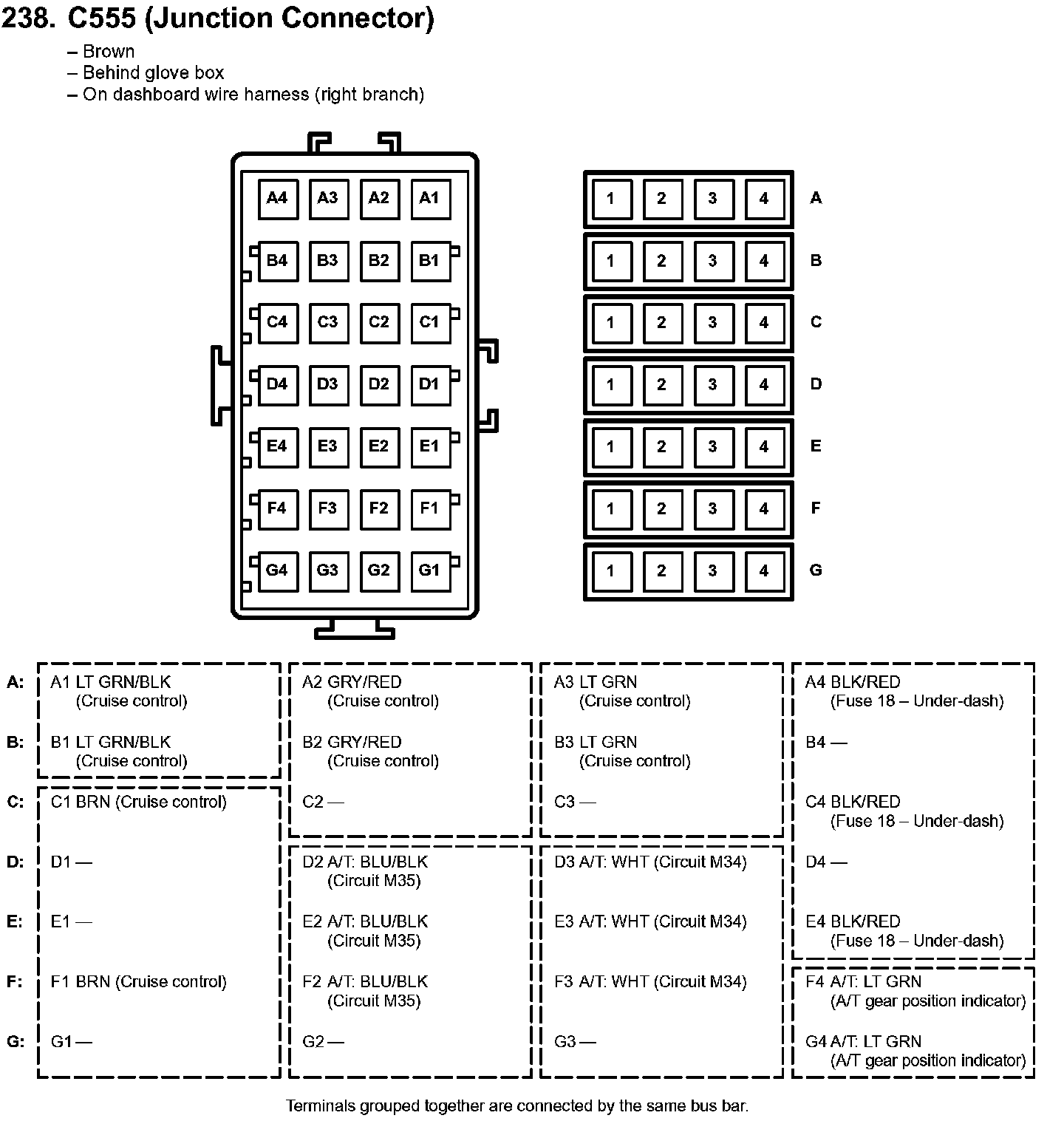

238. C555 (Junction Connector):



239. C556 (Junction Connector):
