Connector Views
Connector Views
230. Front Pasenger's Power Window Switch (Door Multiplex Control Unit):

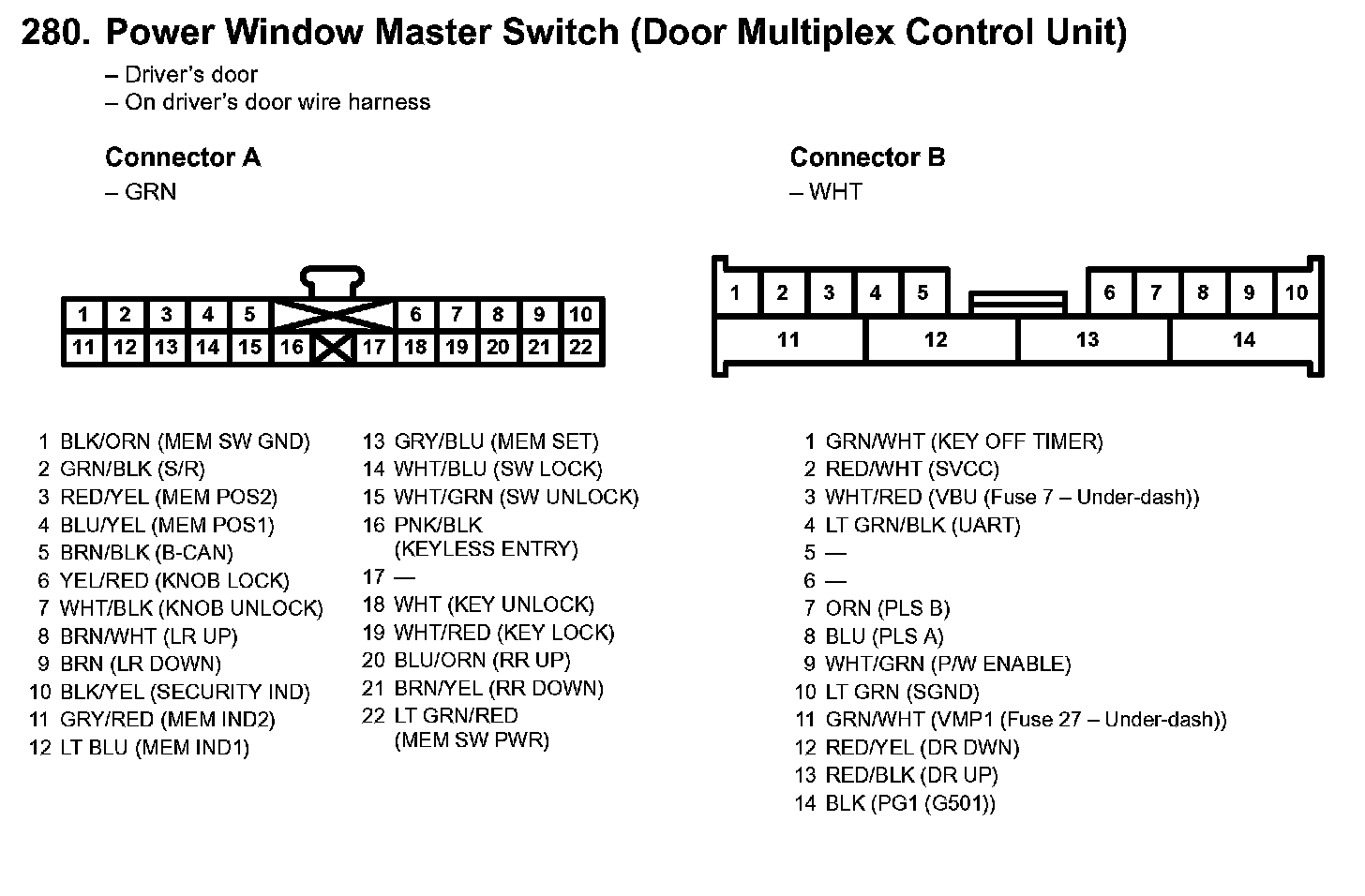

280. Power Window Master Switch (Door Multiplex Control Unit):
