Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Locations >> Harness Locations >> Console Light Subharness

Console Light Subharness

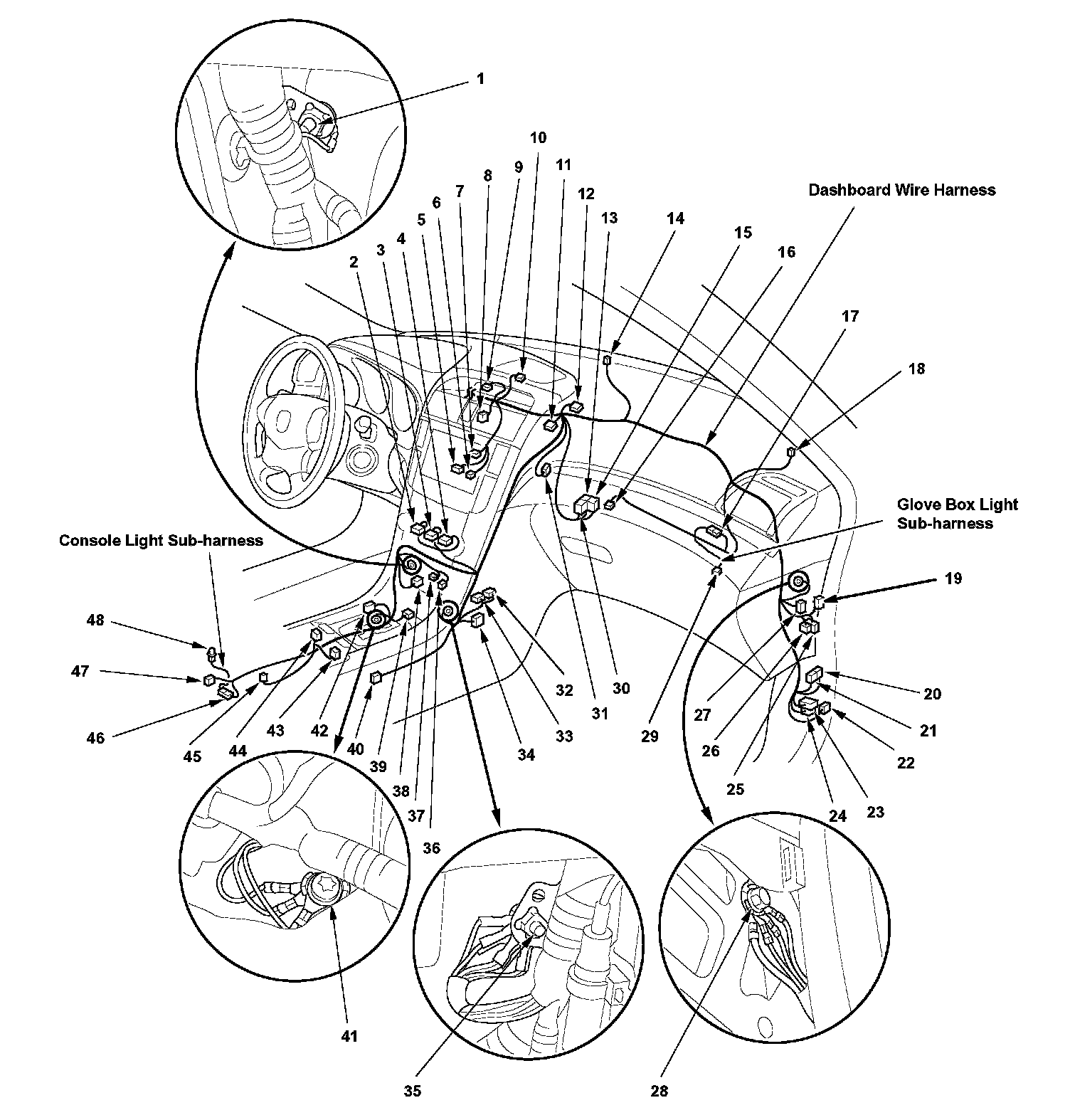

Harness Location View:

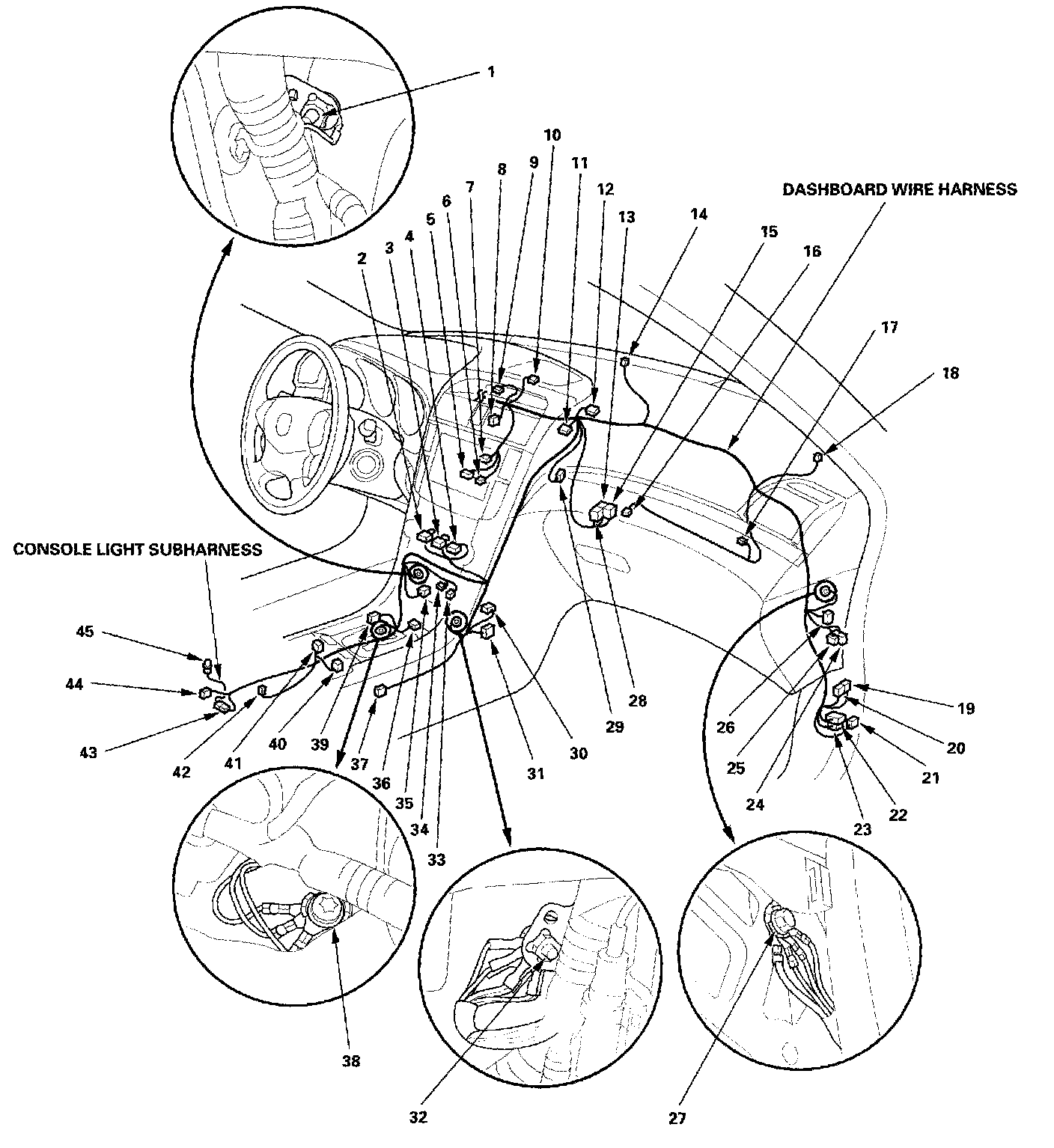

Harness Location View:



Console Light Subharness:



Console Light Sub-harness:
