Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

Heating and Air Conditioning: Locations

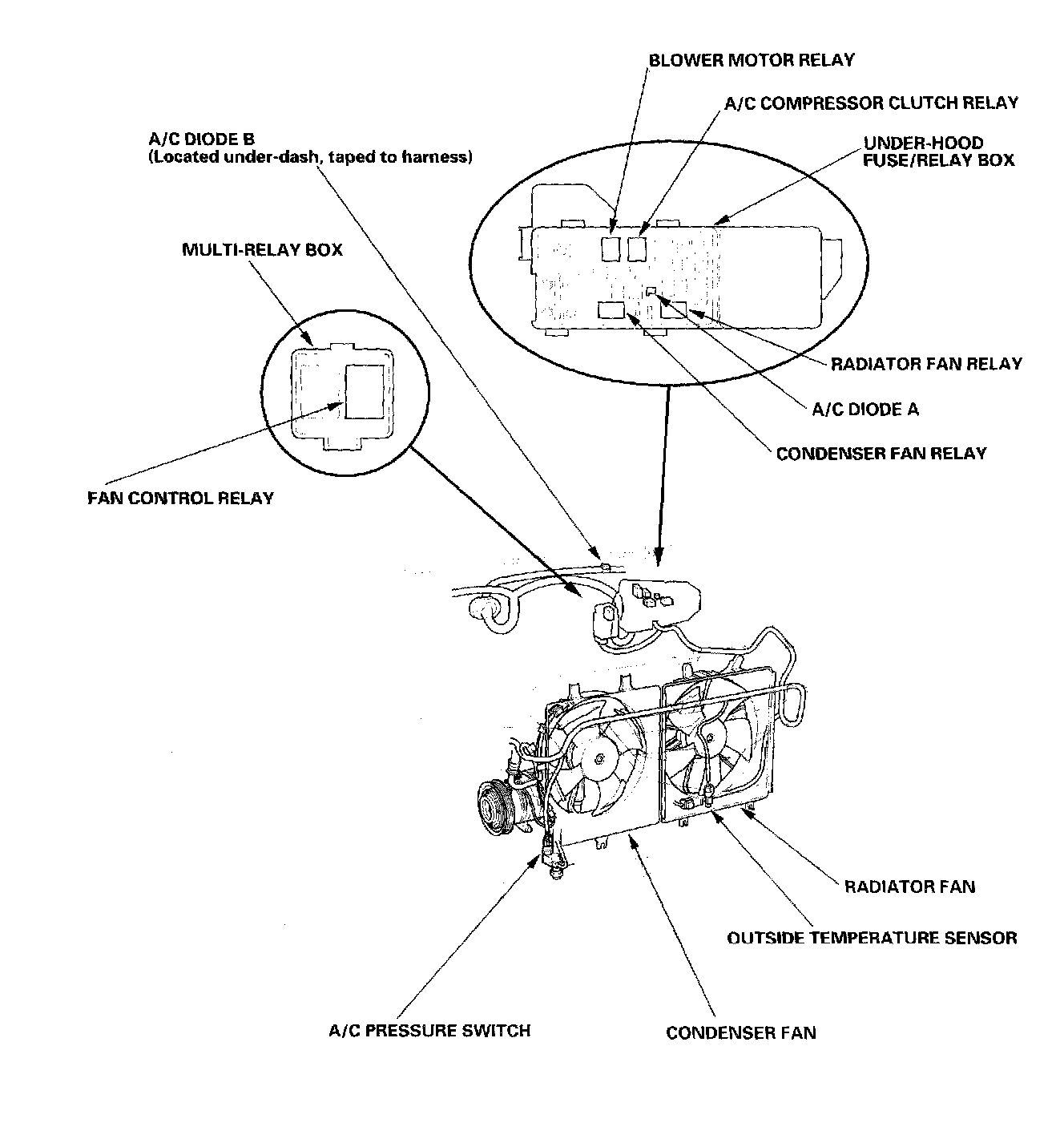

Climate Control - Component Location Index:



Climate Control - Component Location Index:



Climate Control - Component Location Index:

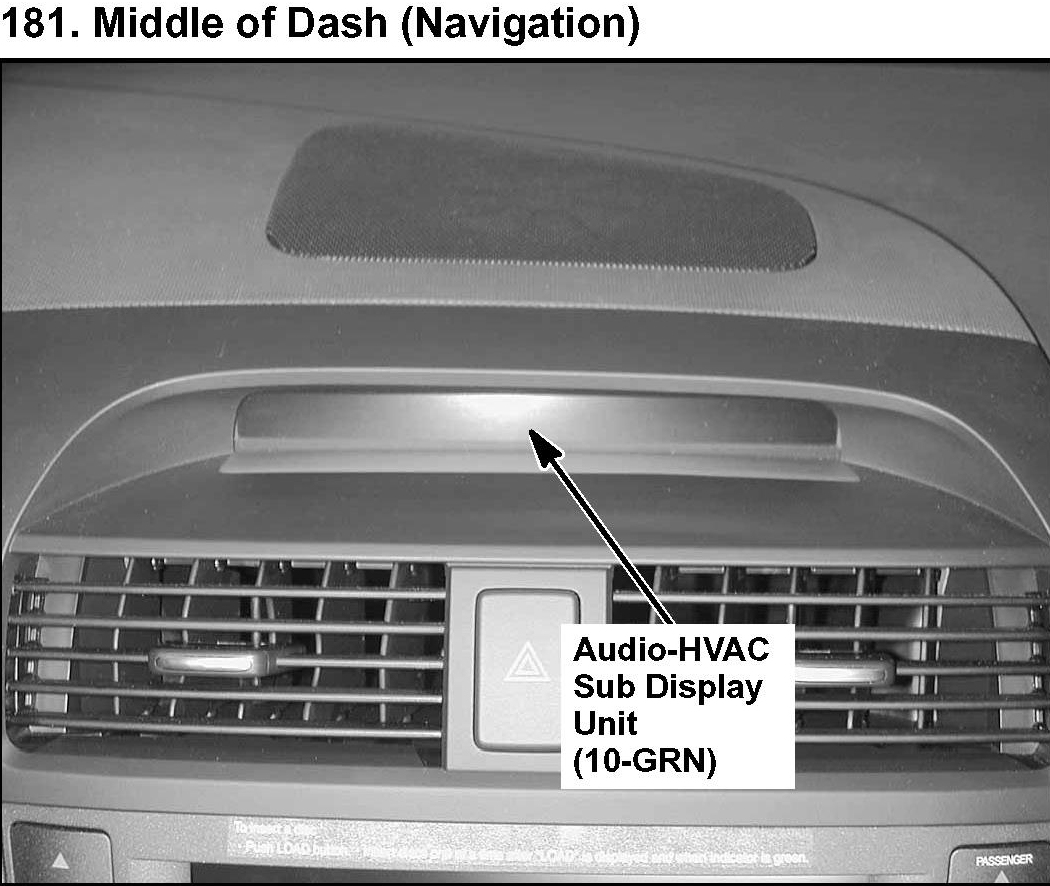

181. Middle Of Dash (Navigation):
