Acura
>>
2004
>>
TL V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
Transmission Disassembly
Transmission Disassembly
Transmission Disassembly
Exploded View - Clutch Housing

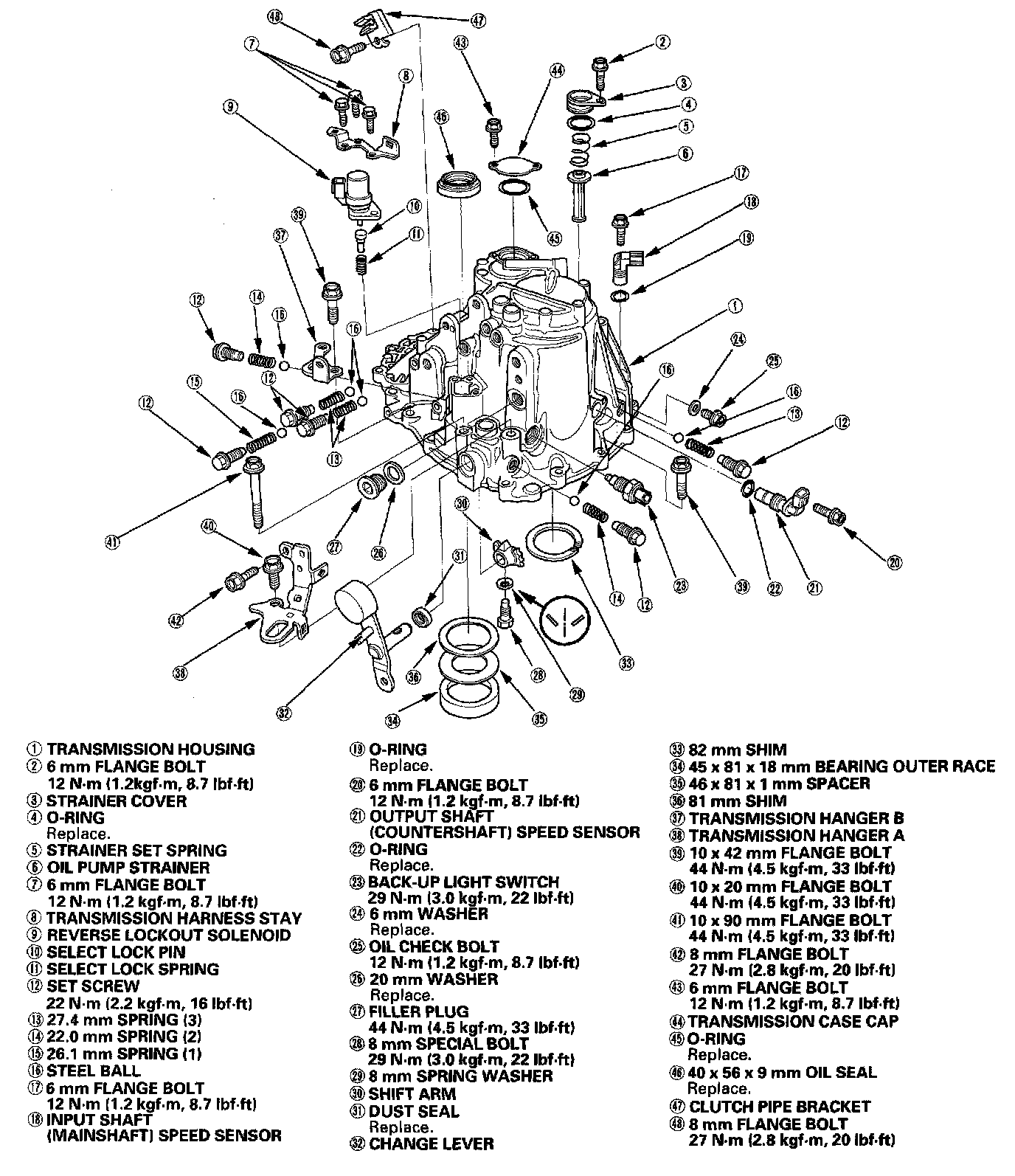

Exploded View - Transmission Housing
