Clutch Switch: Testing and Inspection

Clutch Interlock Switch Test




1. Disconnect the clutch interlock switch 2P connector.

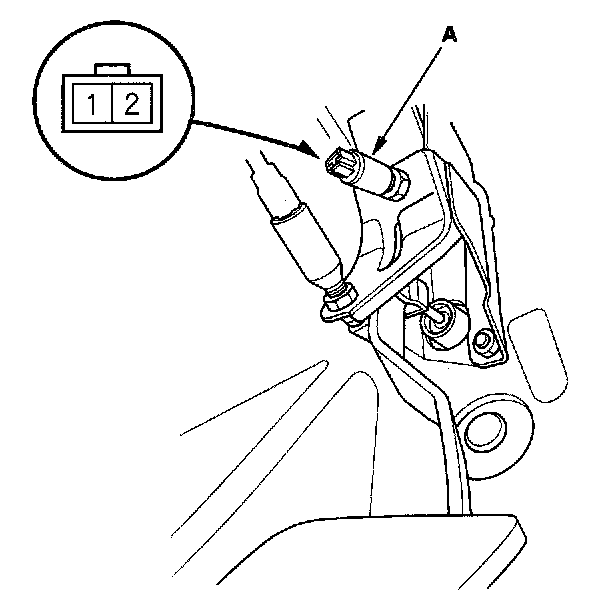

2. Remove the clutch interlock switch (A).

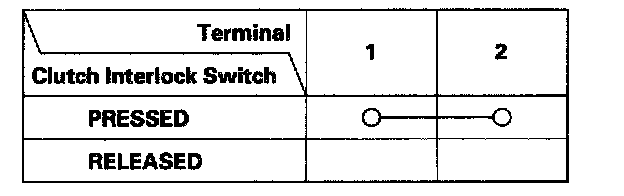

3. Check for continuity between the terminals according to the table.
4. If necessary, replace the switch or adjust the clutch pedal height.
