Home >> Acura >> 2004 >> RSX L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations

Power and Ground Distribution: Locations

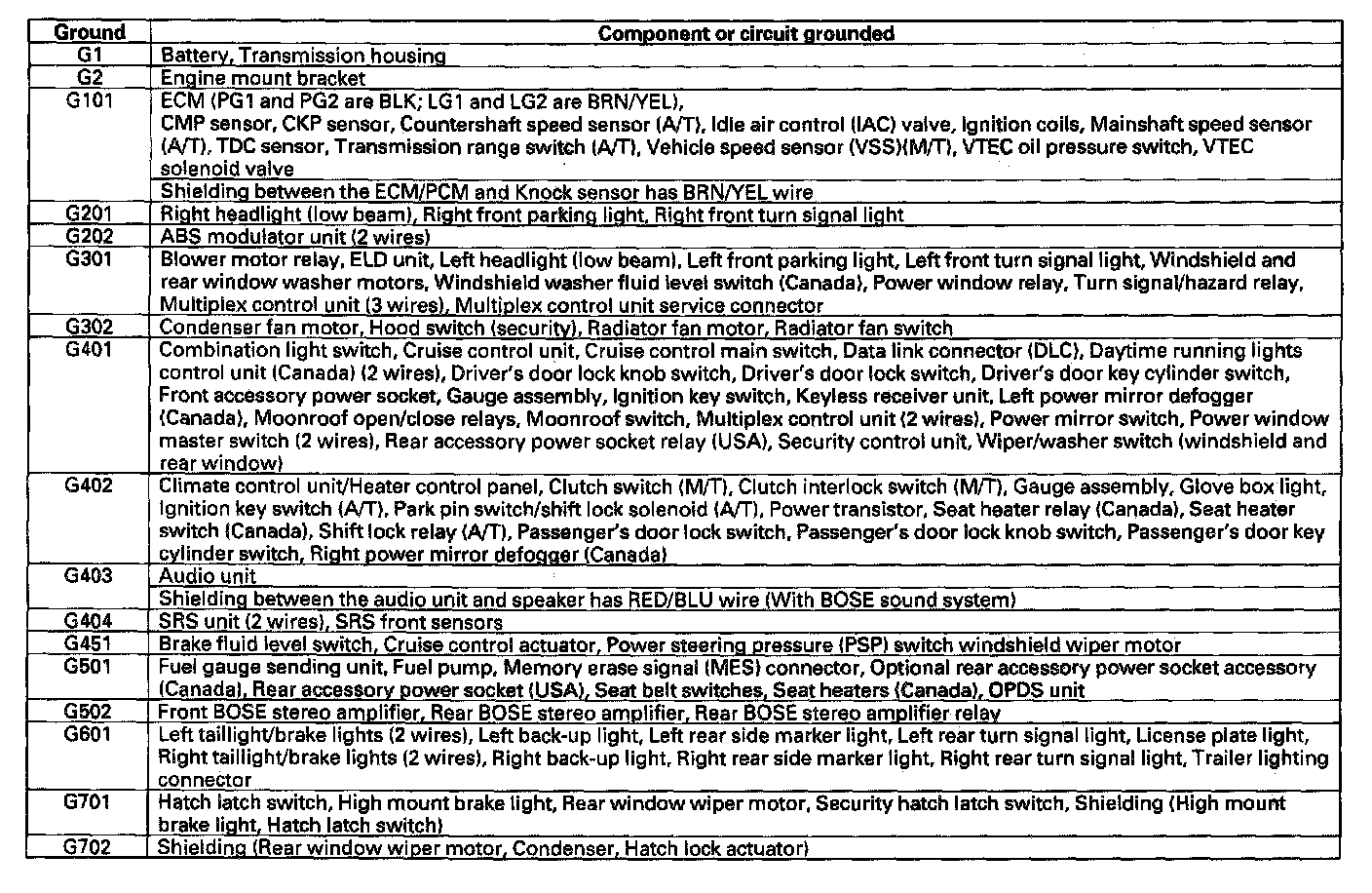

Ground To Component Index (G1 - G702):
