Park Pin Switch Replacement

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the transmission gear selection switch/park pin switch connector (A), then remove it from the shift lever bracket base.

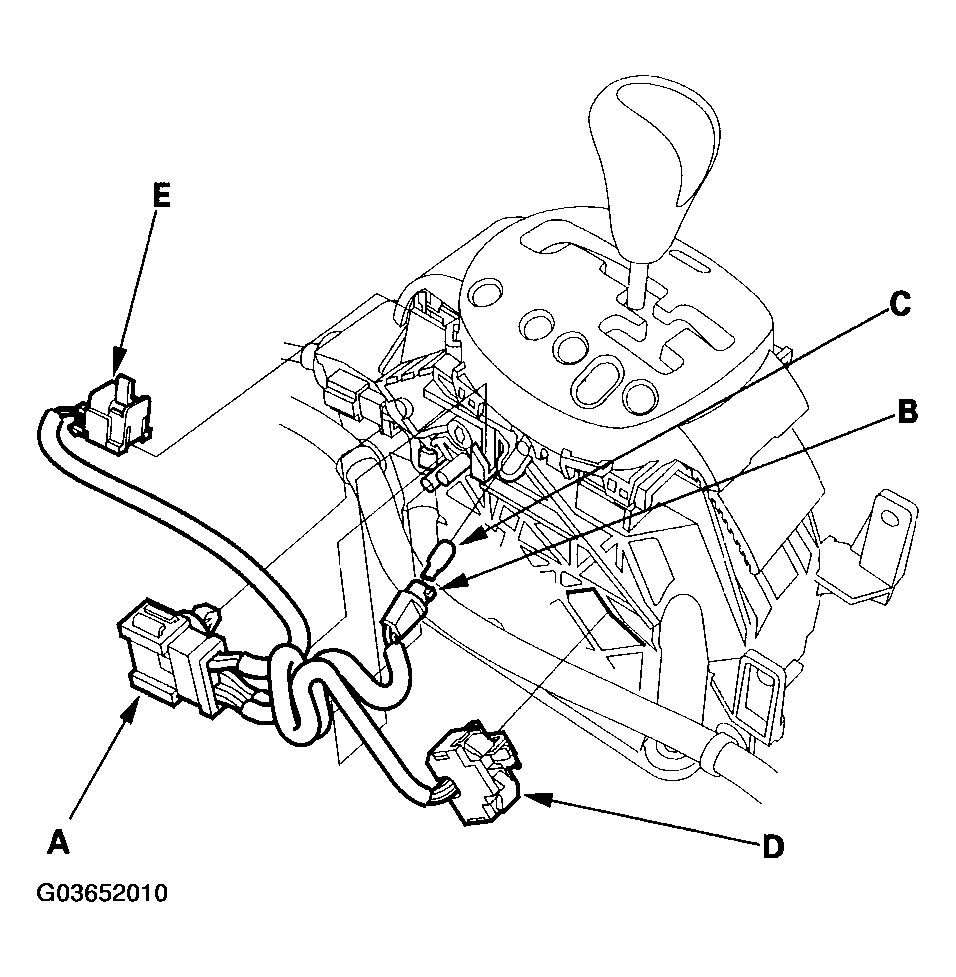

    Fig 1: Disconnecting Transmission Gear Selection Switch/Park Pin Switch Connector
    G03652010Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the A/T gear position indicator panel light socket (B), then remove the indicator light bulb (C) from the socket.
  4. Remove the transmission gear selection switch (D) and park pin switch (E), and install the new switches and connector.
  5. Install the A/T gear position indicator panel light bulb in the bulb socket, then install the socket in the A/T gear position indicator panel.
  6. Connect the transmission gear selection switch/park pin switch connector.
  7. Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
