Circuit Data

TPMS System Description

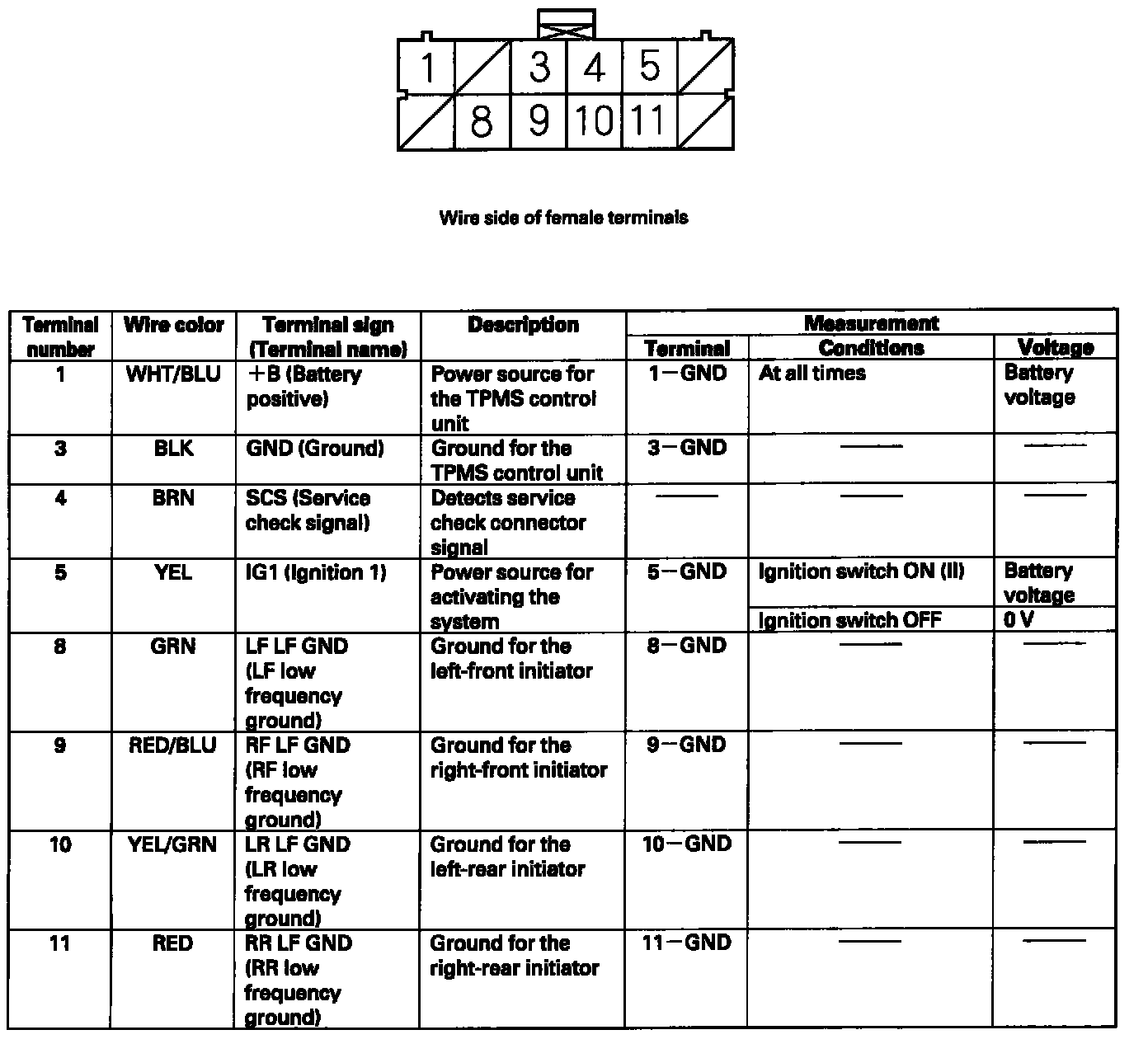

TPMS control Unit Inputs and Outputs for Connector A (12P)

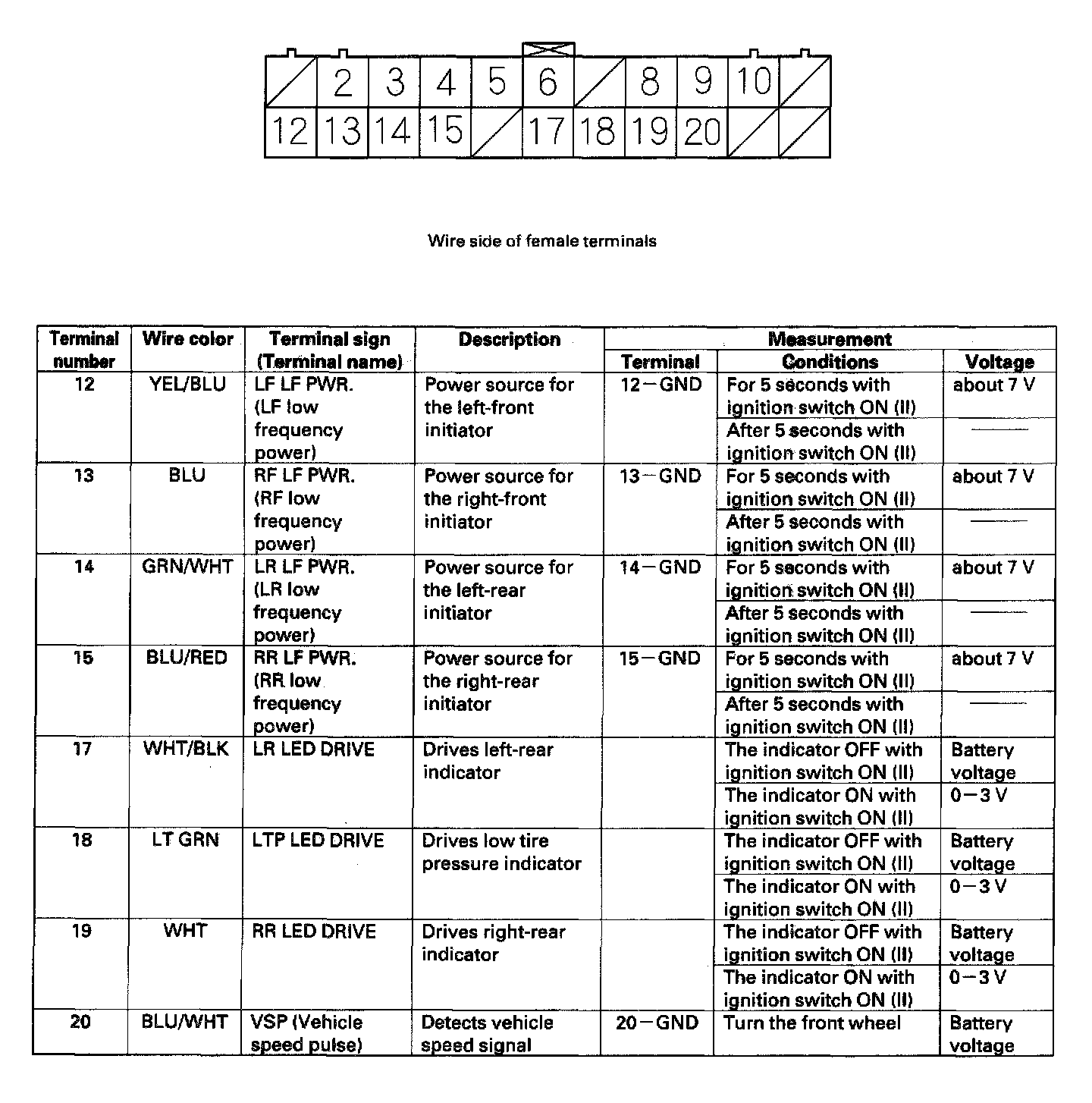

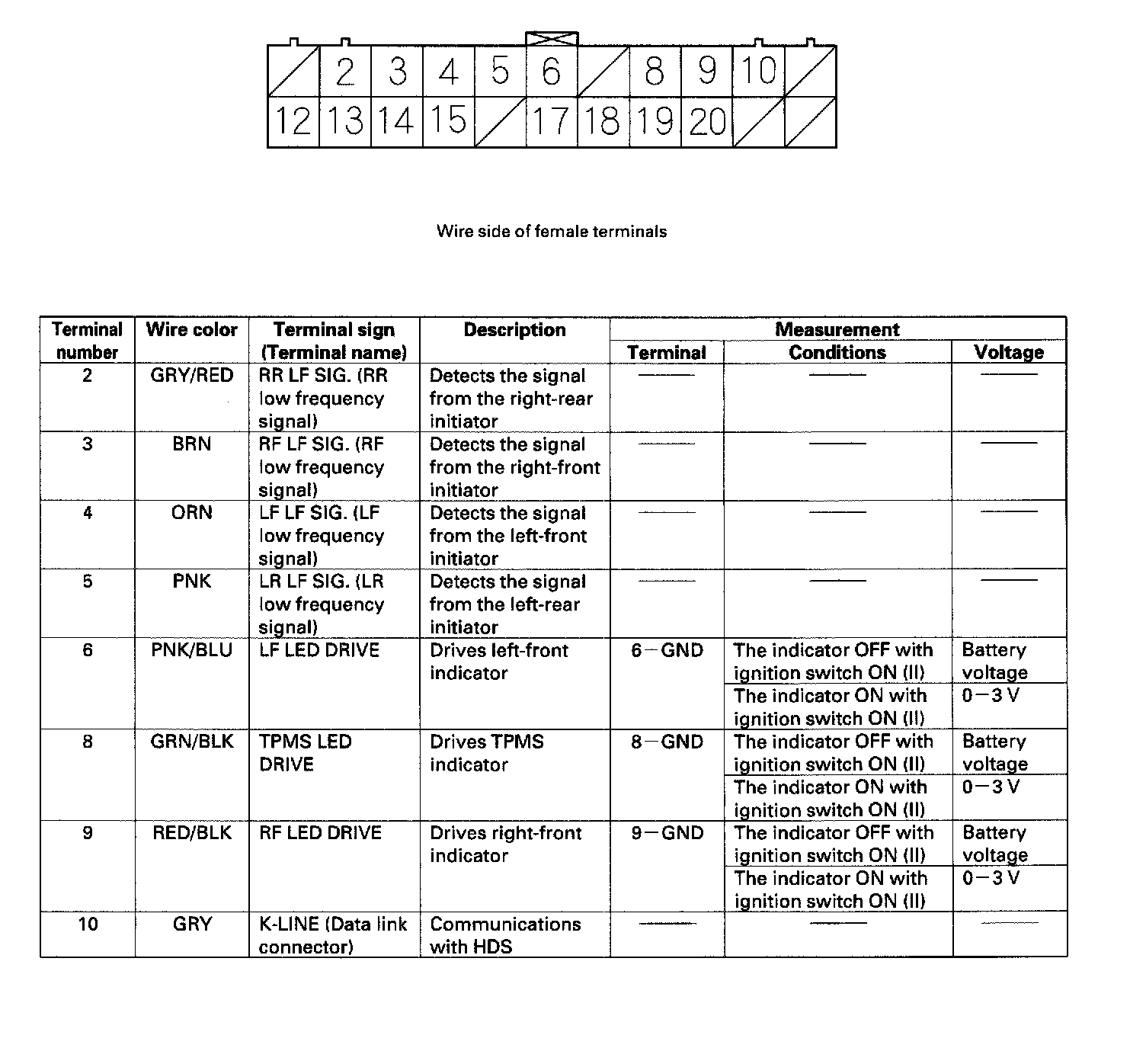

TPMS control Unit Inputs and Outputs for Connector B (22P)
