Home >> Acura >> 2004 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Locations

Power Seat Control Module: Locations

Relay And Control Unit Locations - Seats (Driver's Seat):

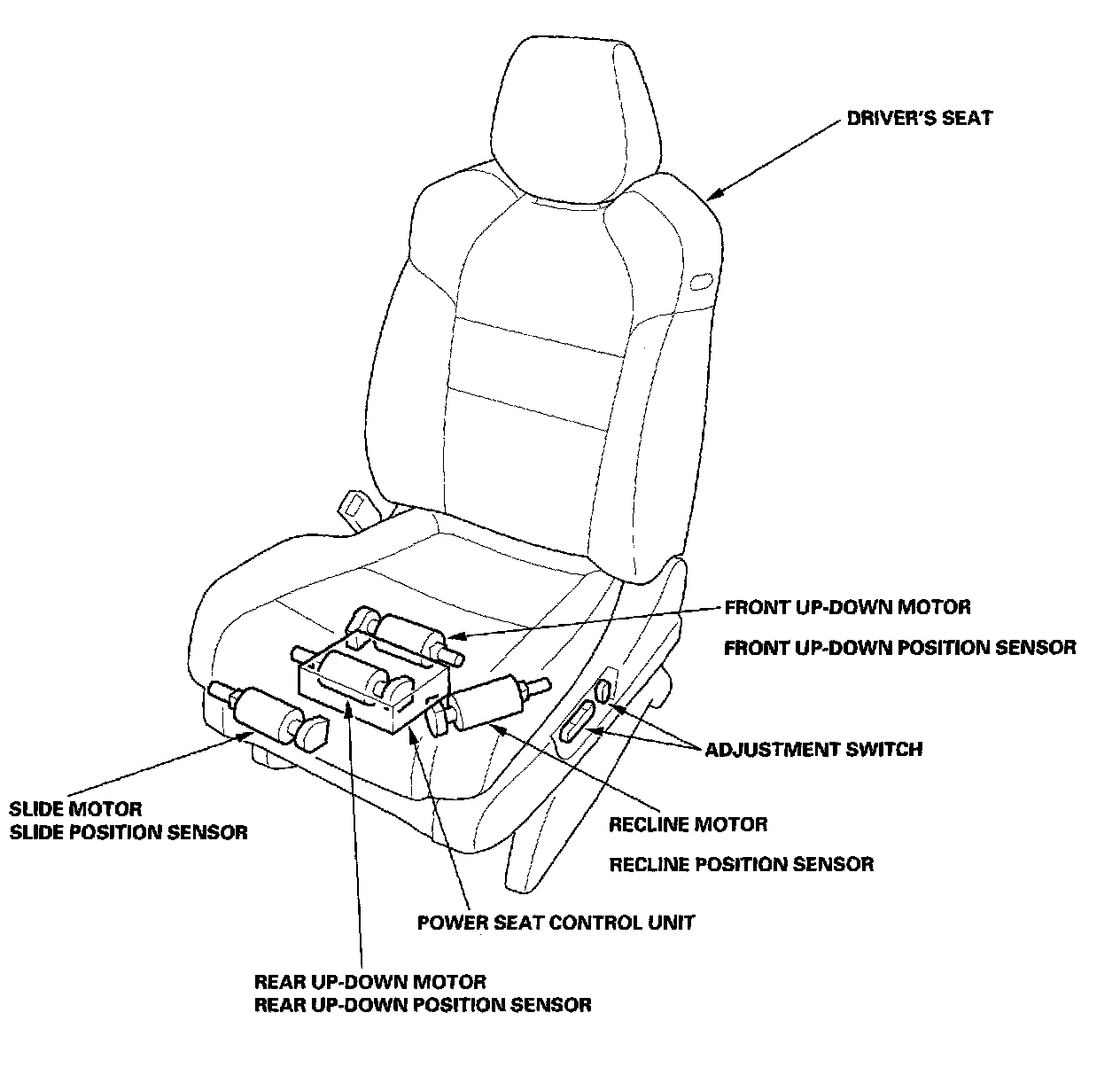

Driving Position Memory System (DPMS) Component Location Index:

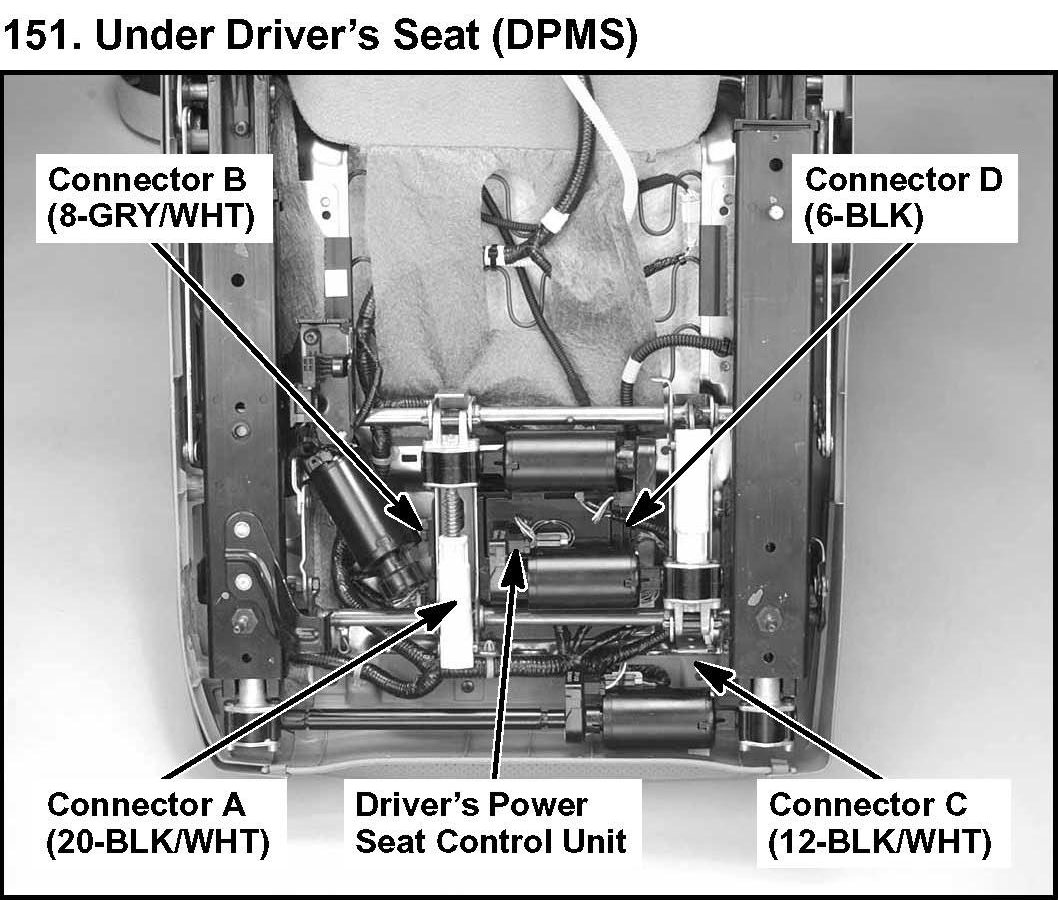

151. Under Driver's Seat (DPMS):
