Home >> Acura >> 2004 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations

Navigation Module: Locations

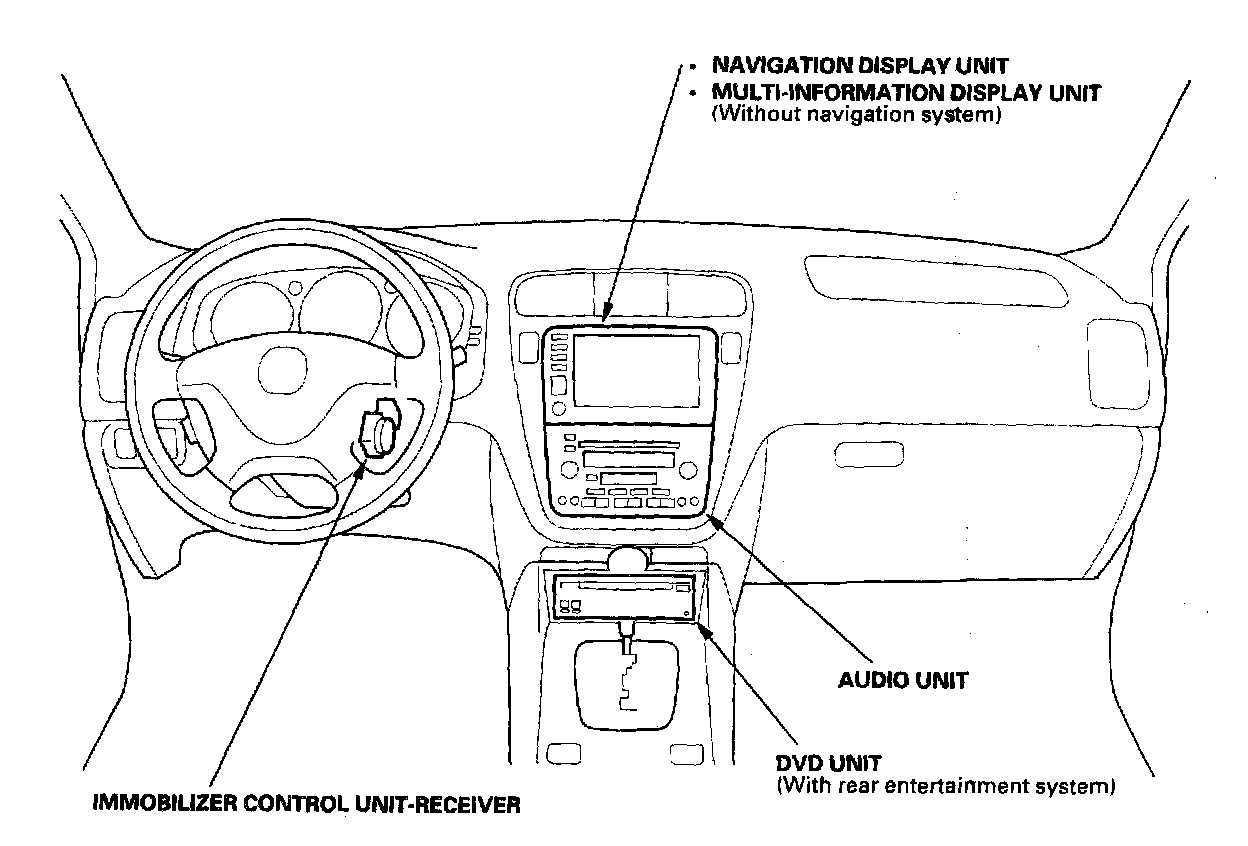

Relay And Control Unit Locations - Dashboard:



Relay And Control Unit Locations - Seats (Passenger's Seat):

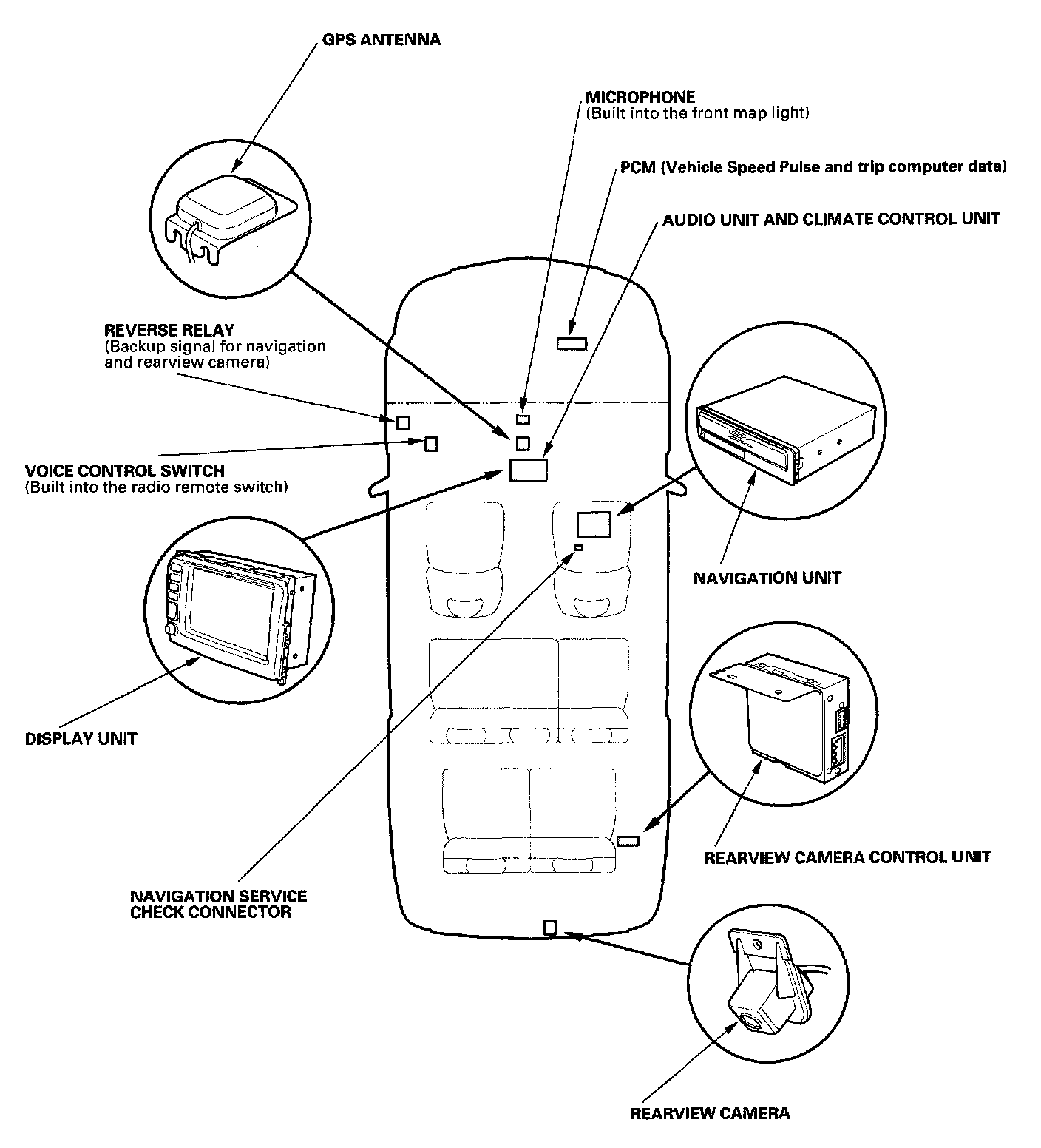

Navigation System Component Location Index:



139. Under Front Passenger's Seat ('03-'04: Navigation):
