Front Bank (Bank 2)

  1. Disconnect the front A/F sensor 8P connector (A), then remove the front A/F sensor (B).

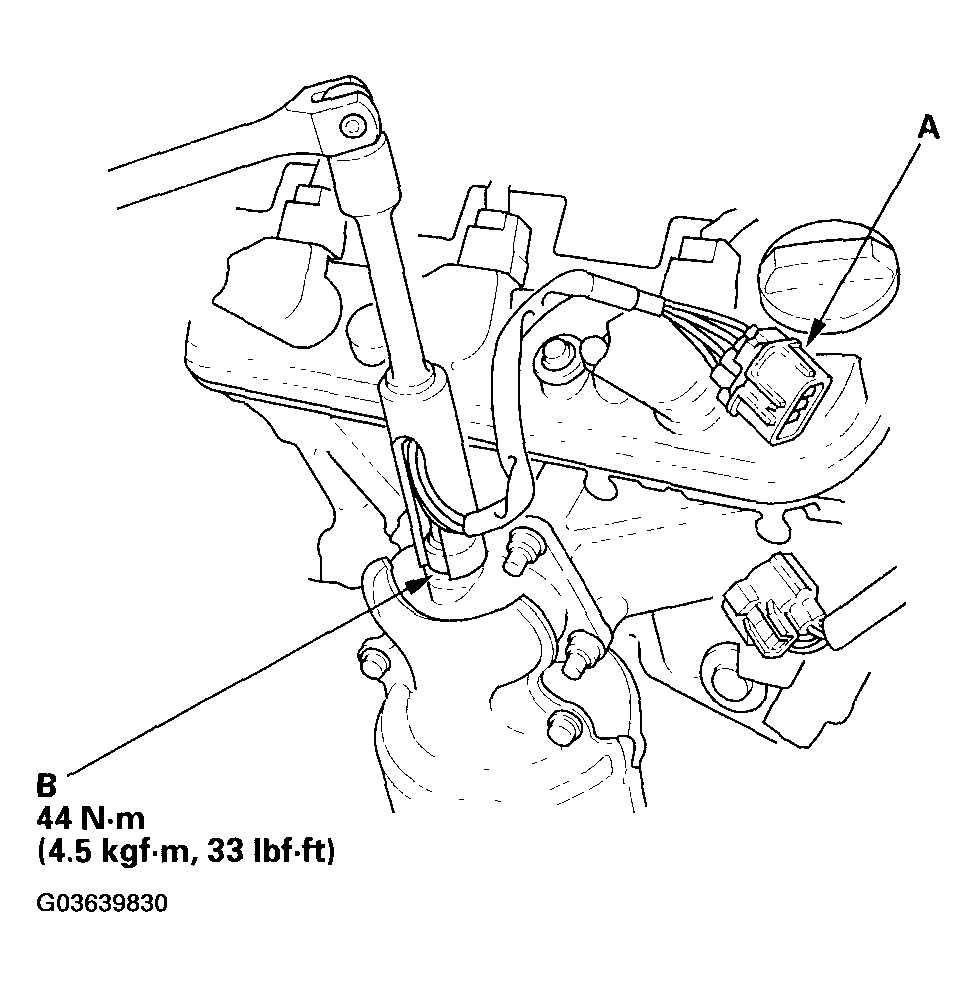

    Fig 1: Disconnecting Front A/F Sensor 8P Connector
    G03639830Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the front A/F sensor in the reverse order of removal.
