Subframe Torque

After removing the subframe mounting bolts and bracket mounting bolts and nuts, be sure to replace them with new ones.

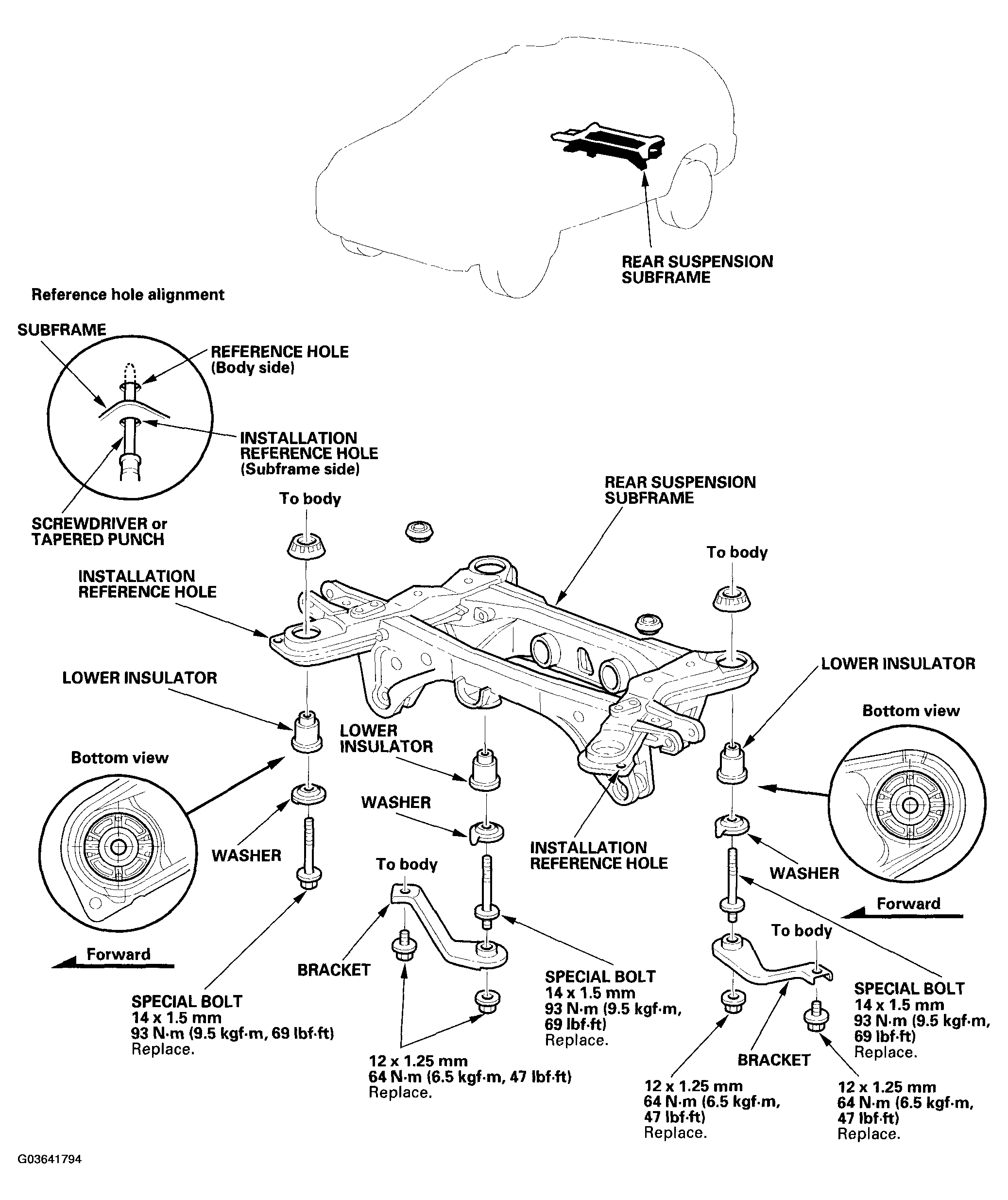

Fig 1: Replacing Rear Subframe
G03641794Courtesy of AMERICAN HONDA MOTOR CO., INC.
