Home >> Acura >> 2003 >> RSX L4-2.0L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

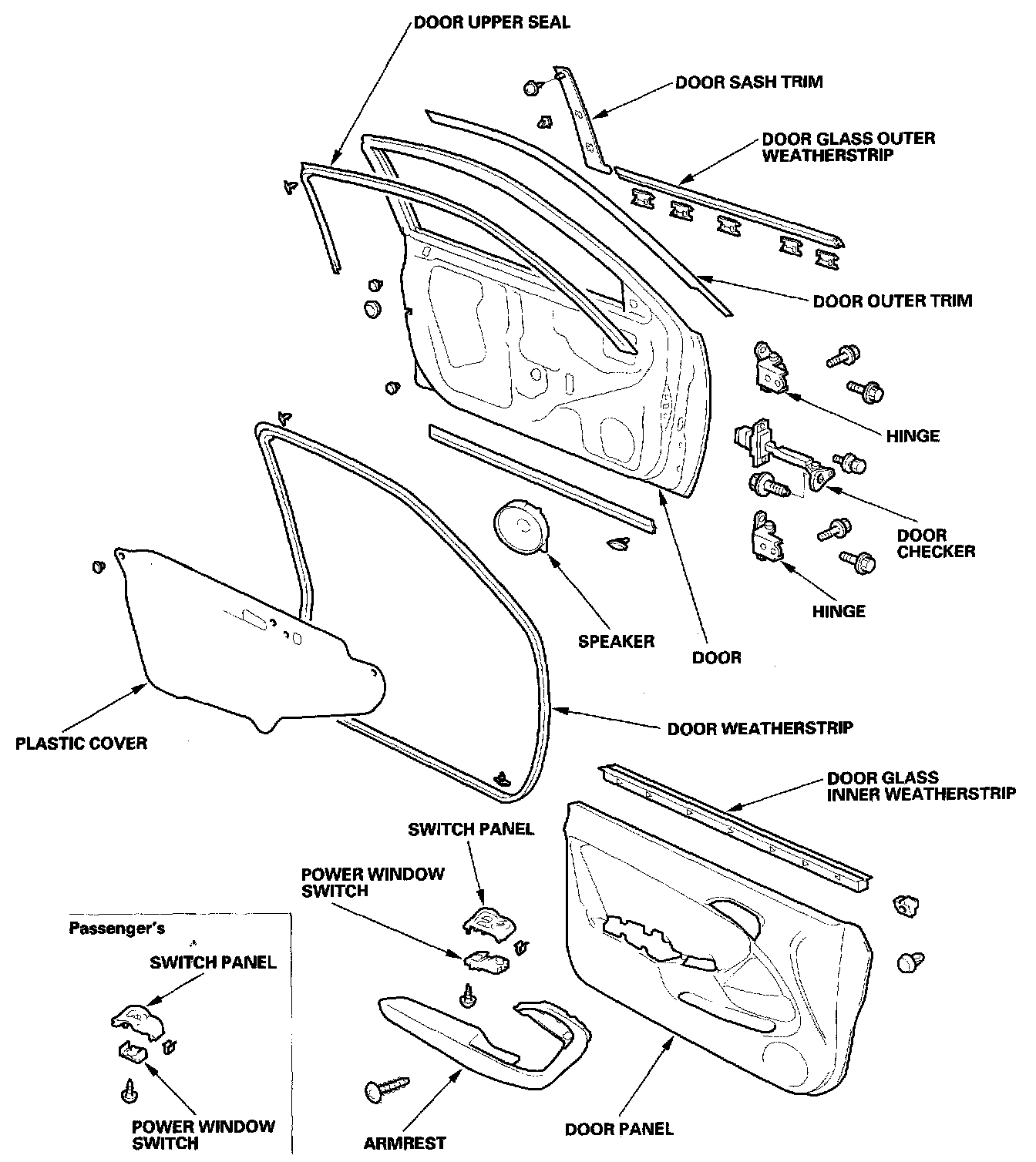

Doors Component Location Index:

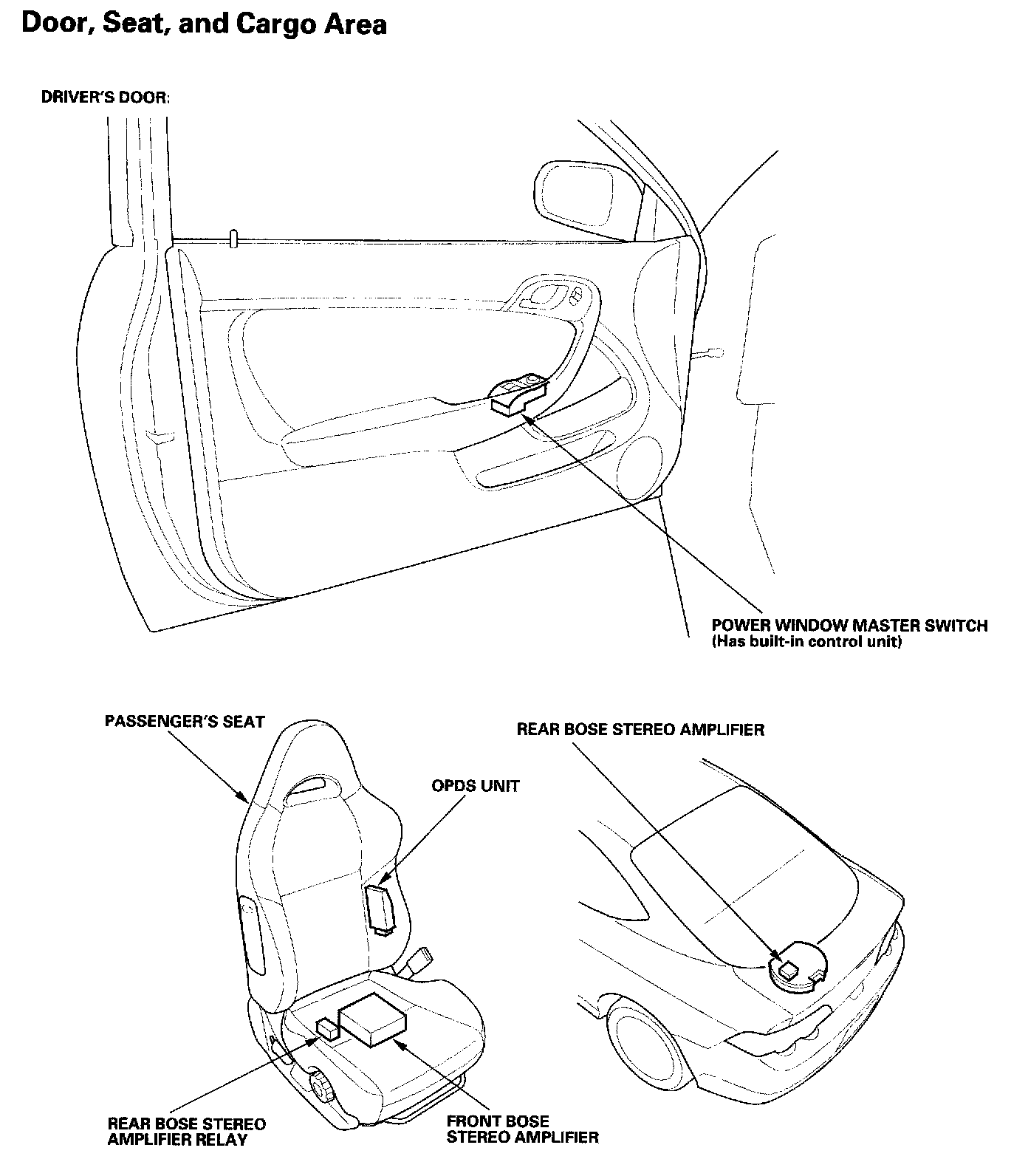

Relay And Control Unit Locations - Door, Seat, And Cargo Area:

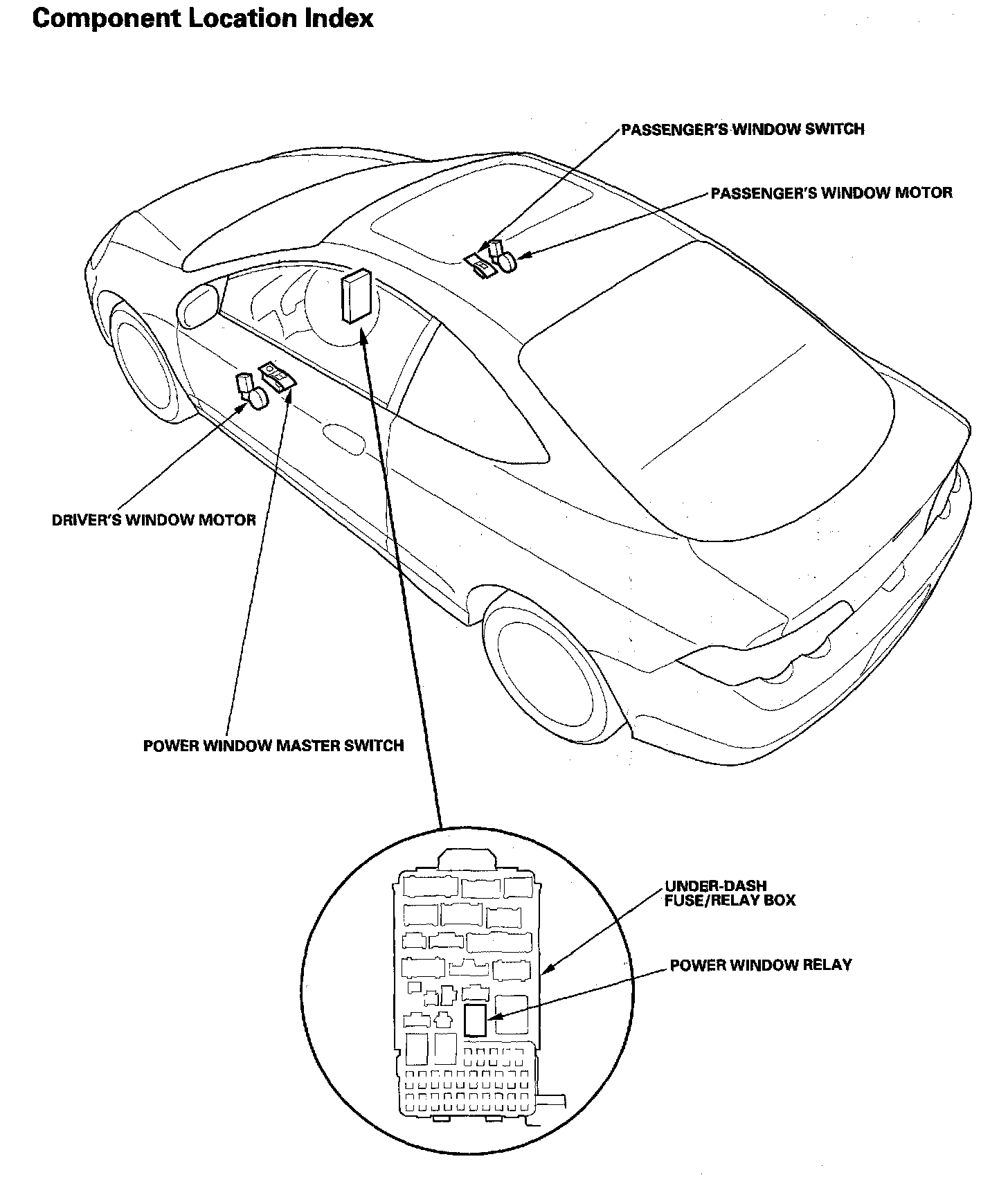

Power Windows - Component Location Index:

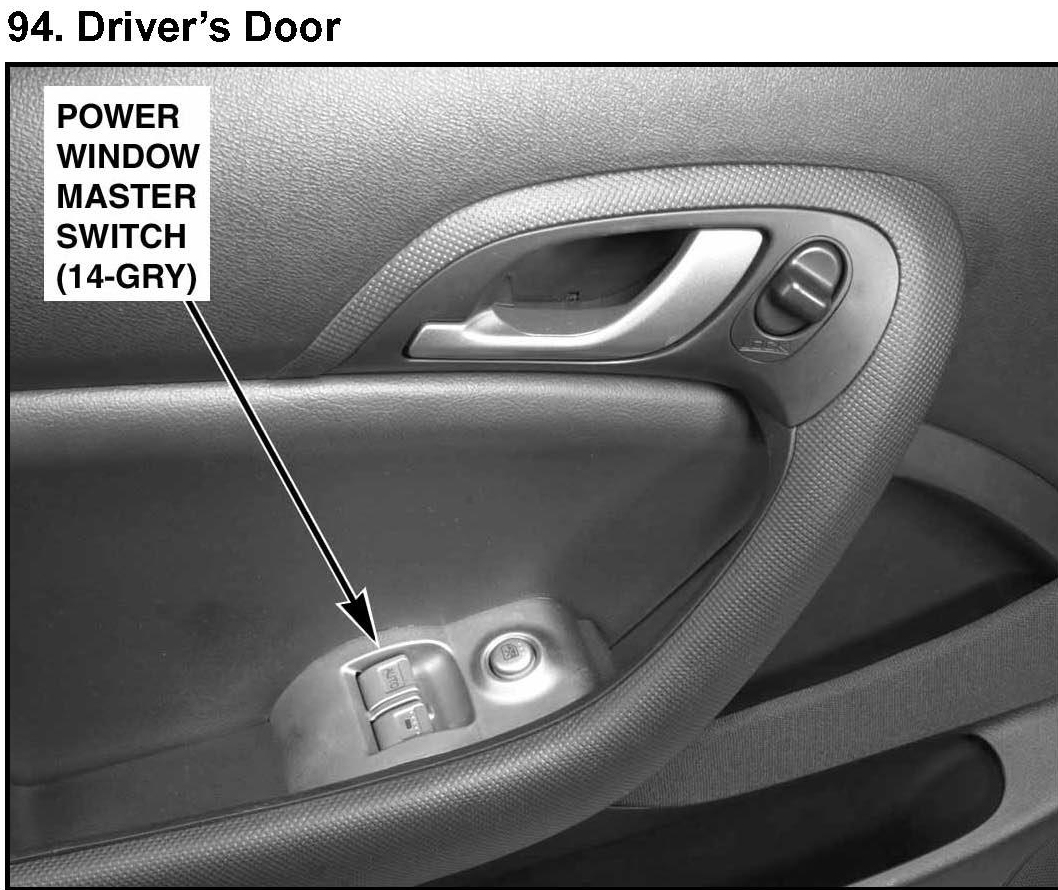

94. Driver's Door:

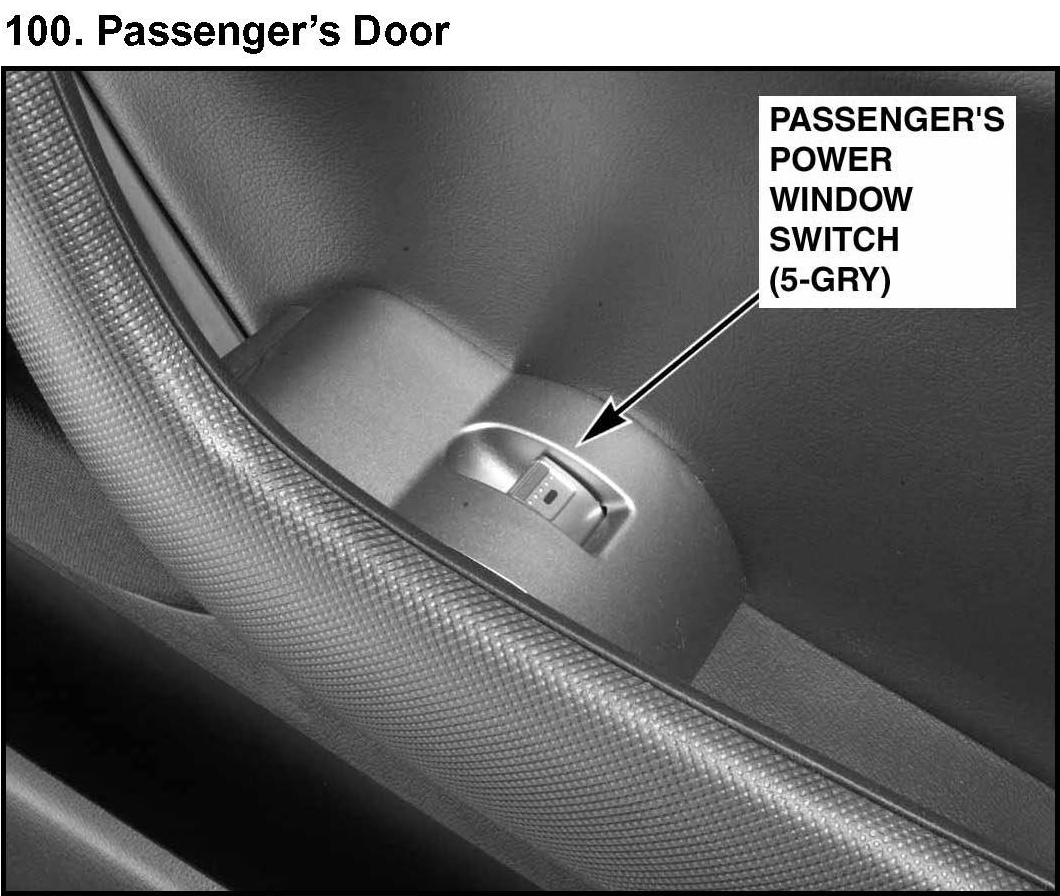

100. Passenger's Door:
