Home >> Acura >> 2003 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Data Link Connector

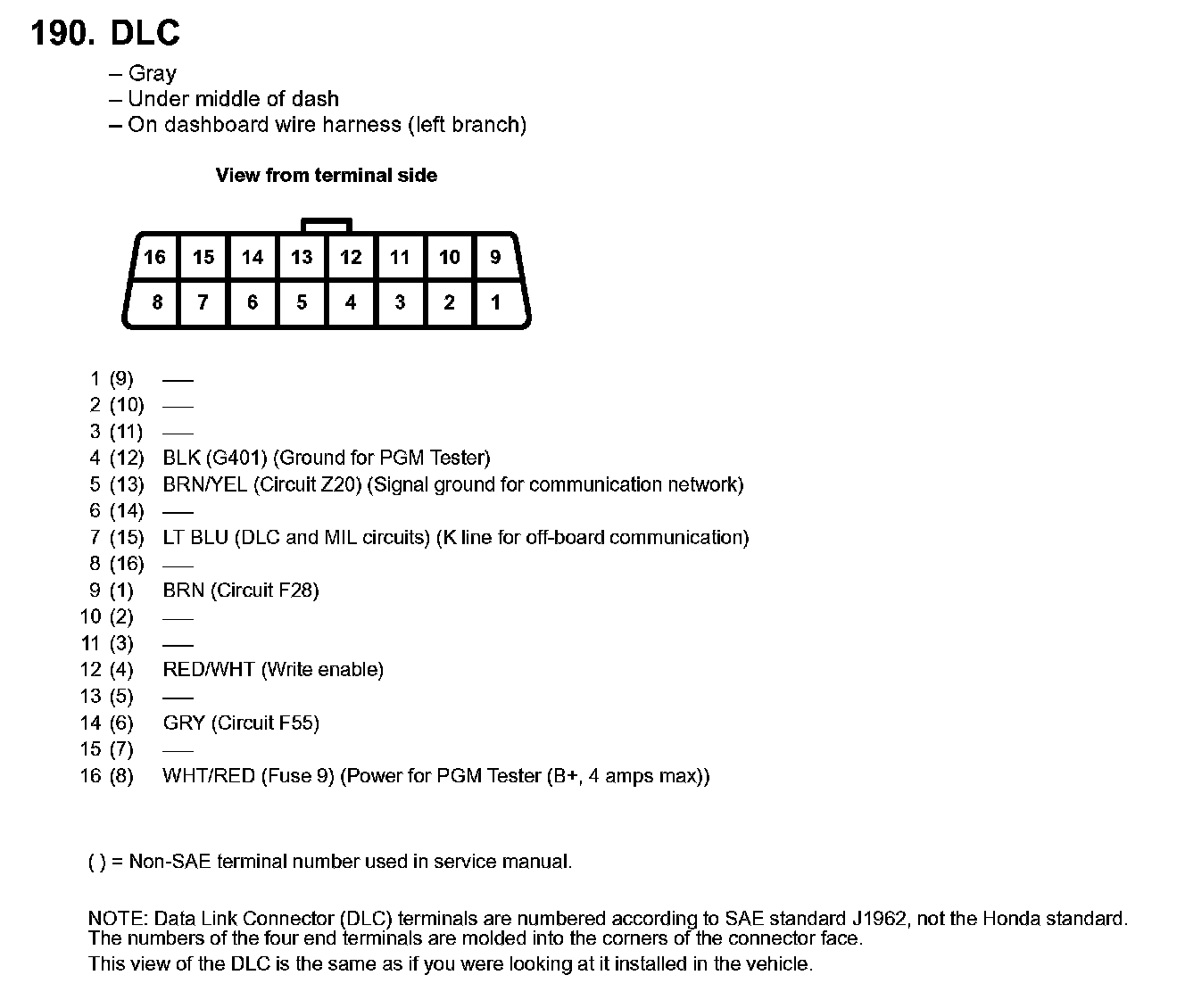

Data Link Connector

190. DLC:
