Home >> Acura >> 2003 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations

Navigation Module: Locations

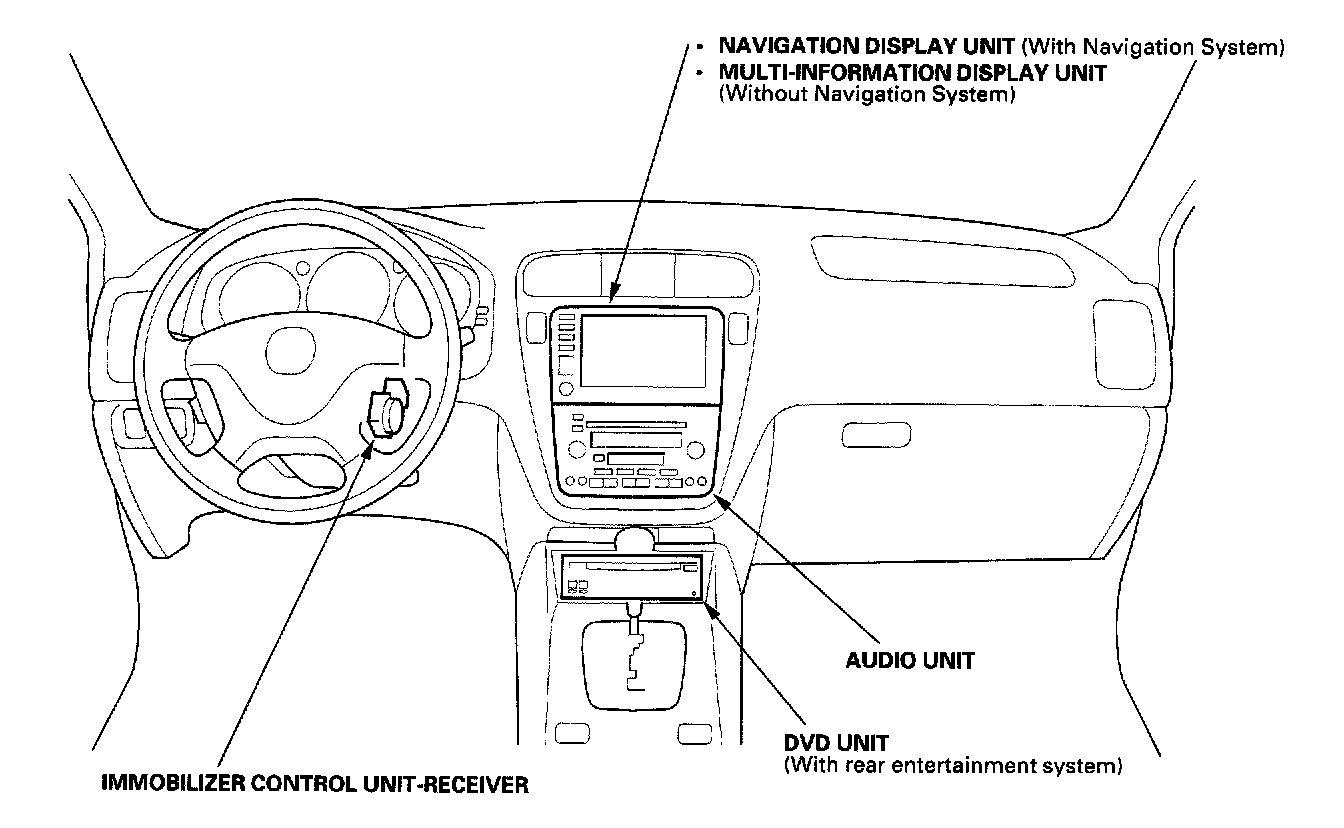

Dashboard - Relay And Control Unit Locations:

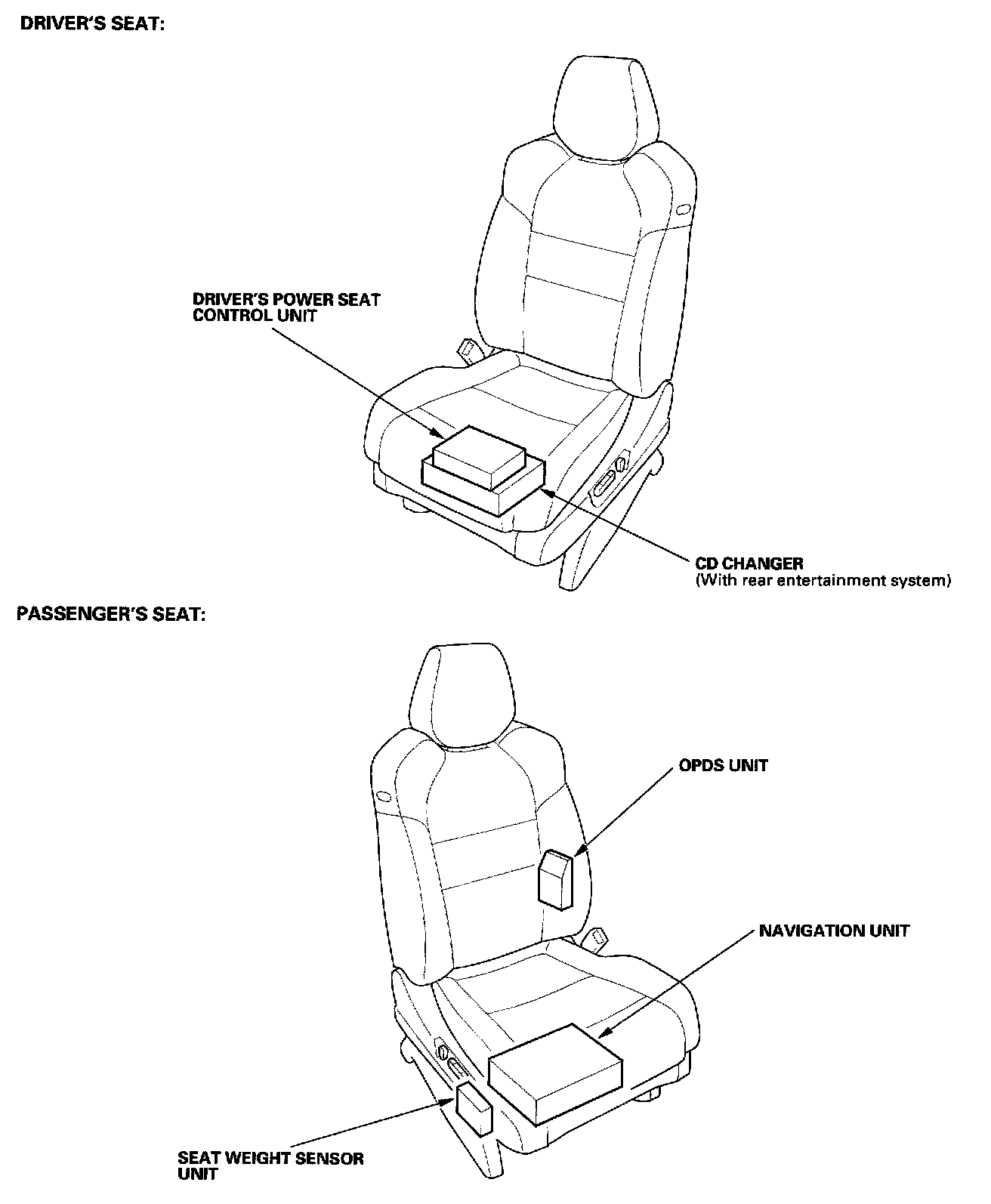

Seats - Relay And Control Unit Locations:

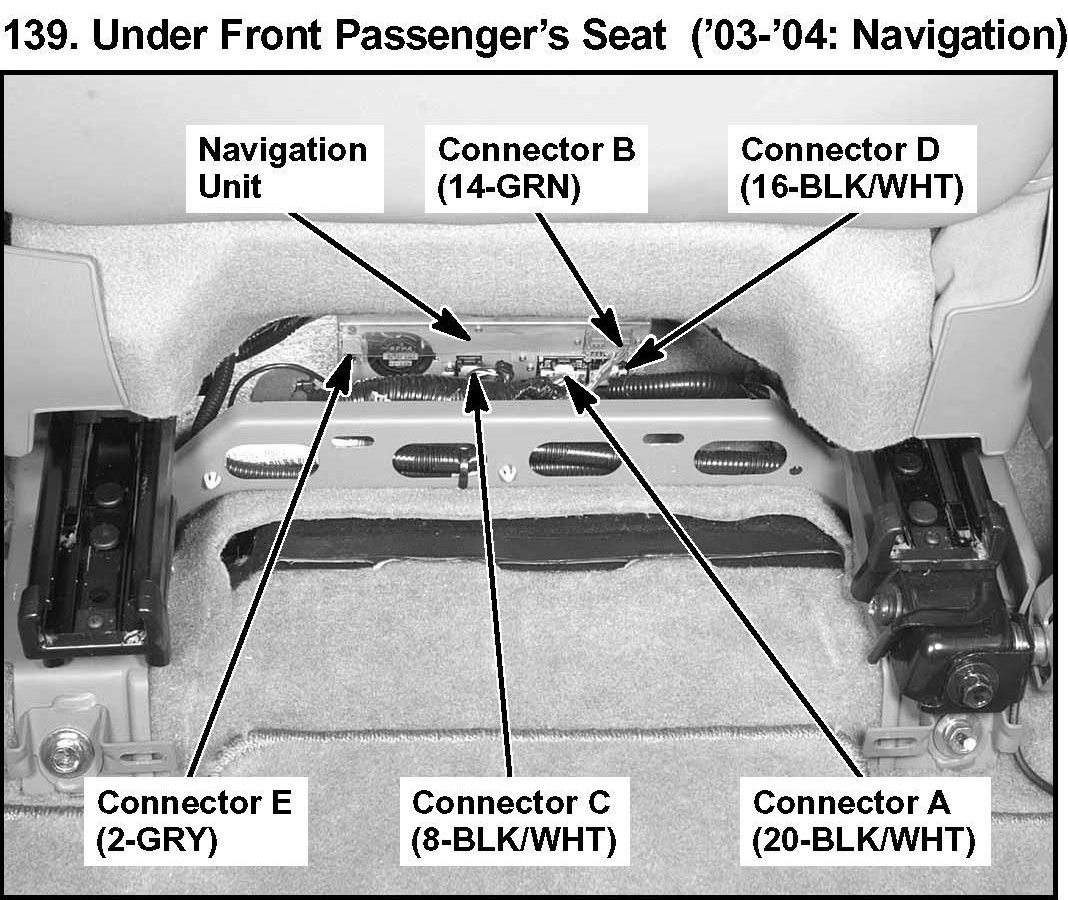

139. Under Front Passenger's Seat ('03-'04: Navigation):
