Circuit Diagram

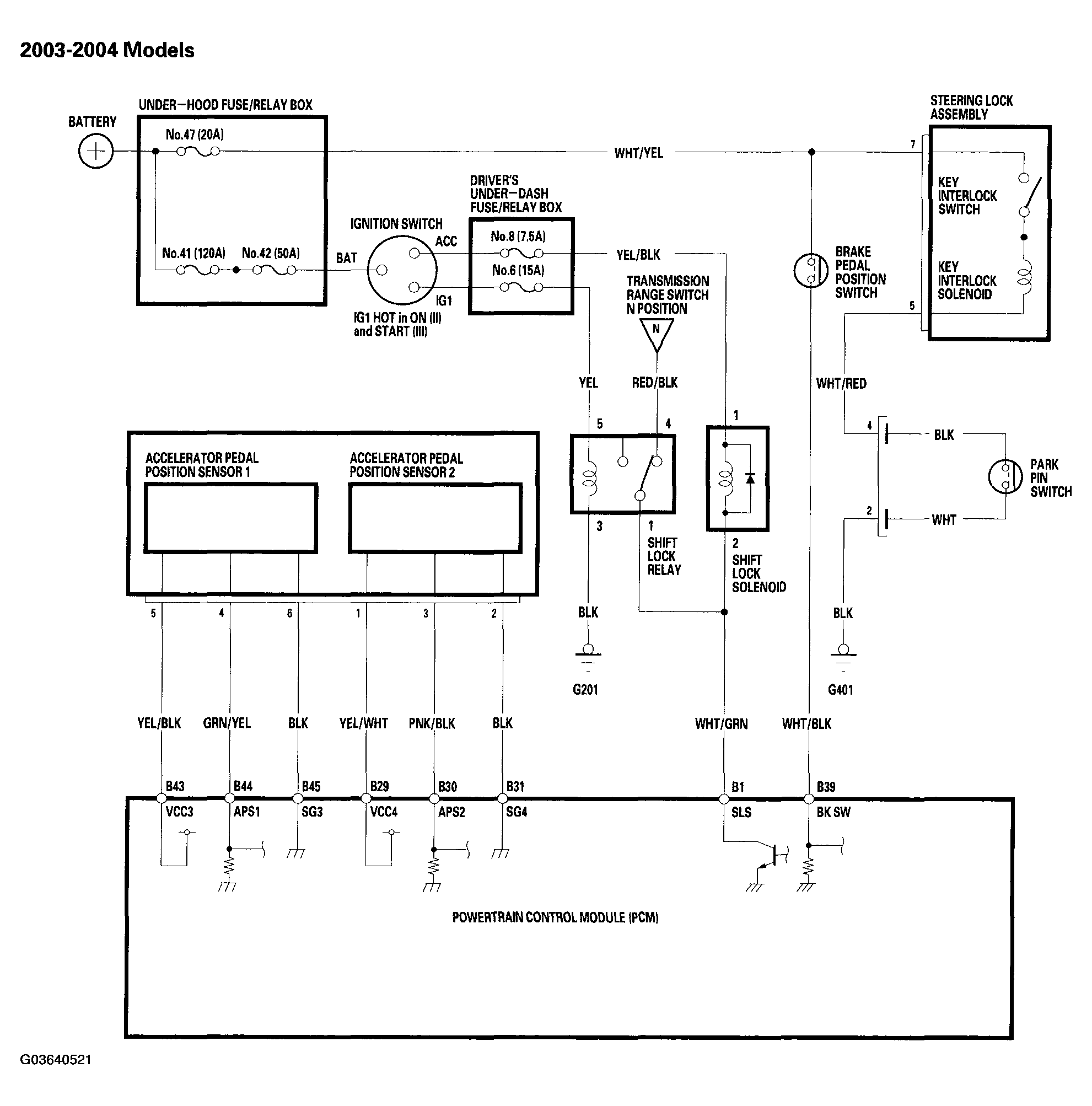

Fig 1: A/T Interlock System Circuit Diagram - 2003-2004 Models
G03640521Courtesy of AMERICAN HONDA MOTOR CO., INC.

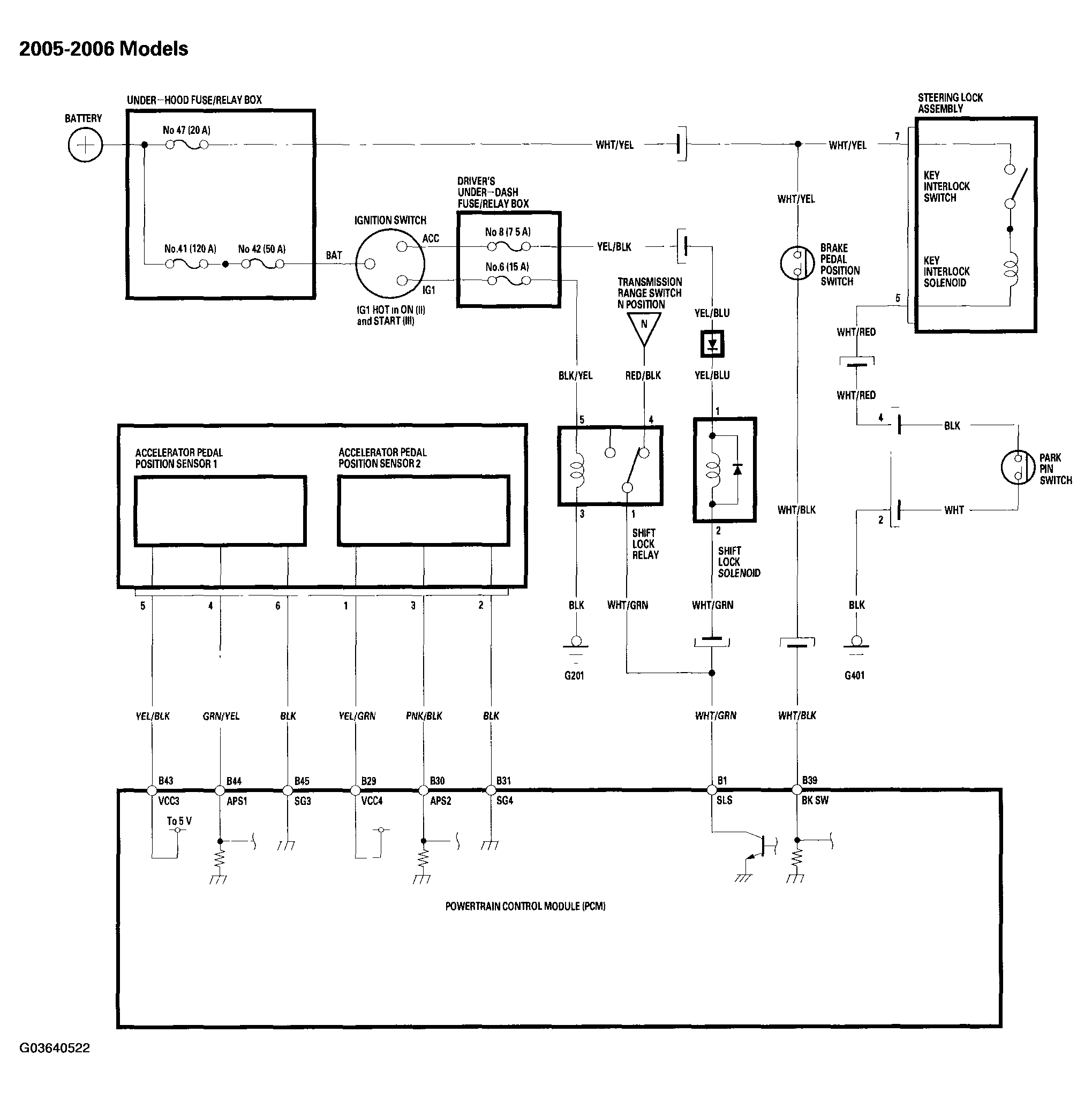

Fig 2: A/T Interlock System Circuit Diagram - 2005-2006 Models
G03640522Courtesy of AMERICAN HONDA MOTOR CO., INC.
