Hood Switch Test

  1. Open the hood.
  2. Disconnect the 2P connector from the hood switch.

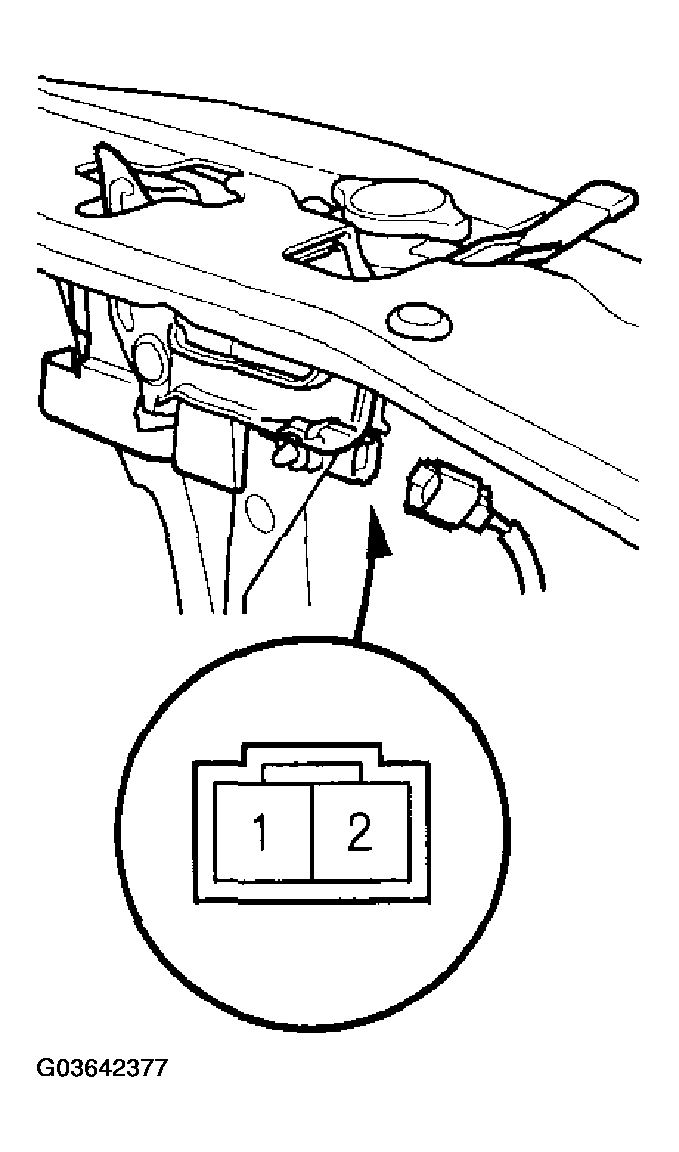

    Fig 1: Disconnecting 2P Connector From Hood Switch
    G03642377Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.
    • There should be continuity between the No. 1 and No. 2 terminals when the hood is opened (lever released).
    • There should be no continuity between the No. 1 and No. 2 terminals when the hood is closed (lever pushed down).
  4. If the continuity is not as specified, replace the switch.
