Component Location Index

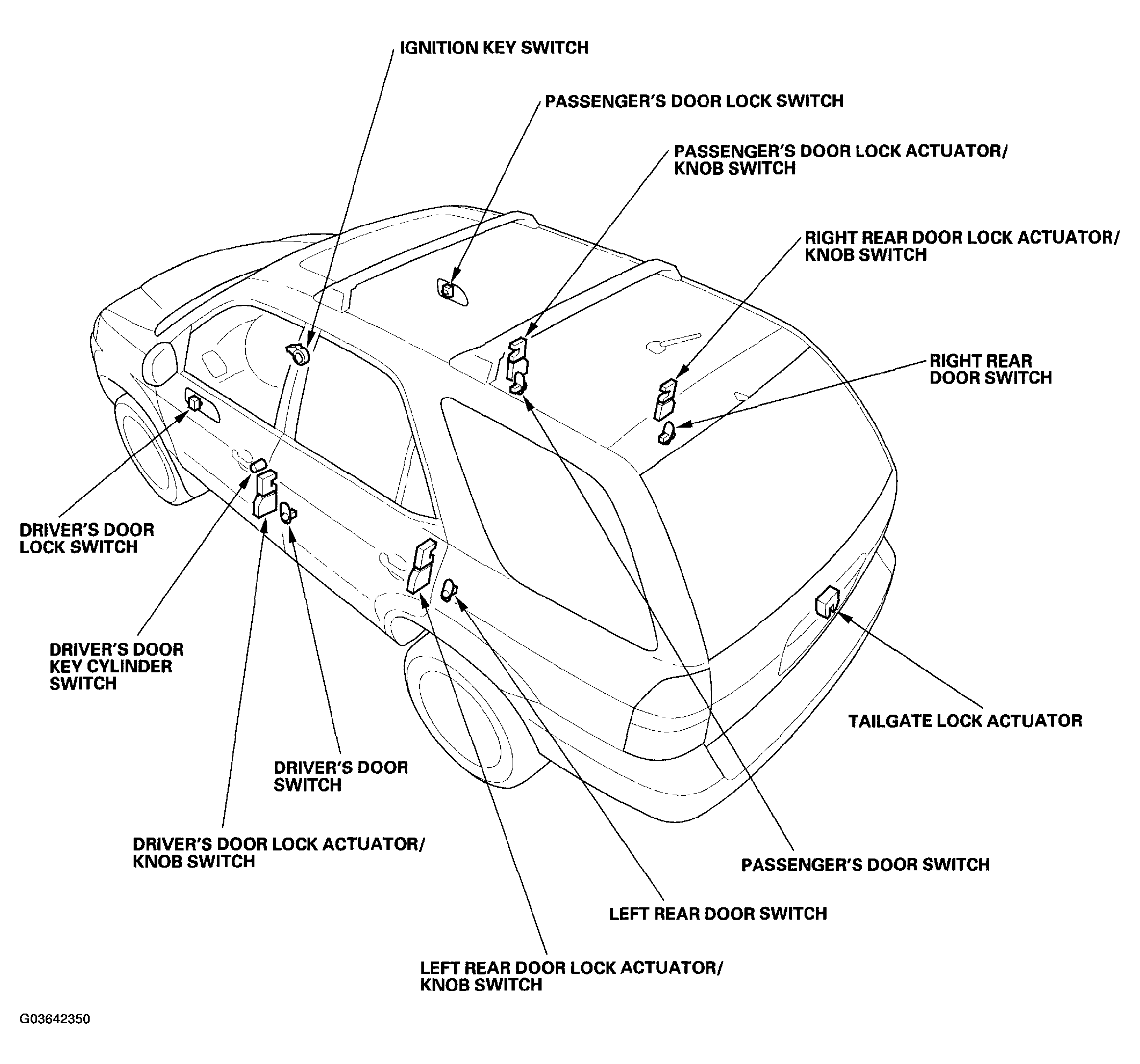

Fig 1: Identifying Keyless/Power Door Locks/Security System Components Location
G03642350Courtesy of AMERICAN HONDA MOTOR CO., INC.

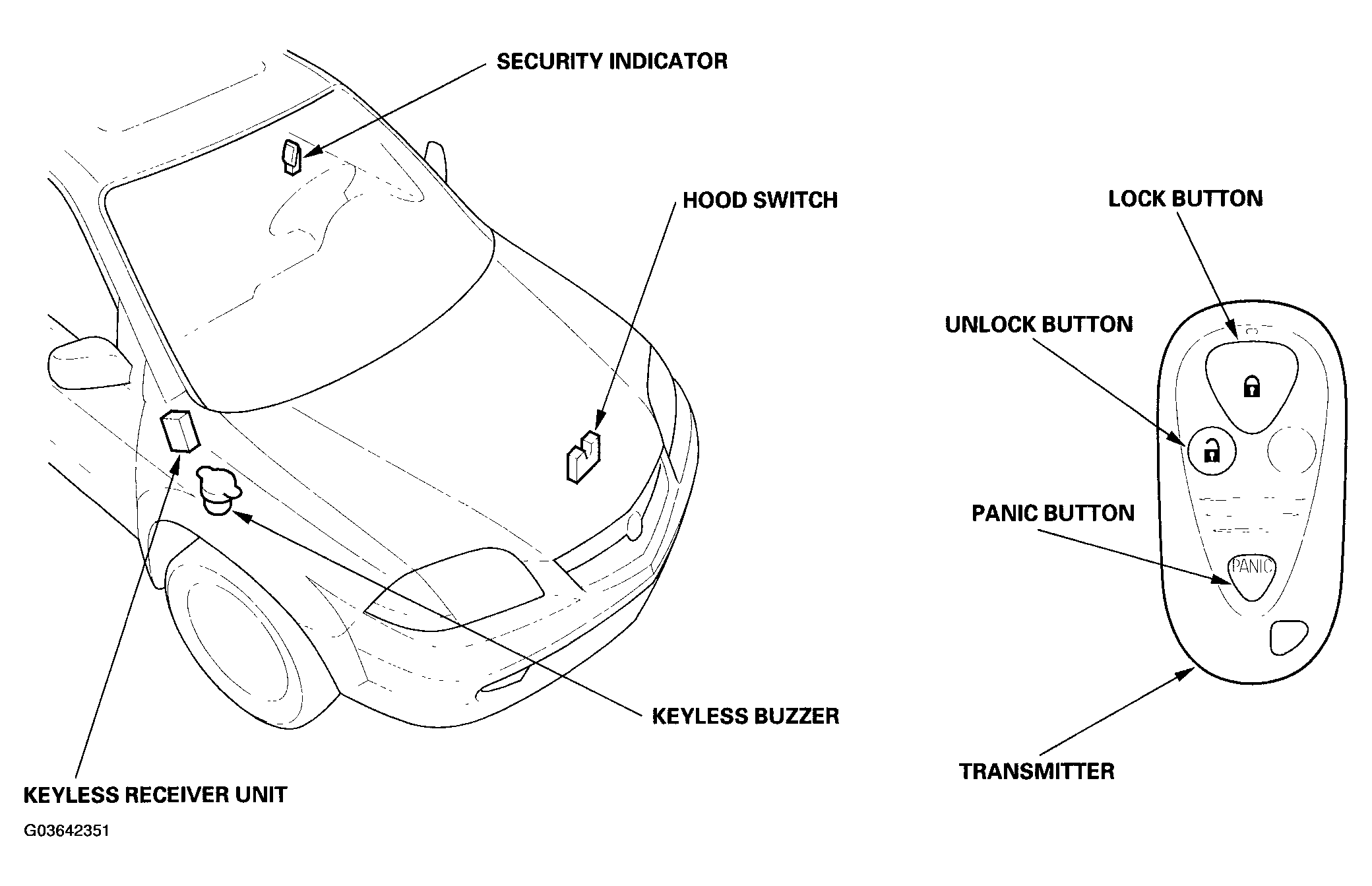

Fig 2: Identifying Keyless/Power Door Locks/Security System Components Location
G03642351Courtesy of AMERICAN HONDA MOTOR CO., INC.
