Oxygen Sensor: Locations

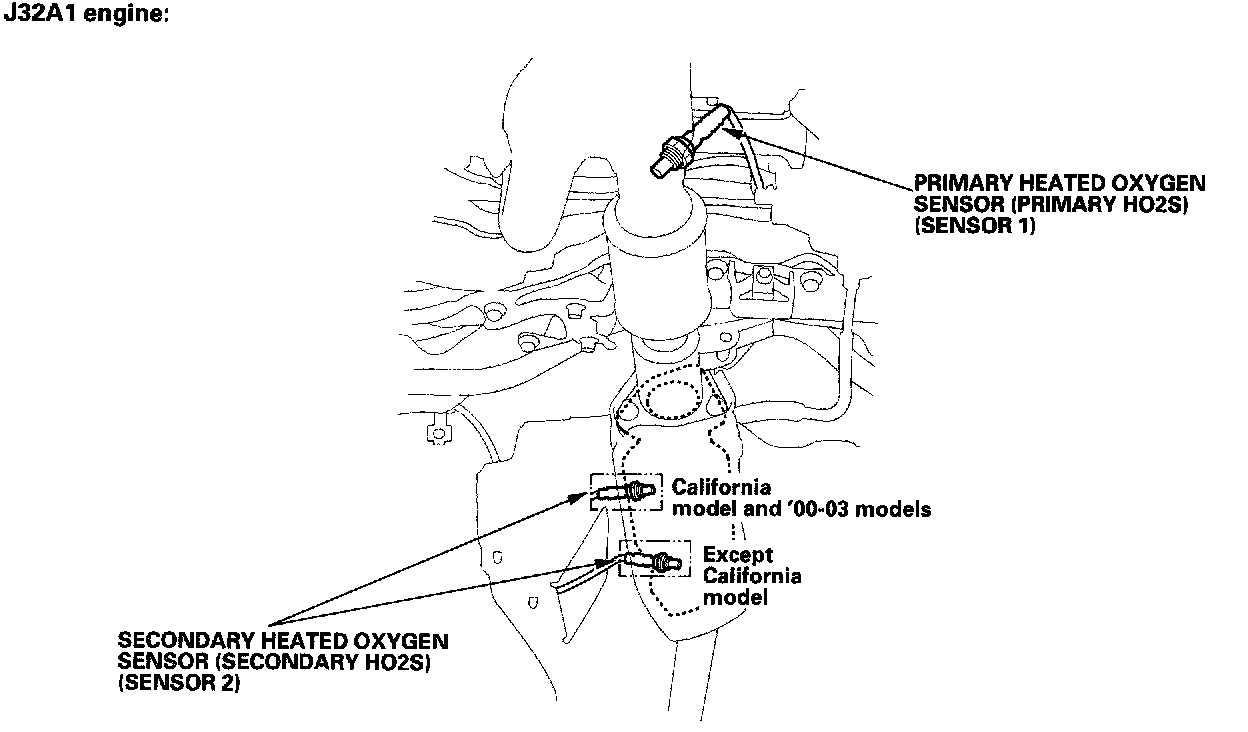

PGM-FI System - Component Location Index:

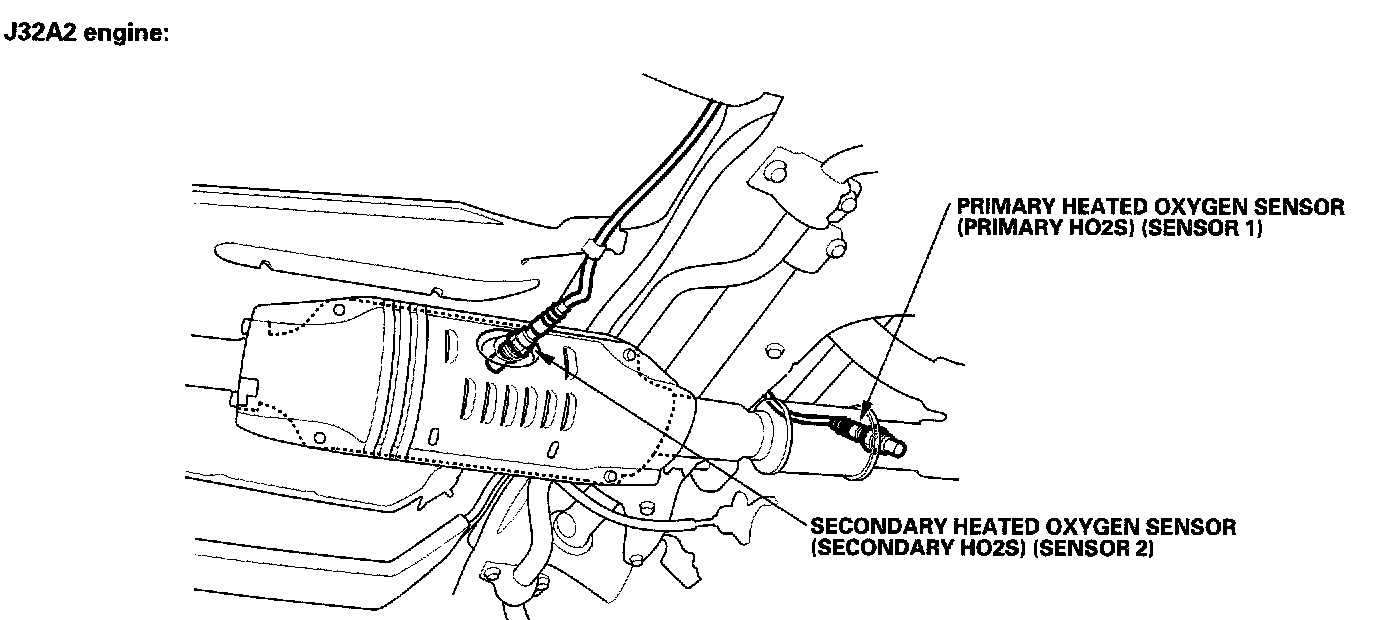

PGM-FI System - Component Location Index:
