Fuse Block

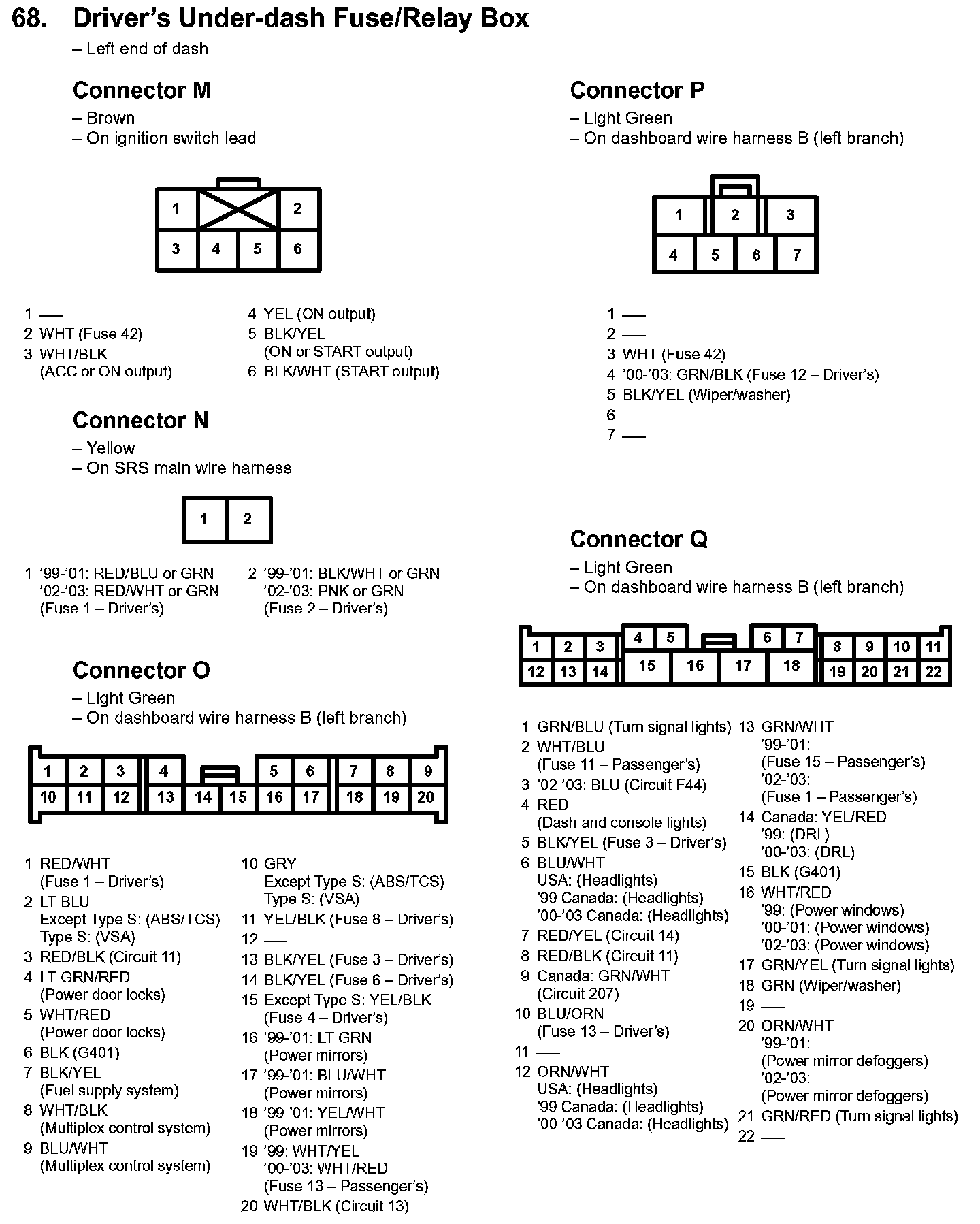

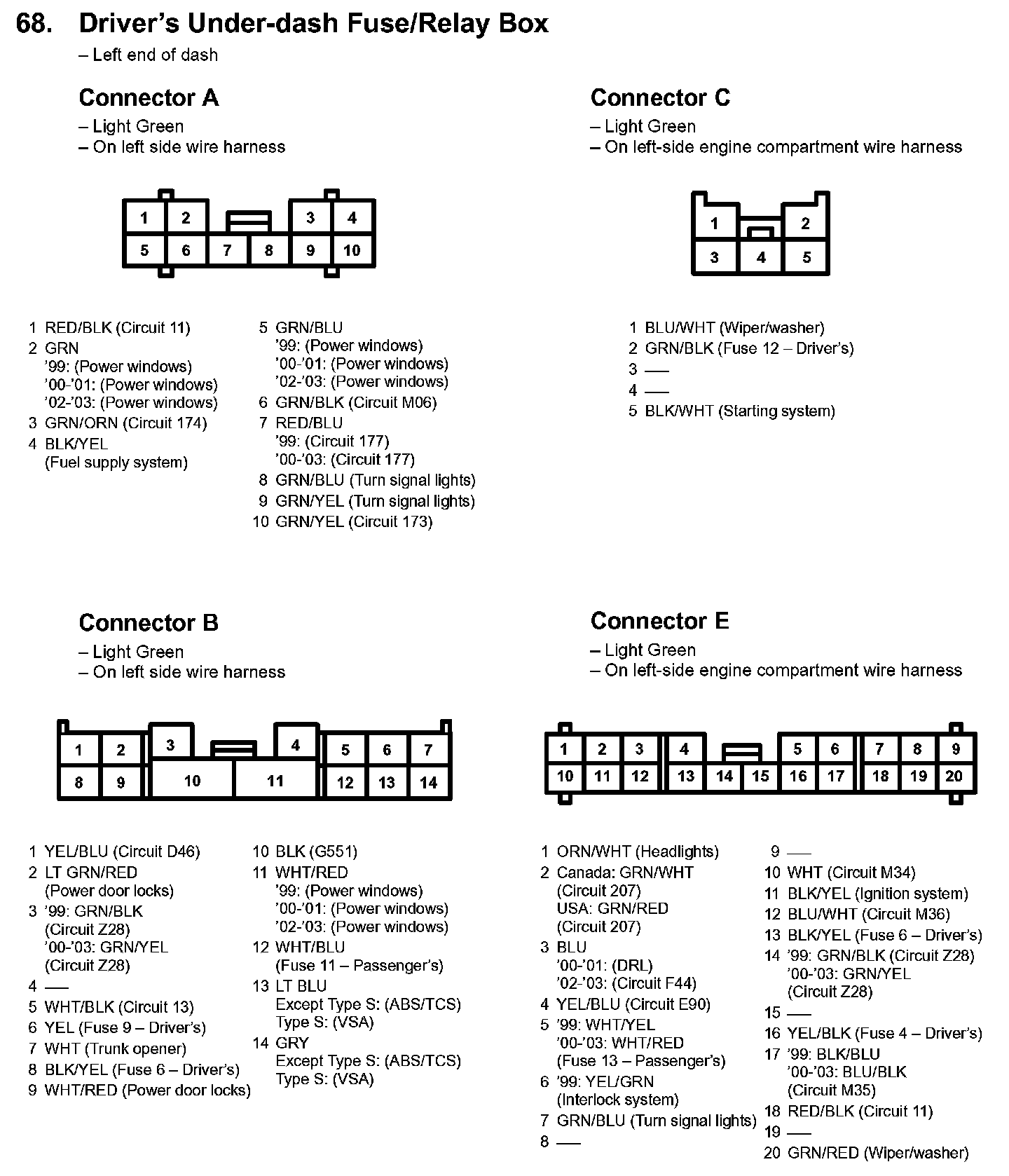

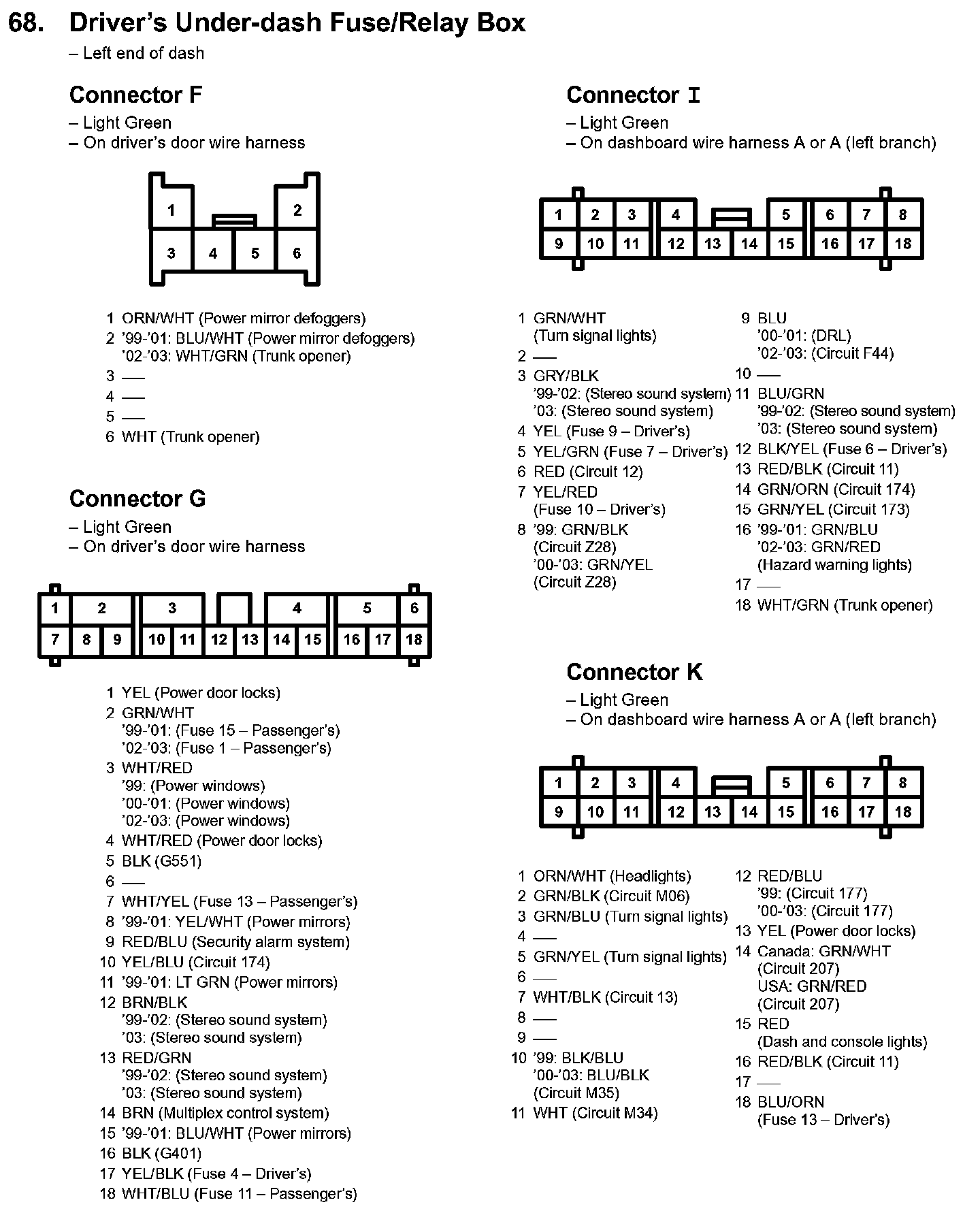

68. Driver's Under-dash Fuse/Relay Box:



68. Driver's Under-dash Fuse/Relay Box:



68. Driver's Under-dash Fuse/Relay Box:

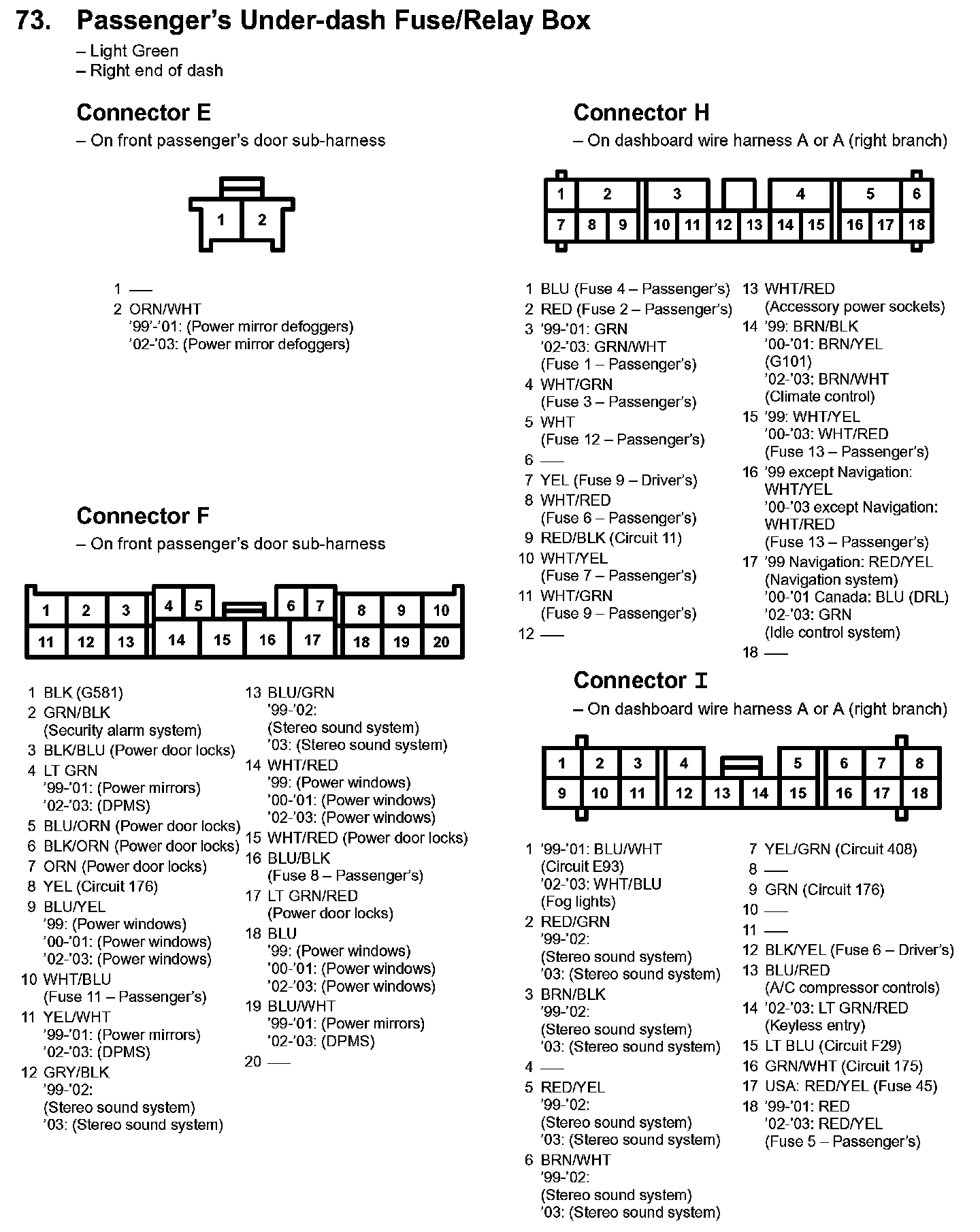

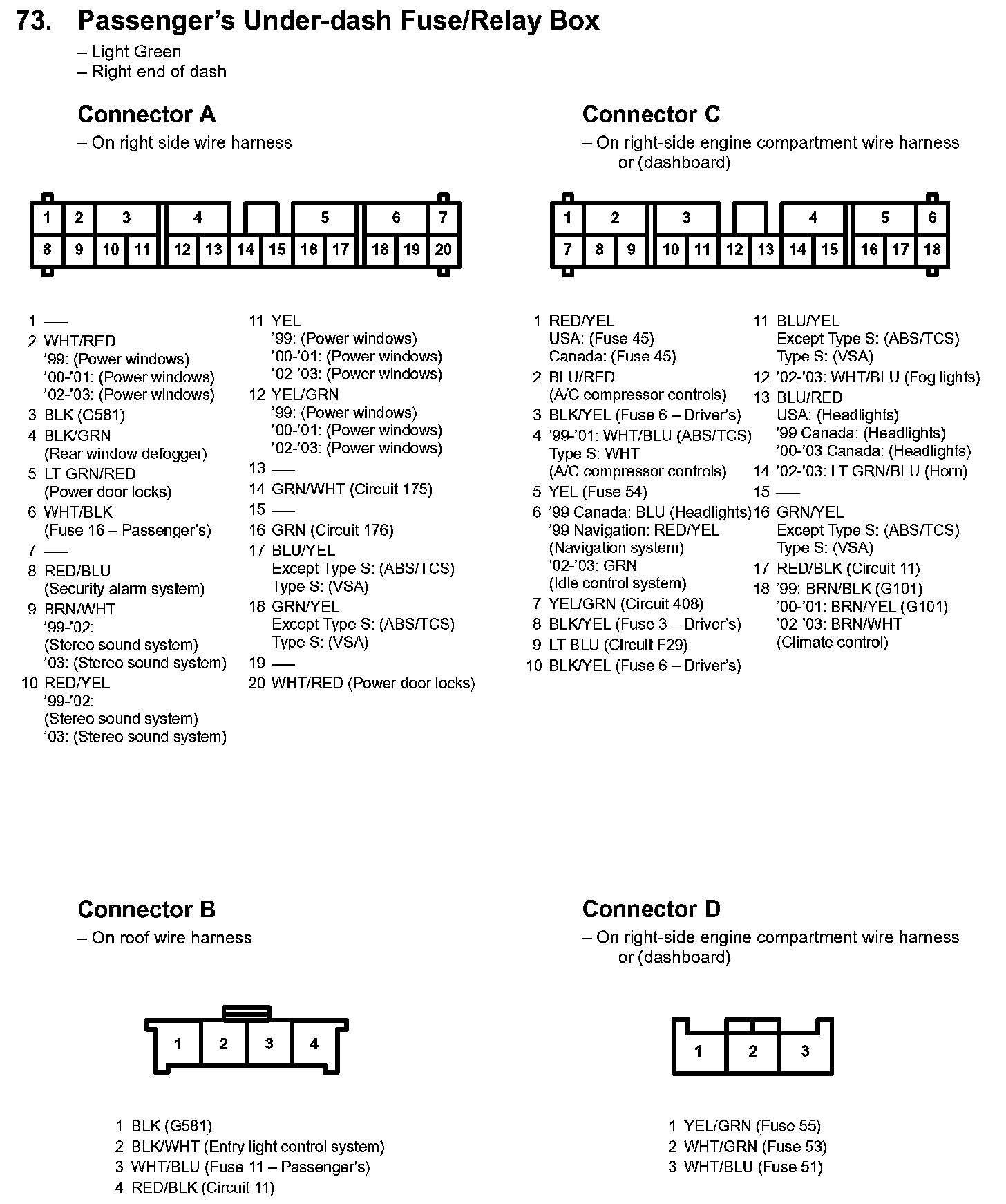

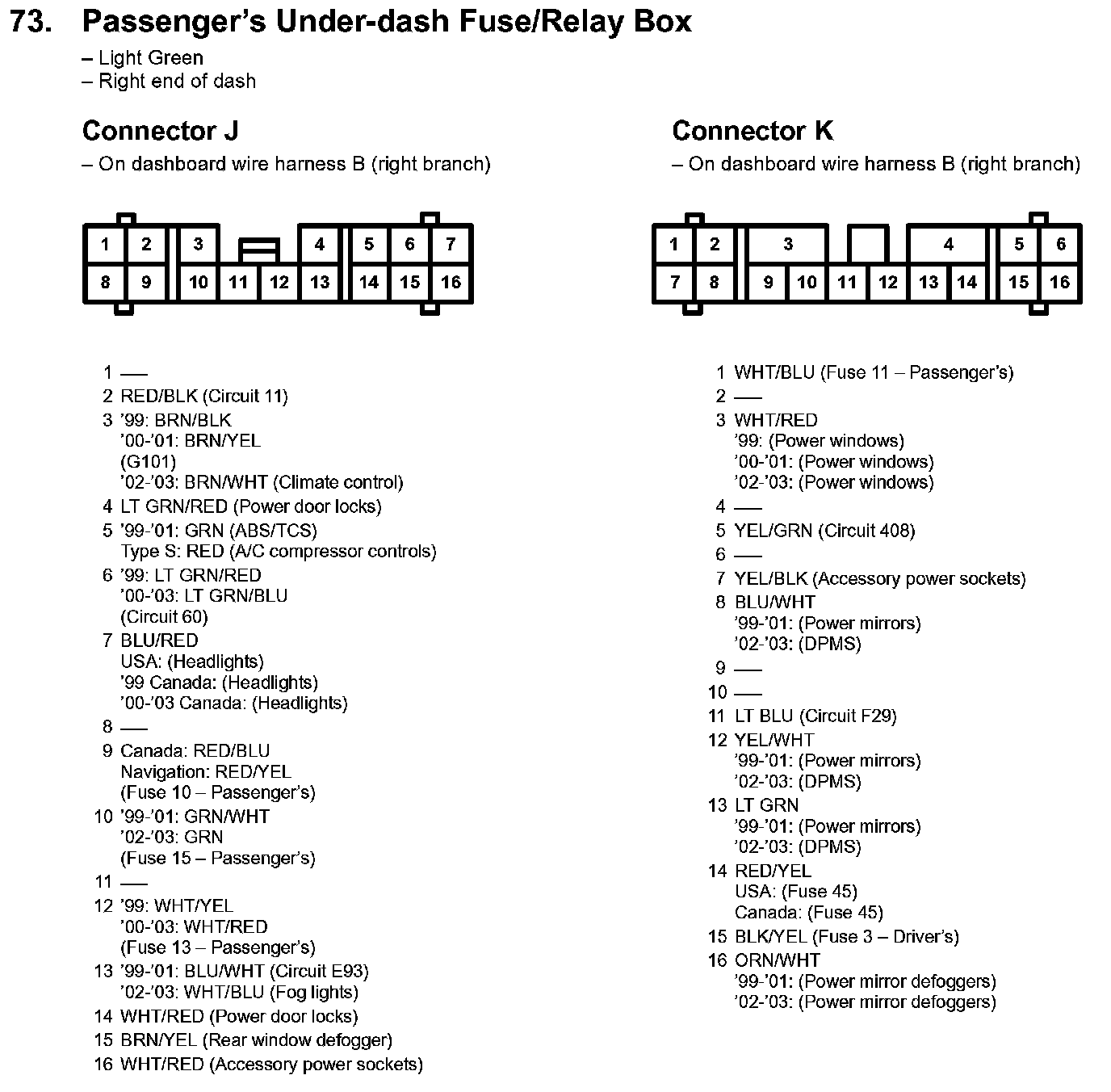

73. Passenger's Under-dash Fuse/Relay Box:



73. Passenger's Under-dash Fuse/Relay Box:



73. Passenger's Under-dash Fuse/Relay Box:

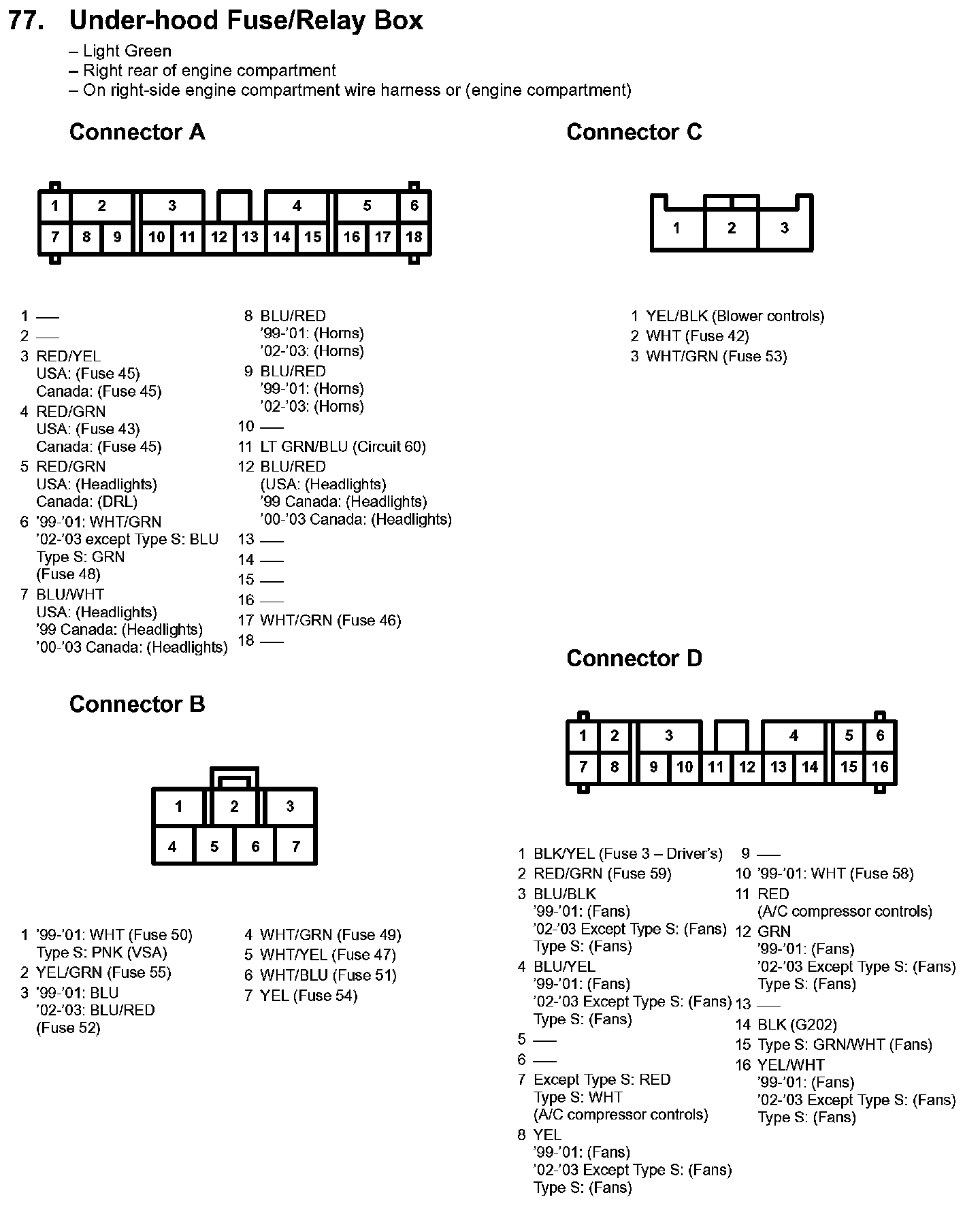

77. Under-hood Fuse/Relay Box:



95. Under-hood ABS Fuse/Relay Box:
