Home >> Acura >> 2003 >> 3.2CL V6-3.2L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Traction Control Module >> Locations

Traction Control Module: Locations

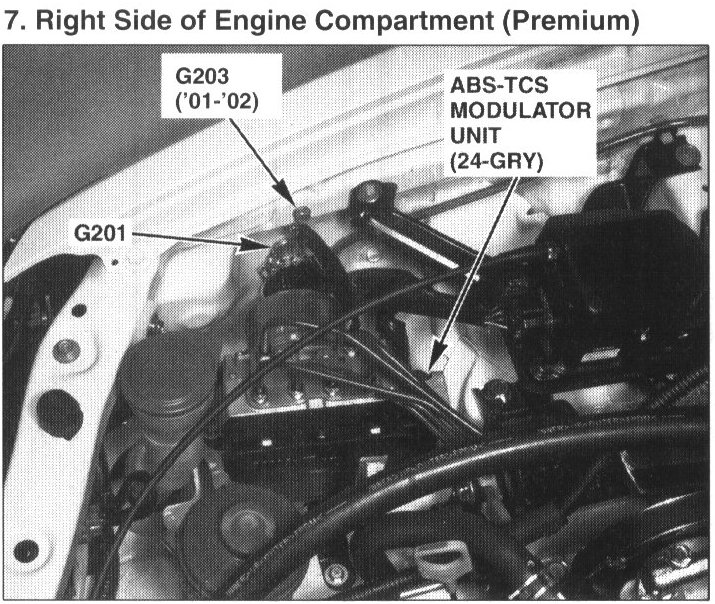

7. Right Side of Engine Compartment (Premium):



3. Right Rear of Engine Compartment:

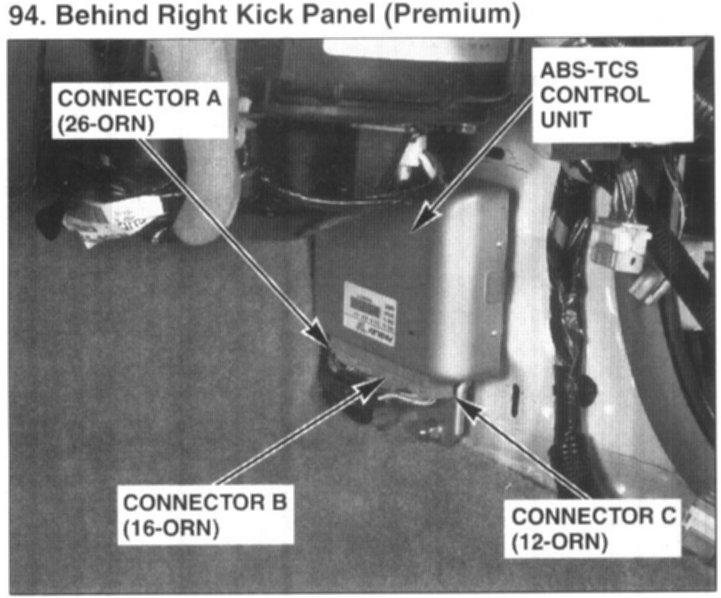

94. Behind Right Kick Panel (Premium):

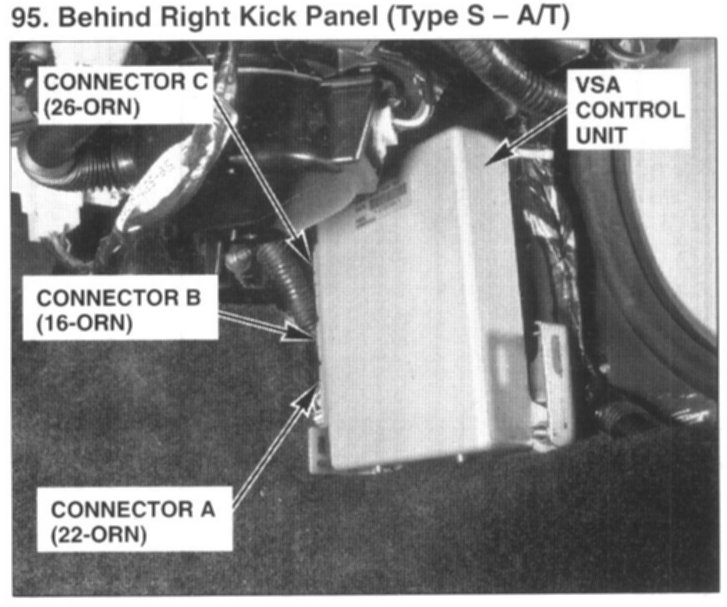

95. Behind Right Kick Panel (Type S - A/T):



Relay And Control Unit Locations - Dashboard:
