Home >> Acura >> 2003 >> 3.2CL V6-3.2L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID >> Under-Dash Fuse/Relay Box

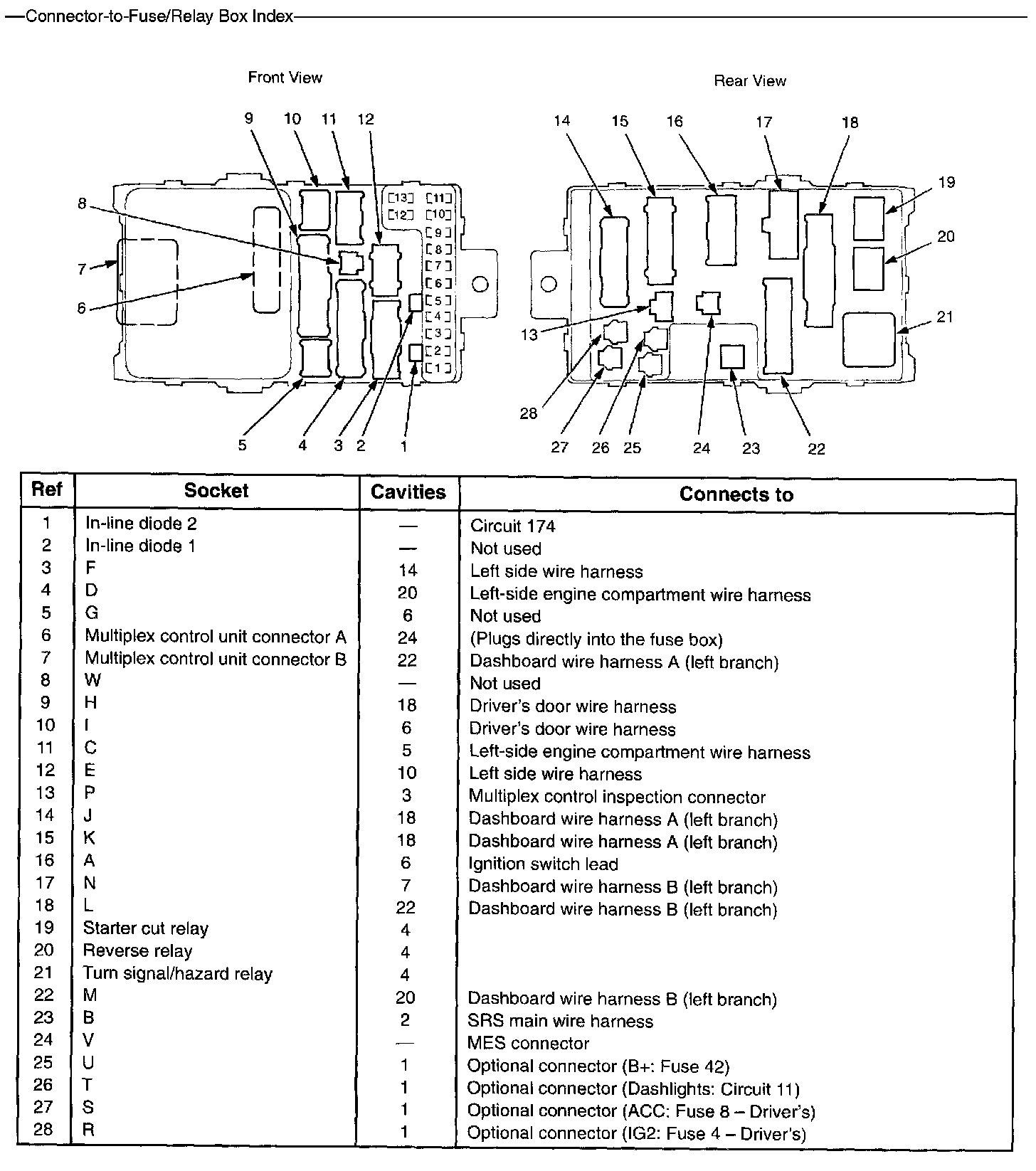

Under-Dash Fuse/Relay Box

Diver's Under-dash Fuse/Relay Box:



Passenger's Under-dash Fuse/Relay Box:
