Home >> Acura >> 2003 >> 3.2CL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Interlock Relay

Shift Interlock Relay

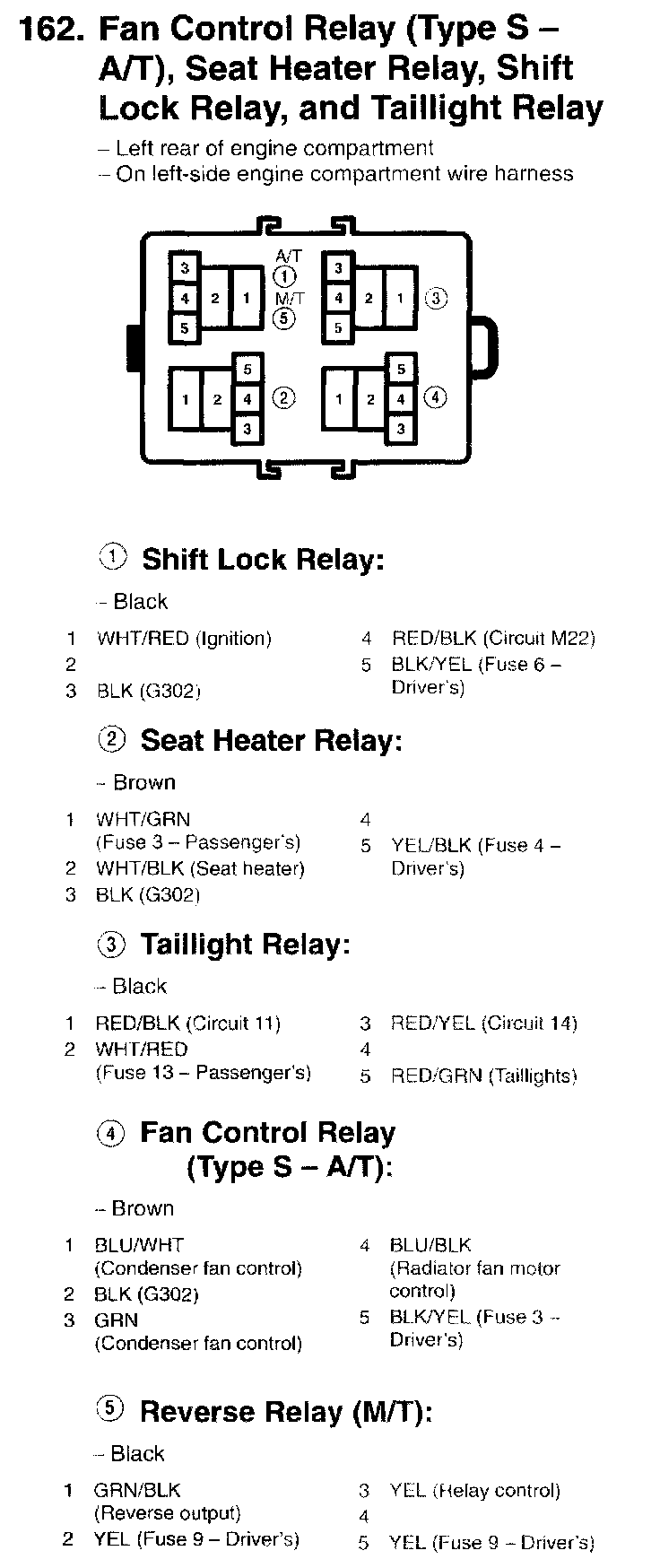

Fan Control Relay (Type S - A/T), Seat Heater Relay, Shift Lock Relay, And Taillight Relay:
