Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Lubrication >> System Diagram

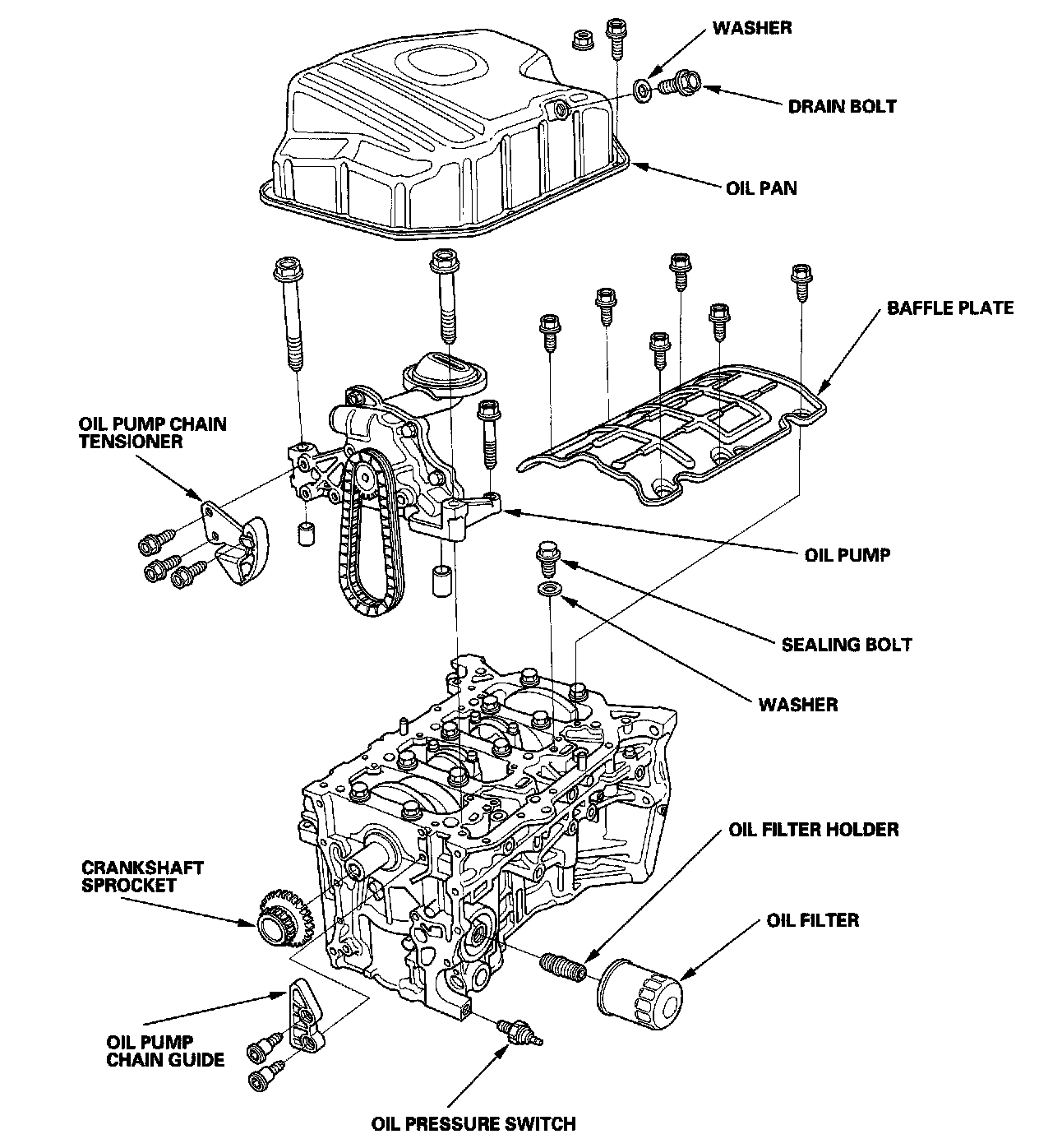

System Diagram
