Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> General Module

General Module

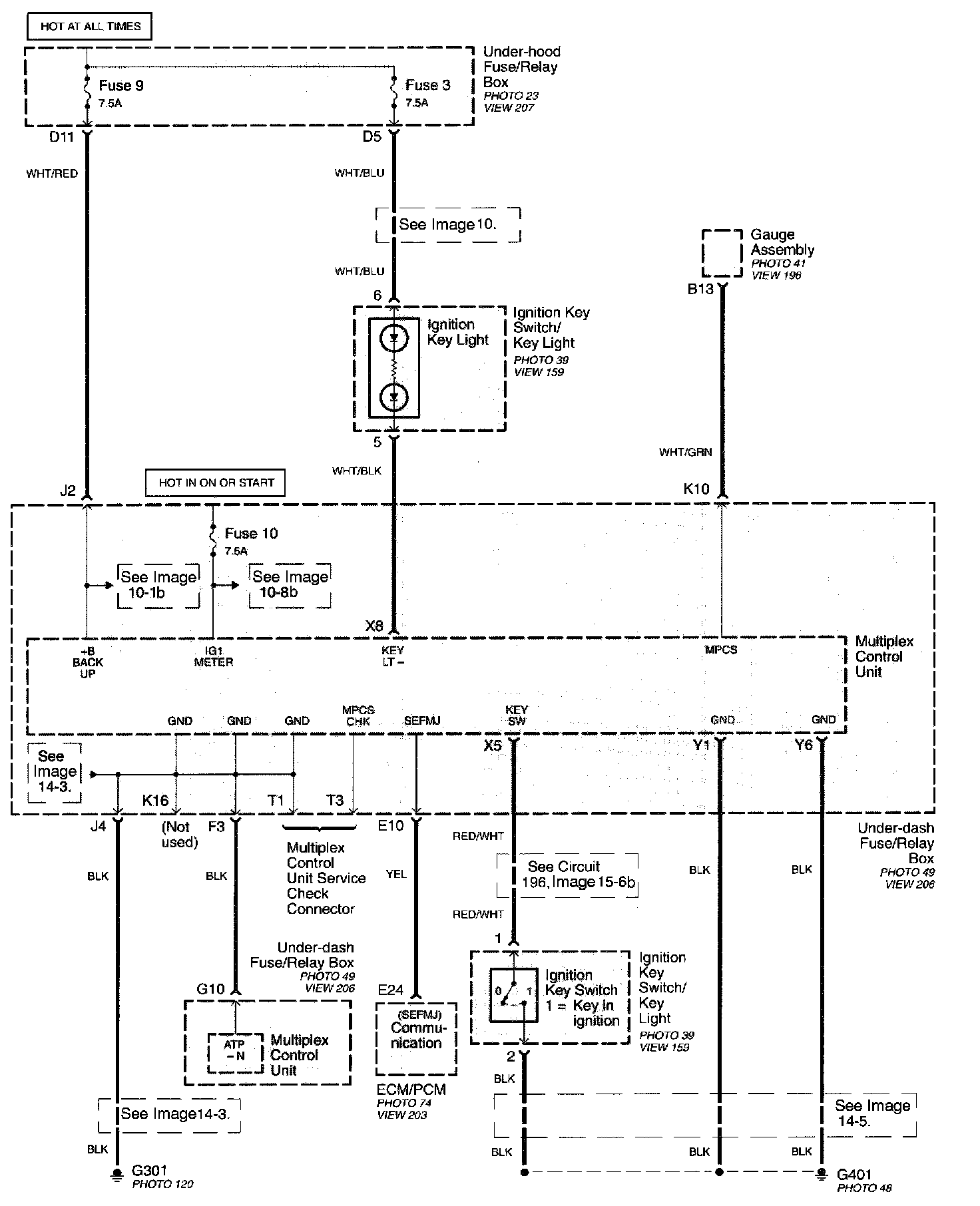

Multiplex Control System Image 50:
