Home
>>
Acura
>>
2002
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
>>
Multi-Relay Box
Multi-Relay Box

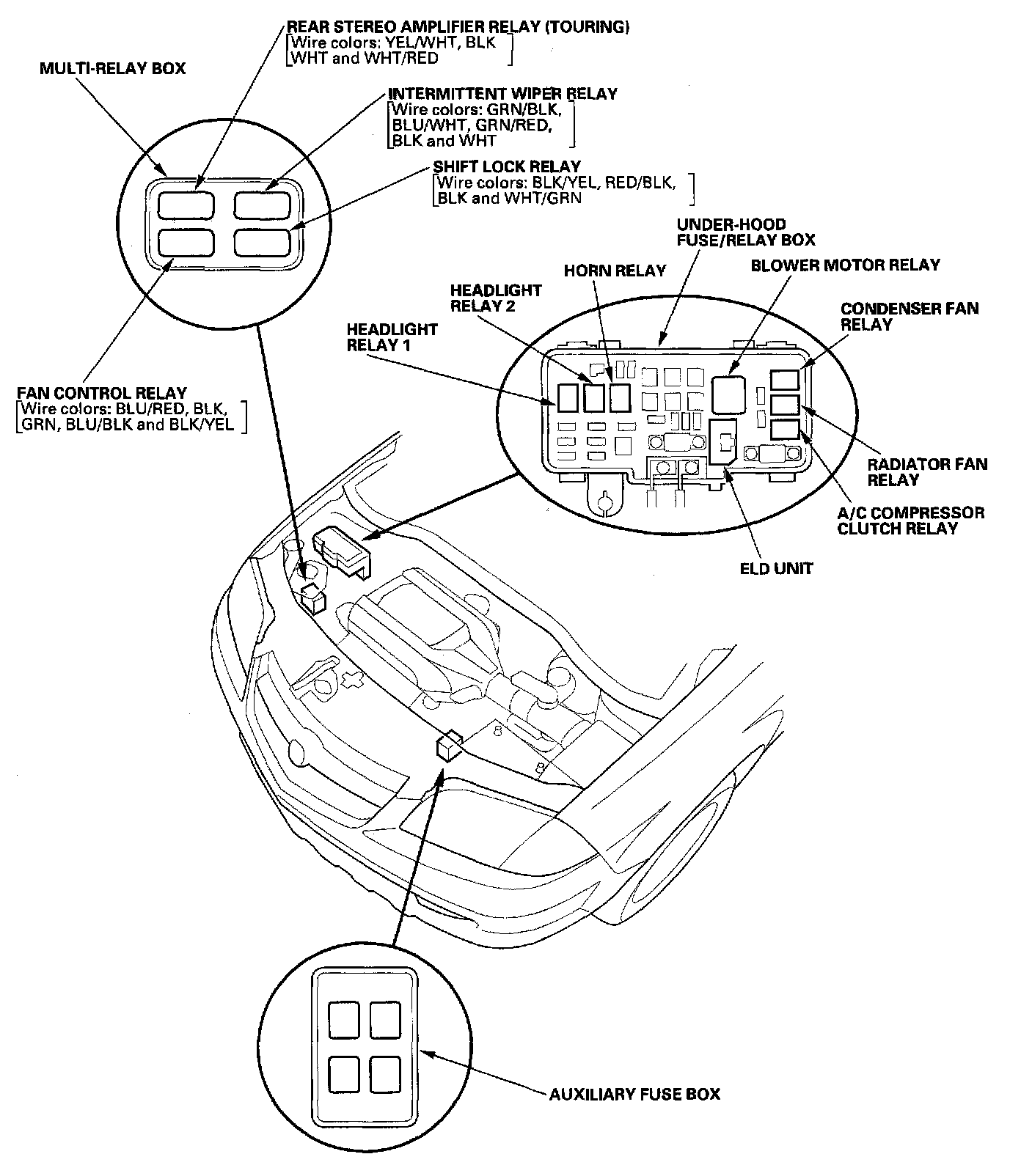

Relay And Control Unit Locations - Engine Compartment:
