Component Locations

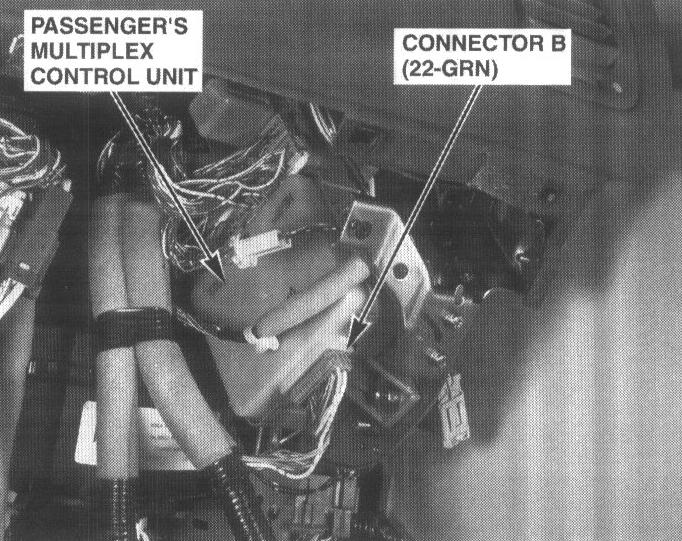

89. Under Right Side Of Dash:

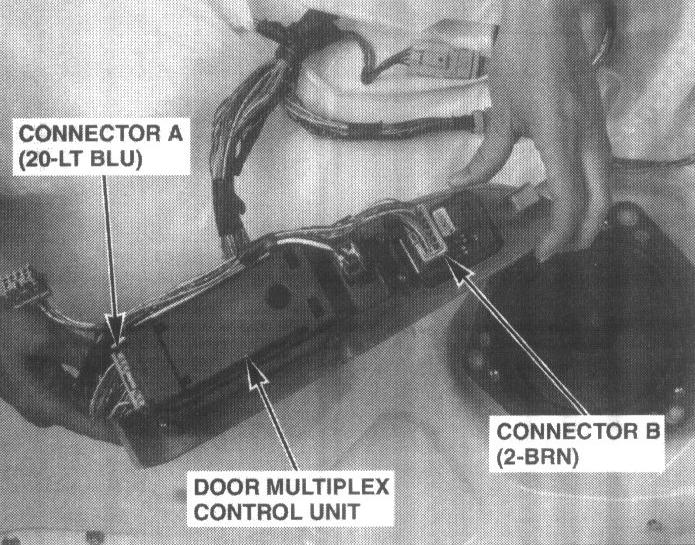

102. Driver's Door (Panel Removed):

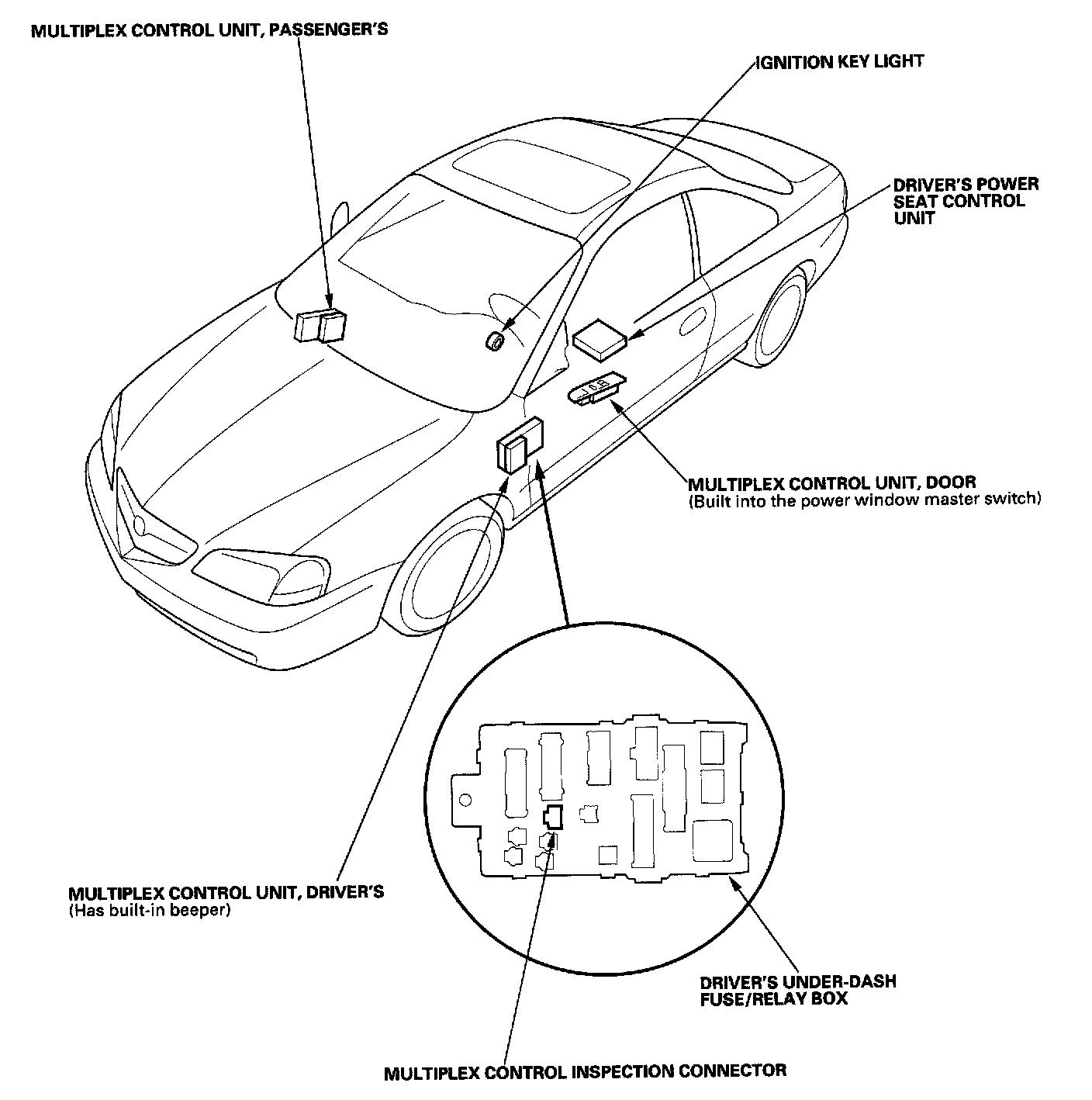

Multiplex Control System Component Location Index:
