Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Circuit 17

Circuit 17

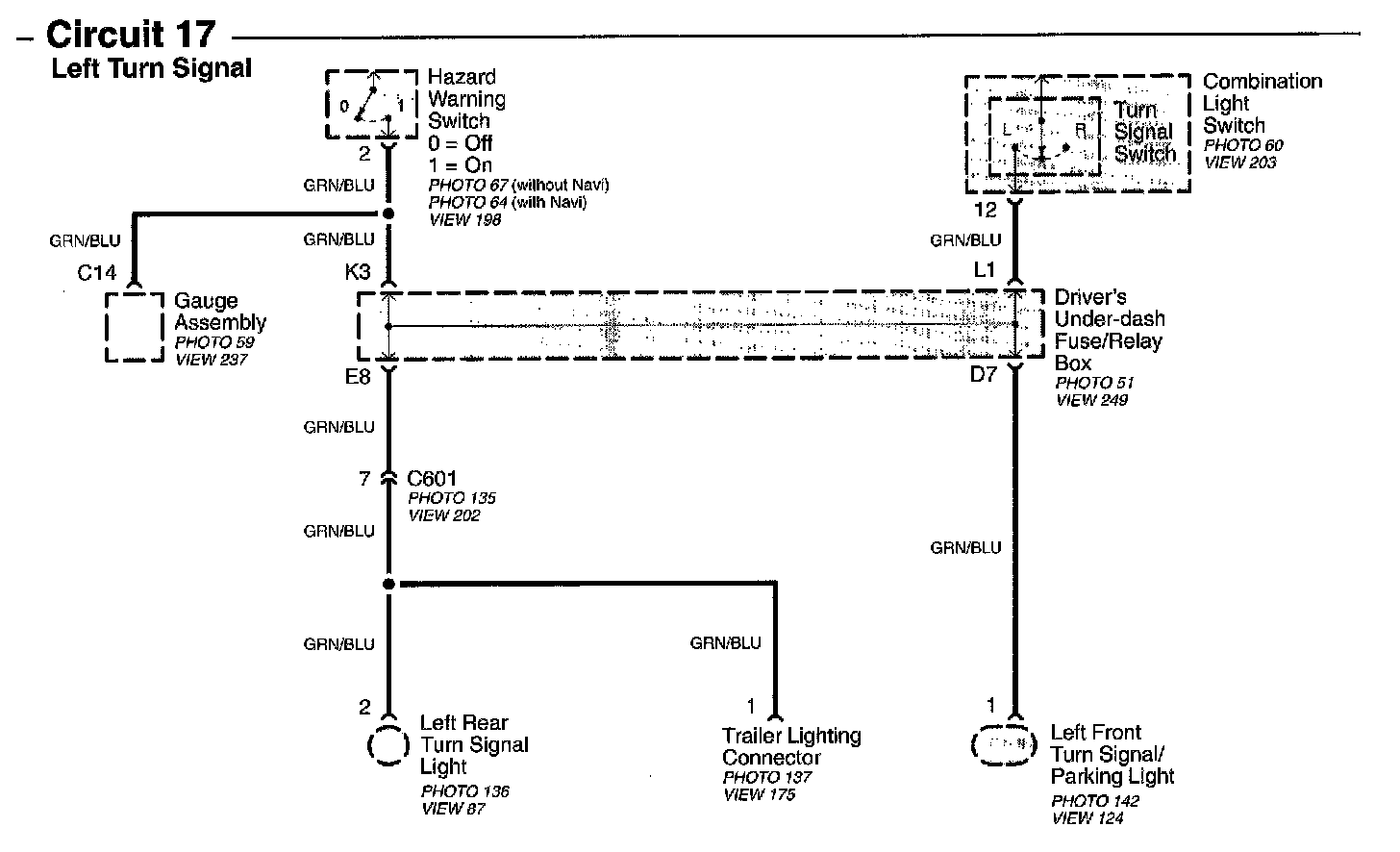

Circuit 17 - Left Turn Signal Image 15-4b:
