Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Circuit 13

Circuit 13

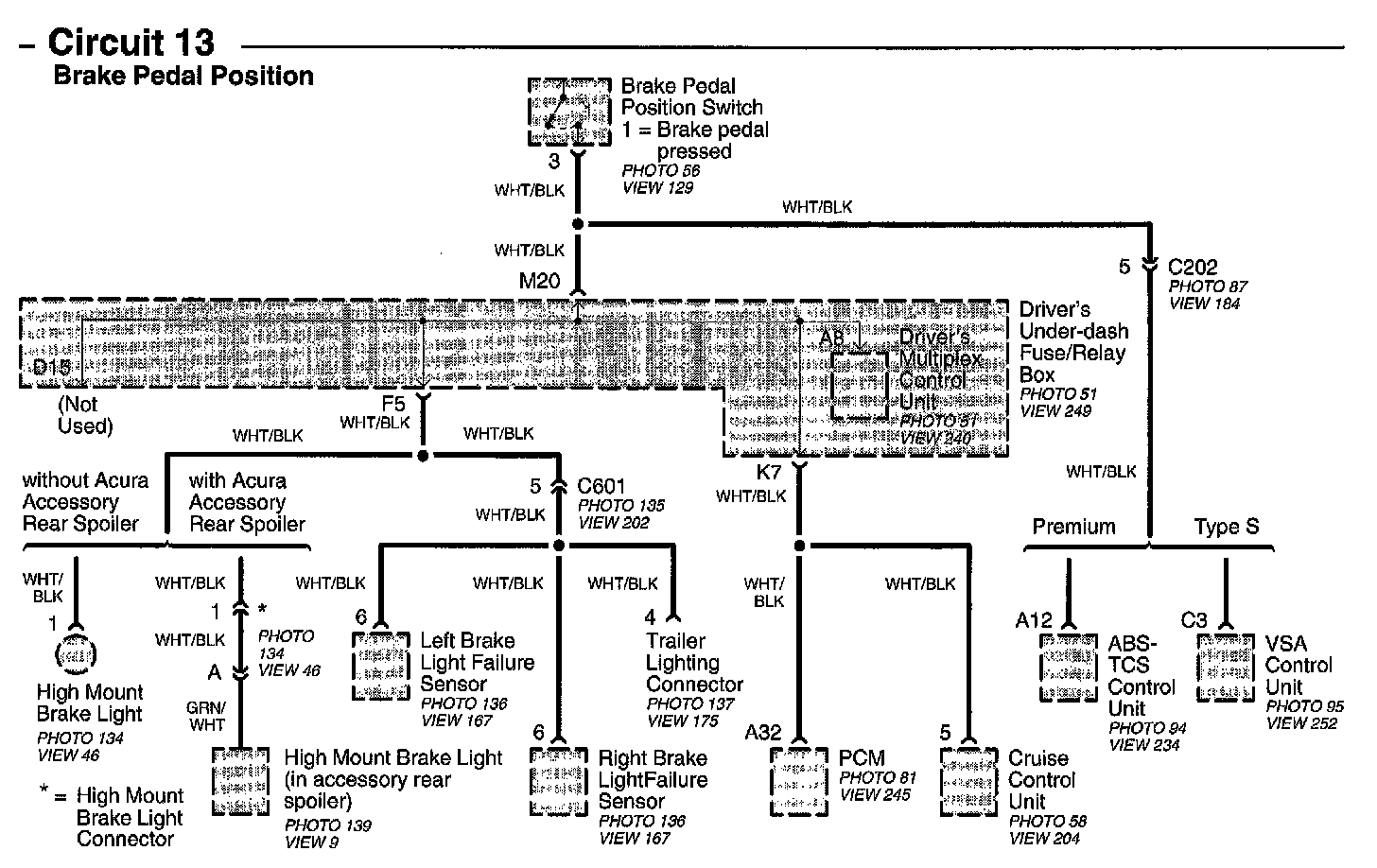

Circuit 13 - Brake Pedal Position Image 15-3a:
