Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Exterior Lighting Module >> Locations

Exterior Lighting Module: Locations

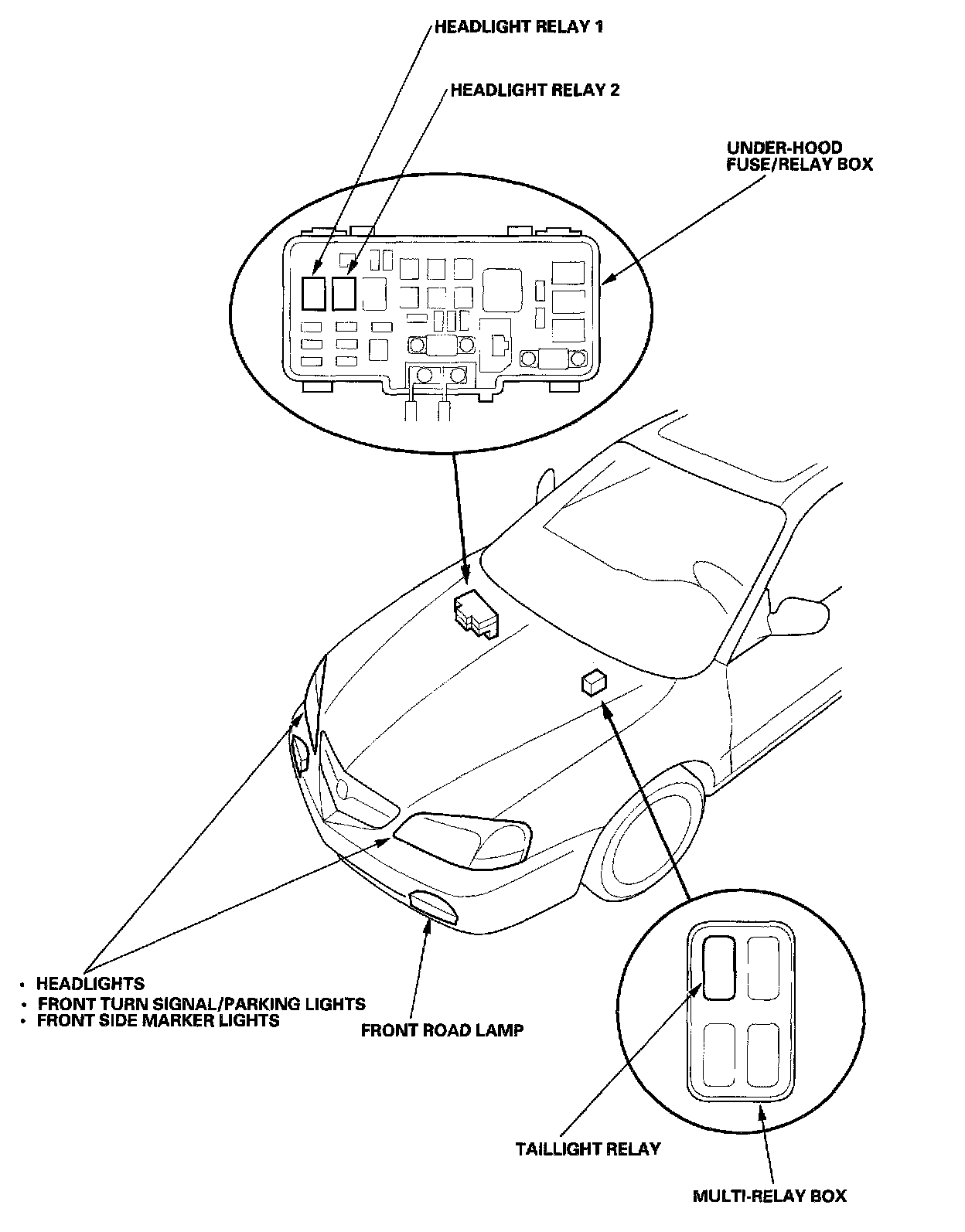

Exterior Lights Component Location Index Part 1:

Exterior Lights Component Location Index Part 2:

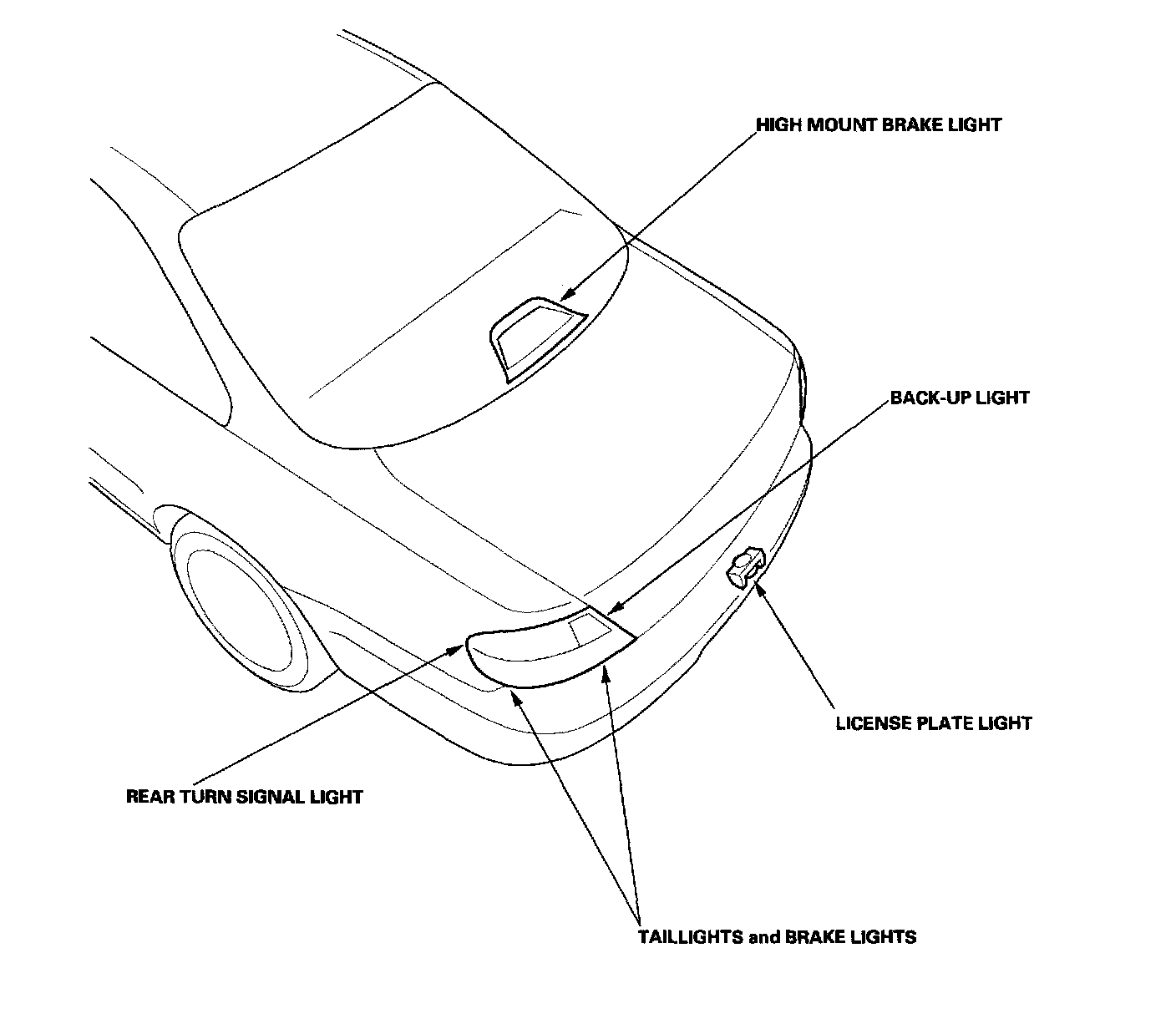

Exterior Lights Component Location Index Part 3:
