Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Hydraulic Control Assembly - Antilock Brakes >> ABS/TCS Components

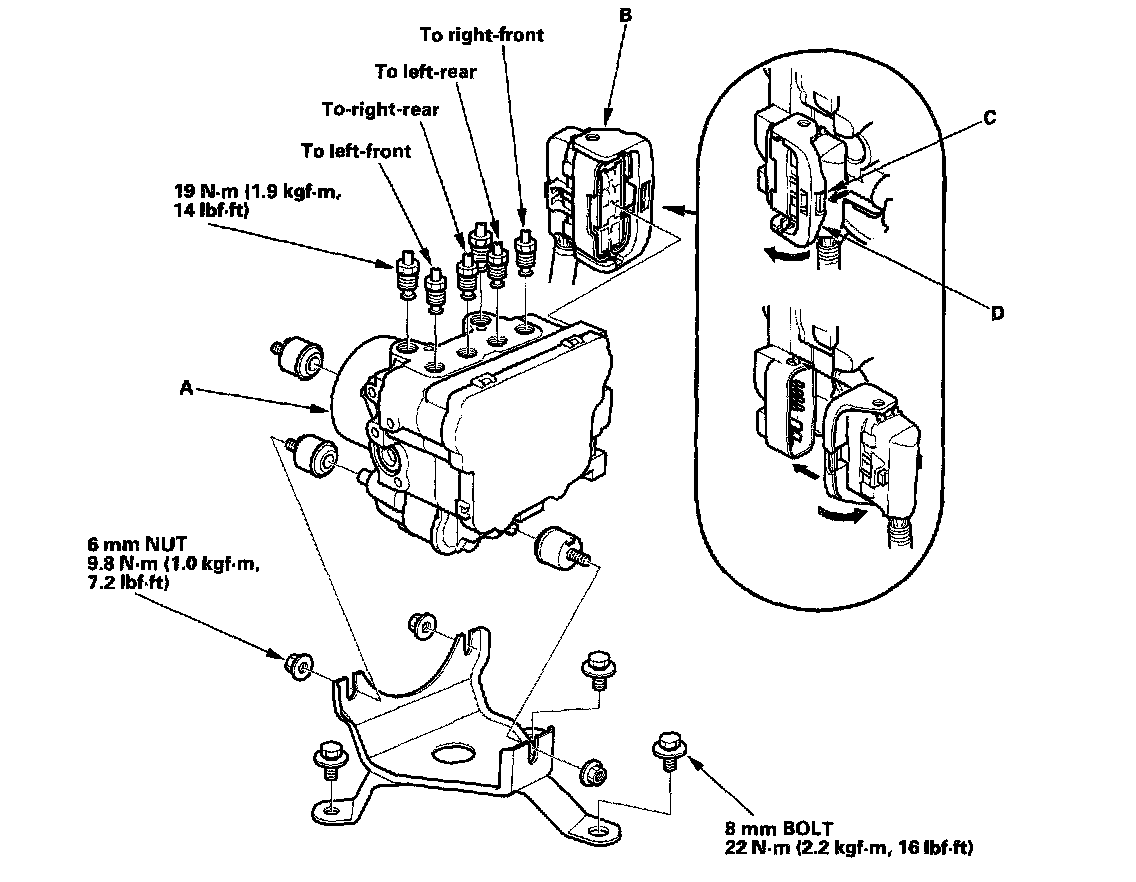

ABS/TCS Components
