System Specifications

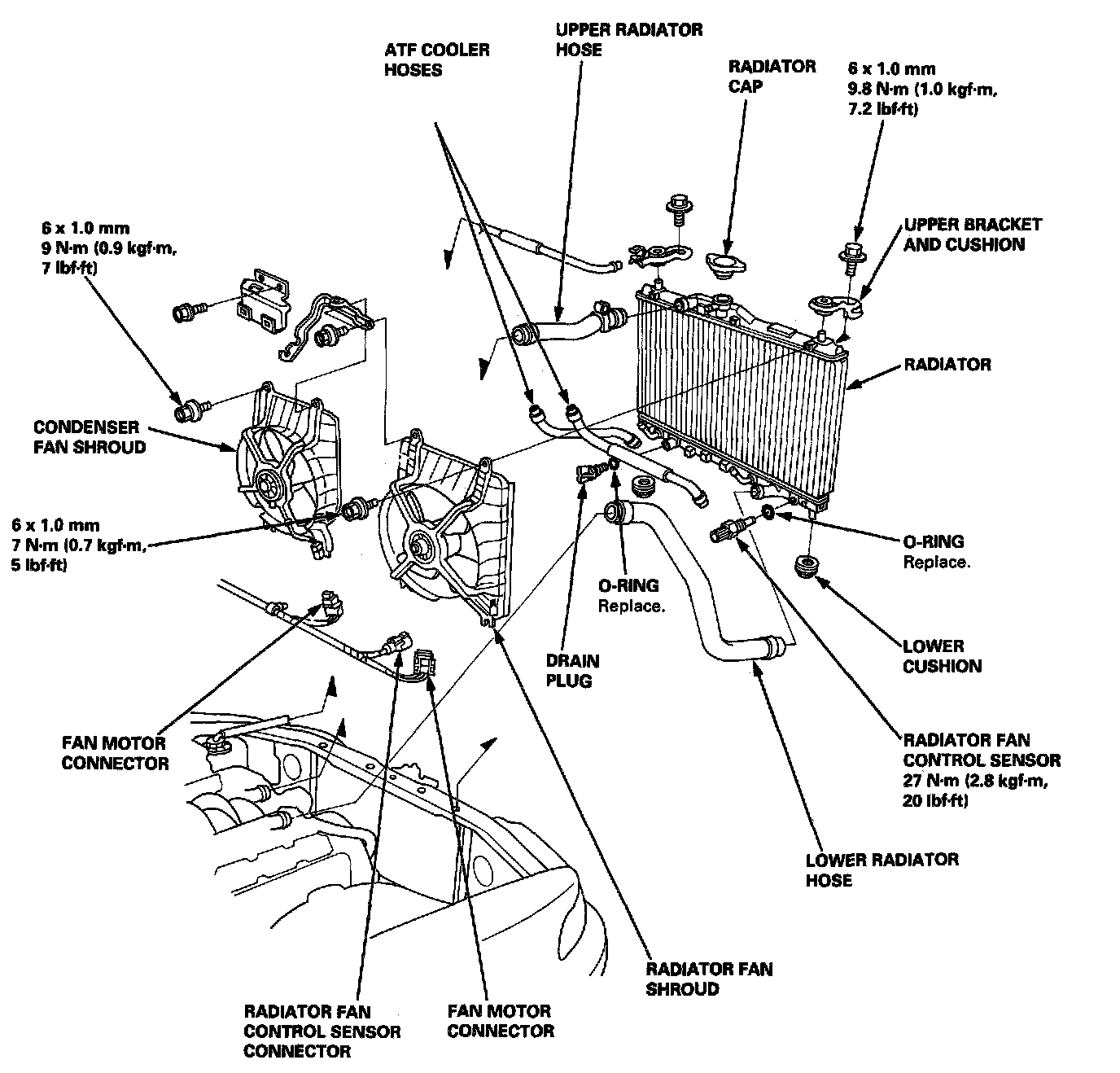

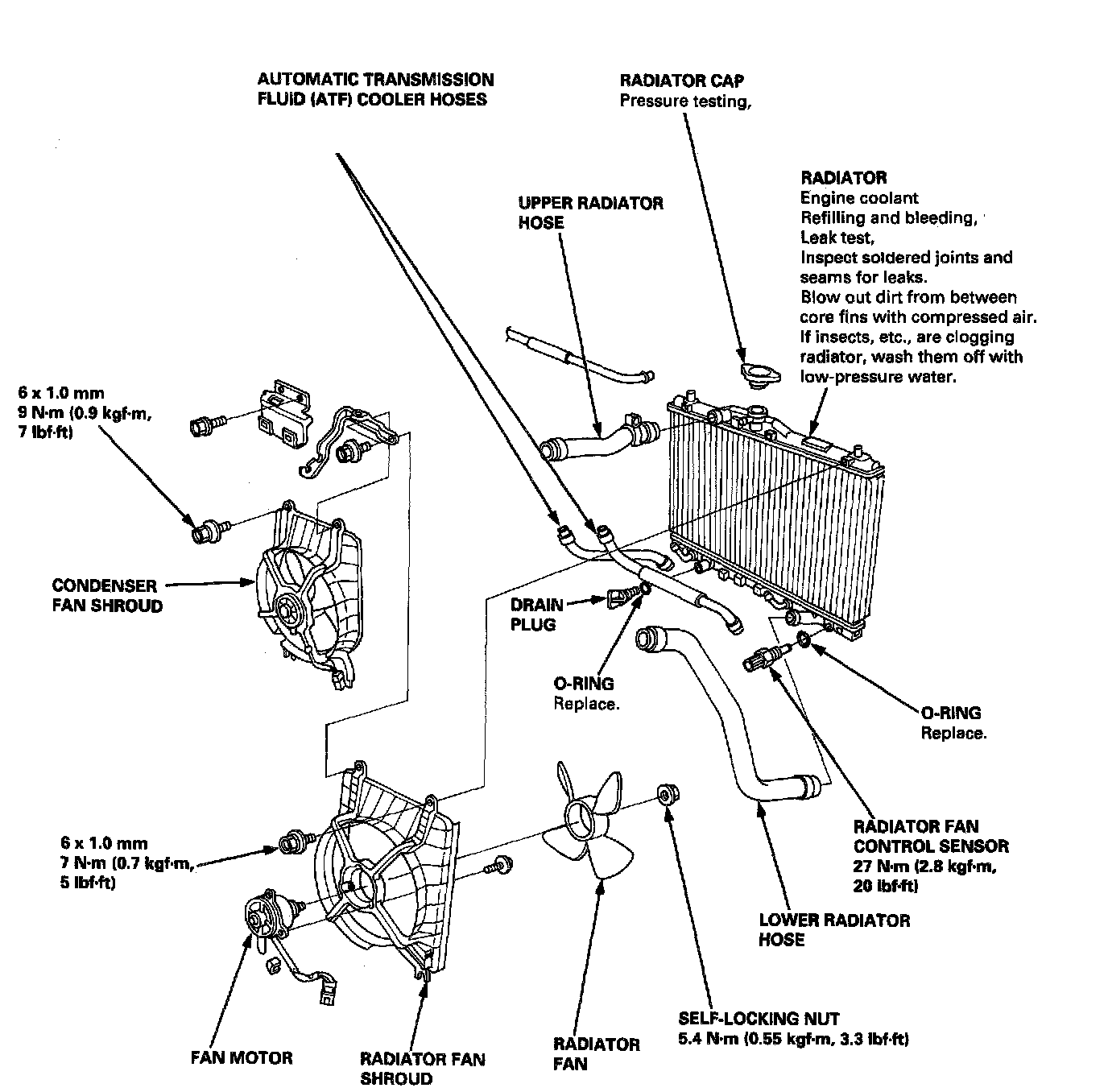

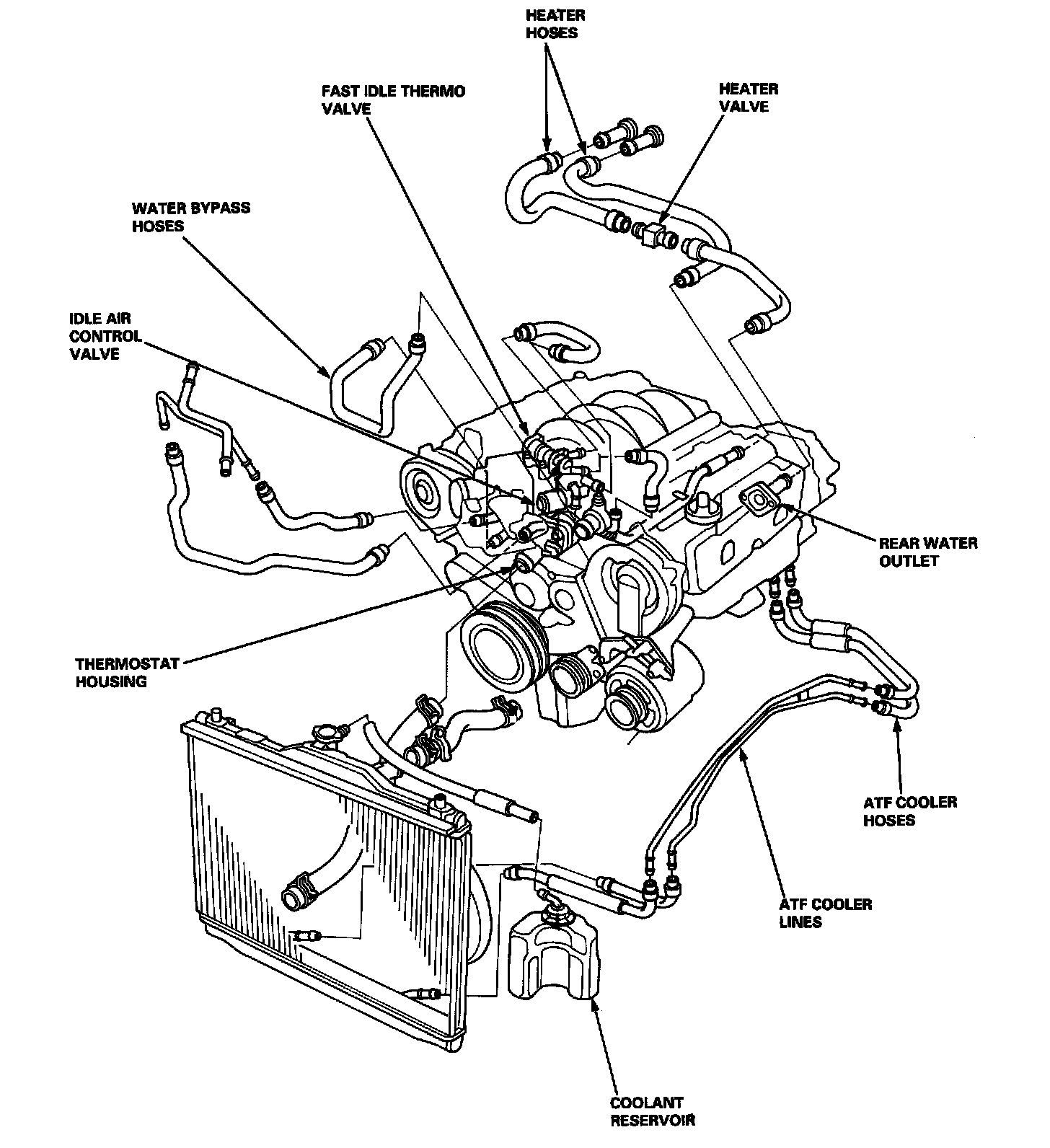

RADIATOR





Part 1 of 3





Part 2 of 3





Part 3 of 3

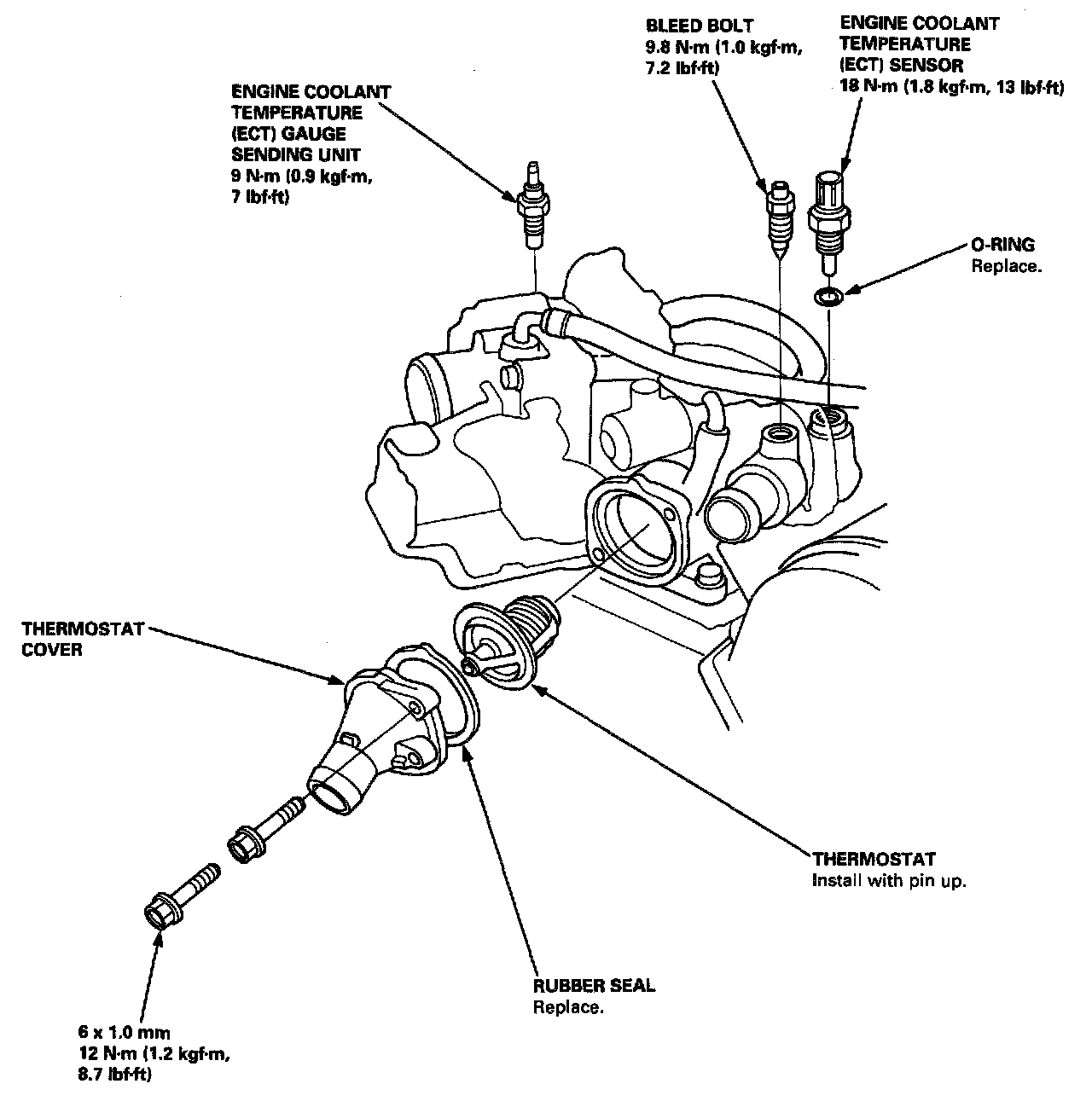

THERMOSTAT

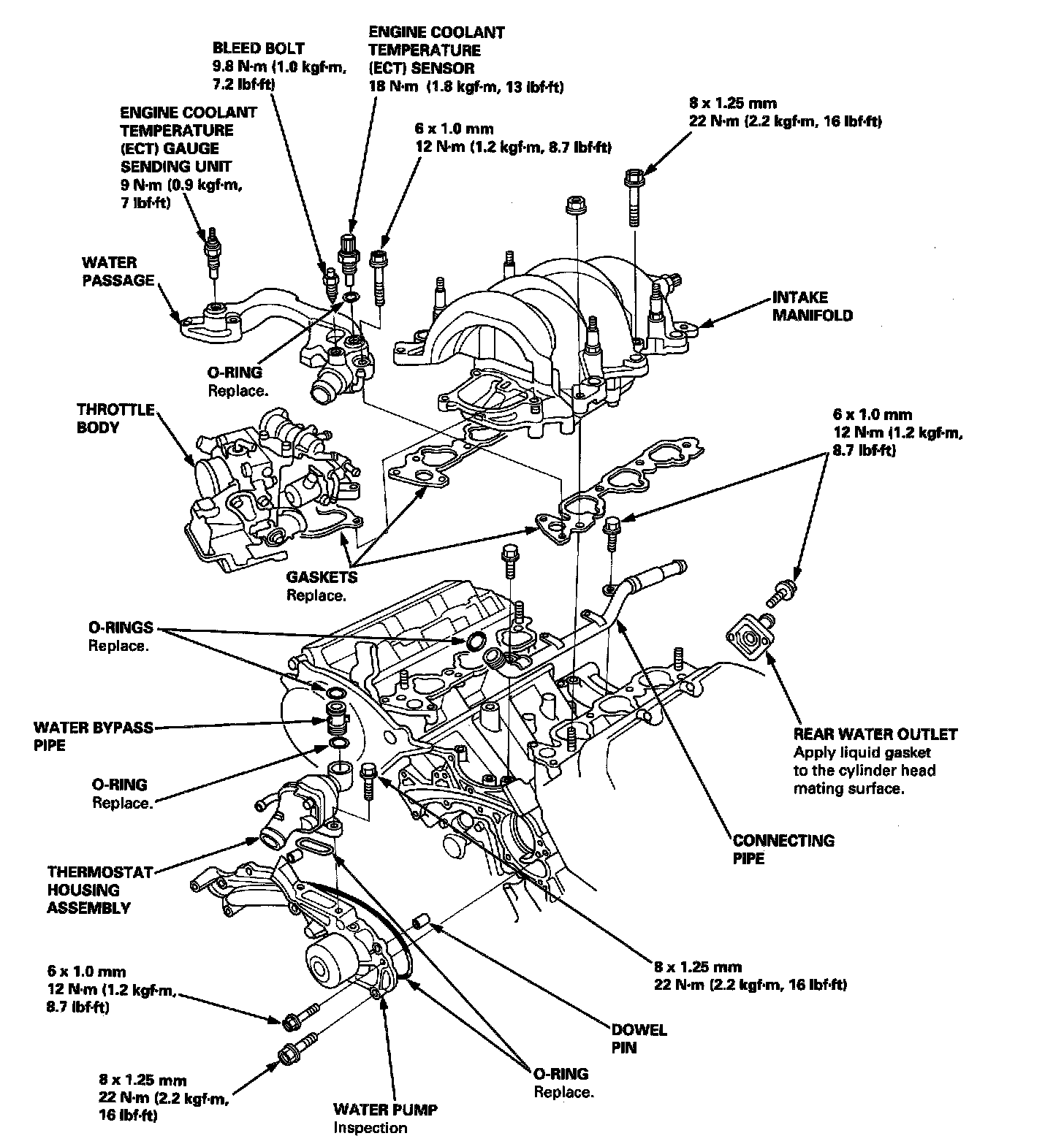

WATER PUMP
