Home >> Acura >> 2002 >> 3.5RL V6-3474cc 3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Emergency Contact Button >> Onstar System Interface Unit

Onstar System Interface Unit

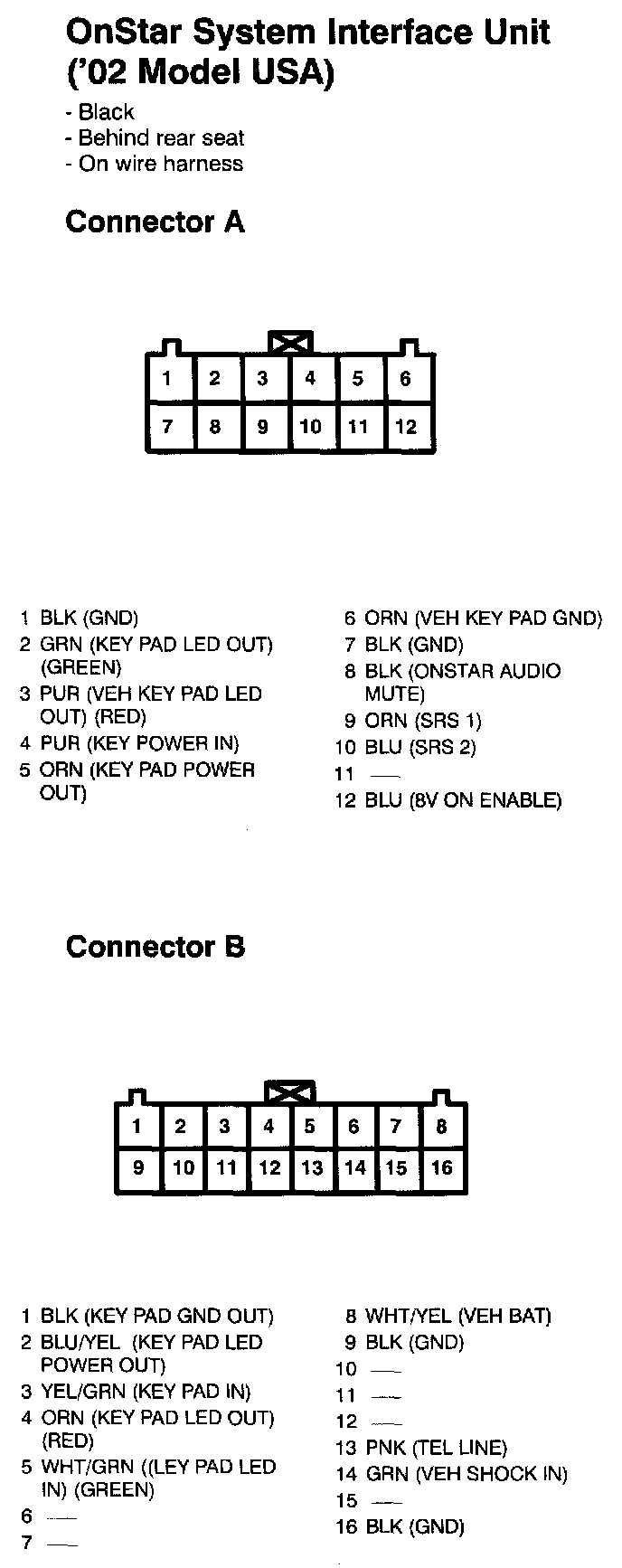

OnStar System Interface Unit (USA) Connectors A And B:
