Home >> Acura >> 2002 >> 3.2TL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> General Module

General Module

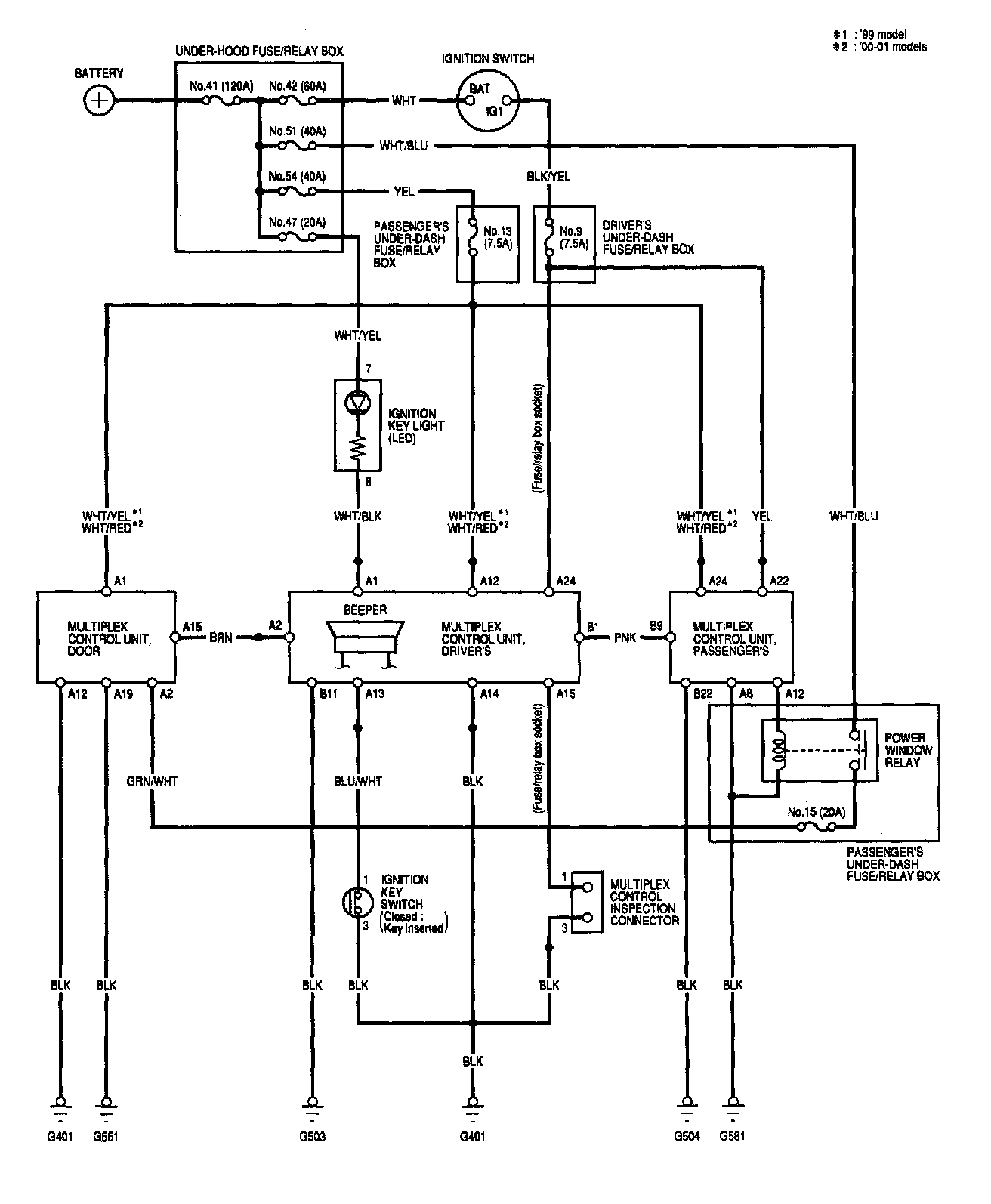

Multiplex Control System Image 50:

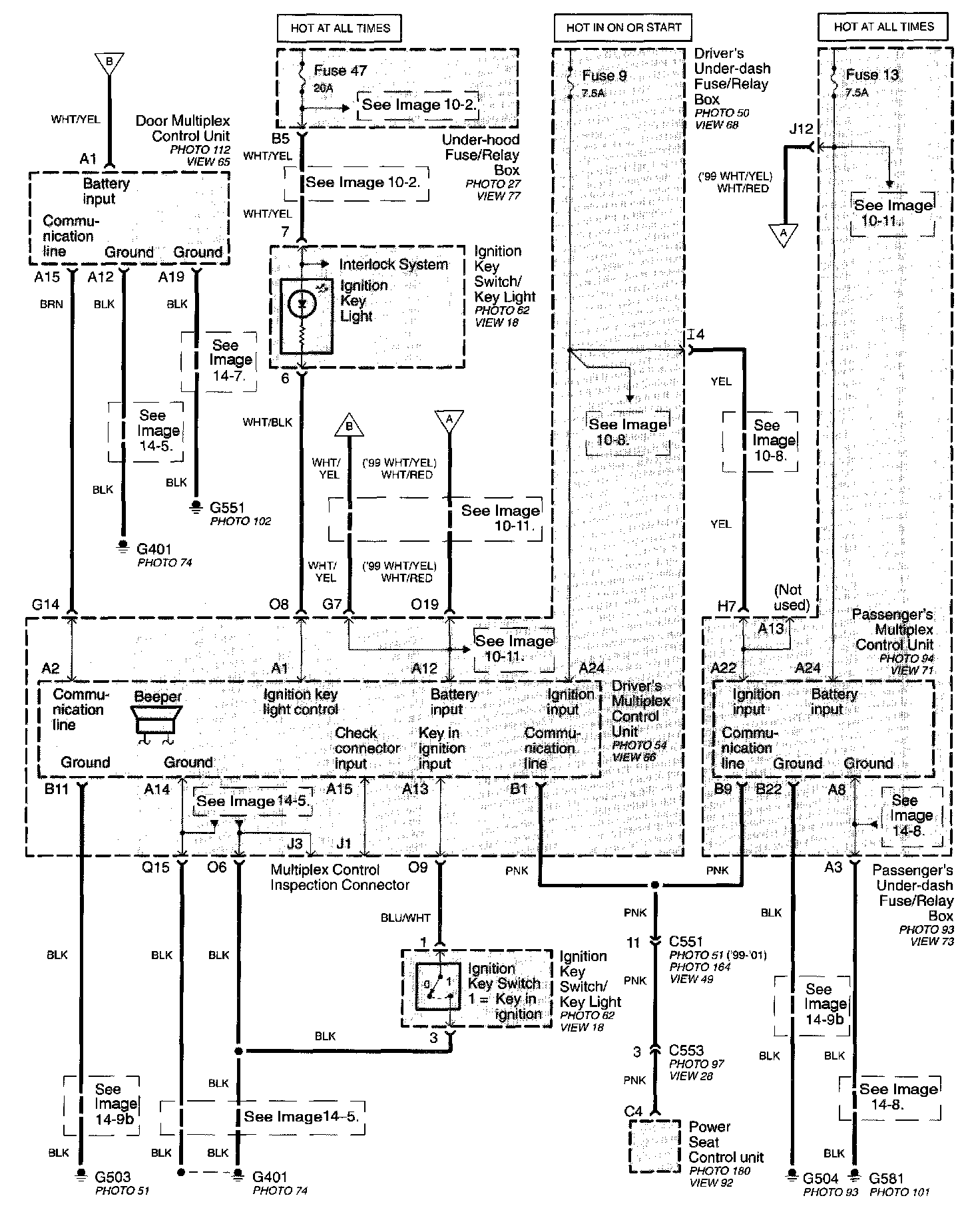

Multiplex Control System - Circuit Diagram (Power, Ground, Communication Lines):
