Traction Control Module

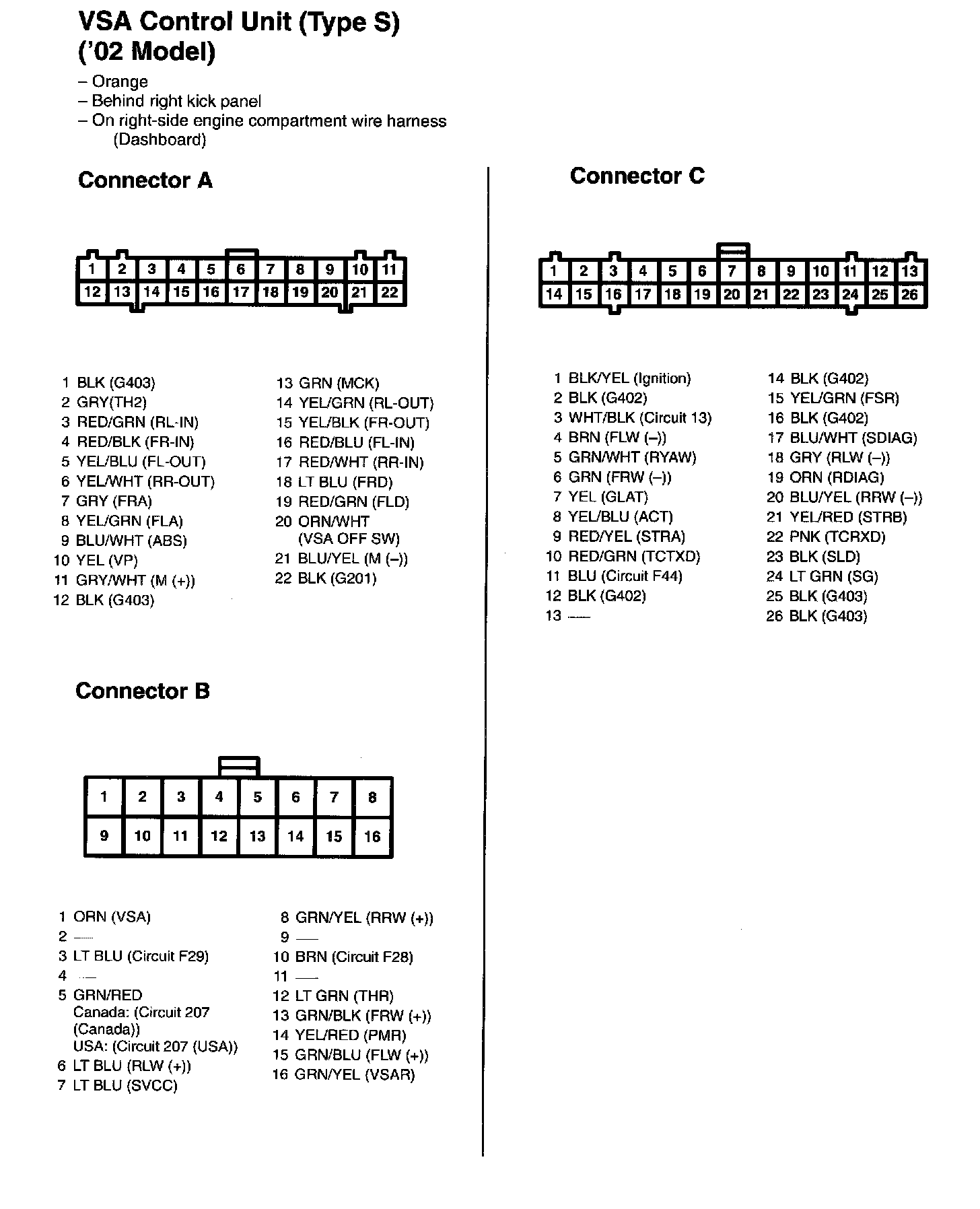

VSA Control Unit (Type S) Connectors A - C:

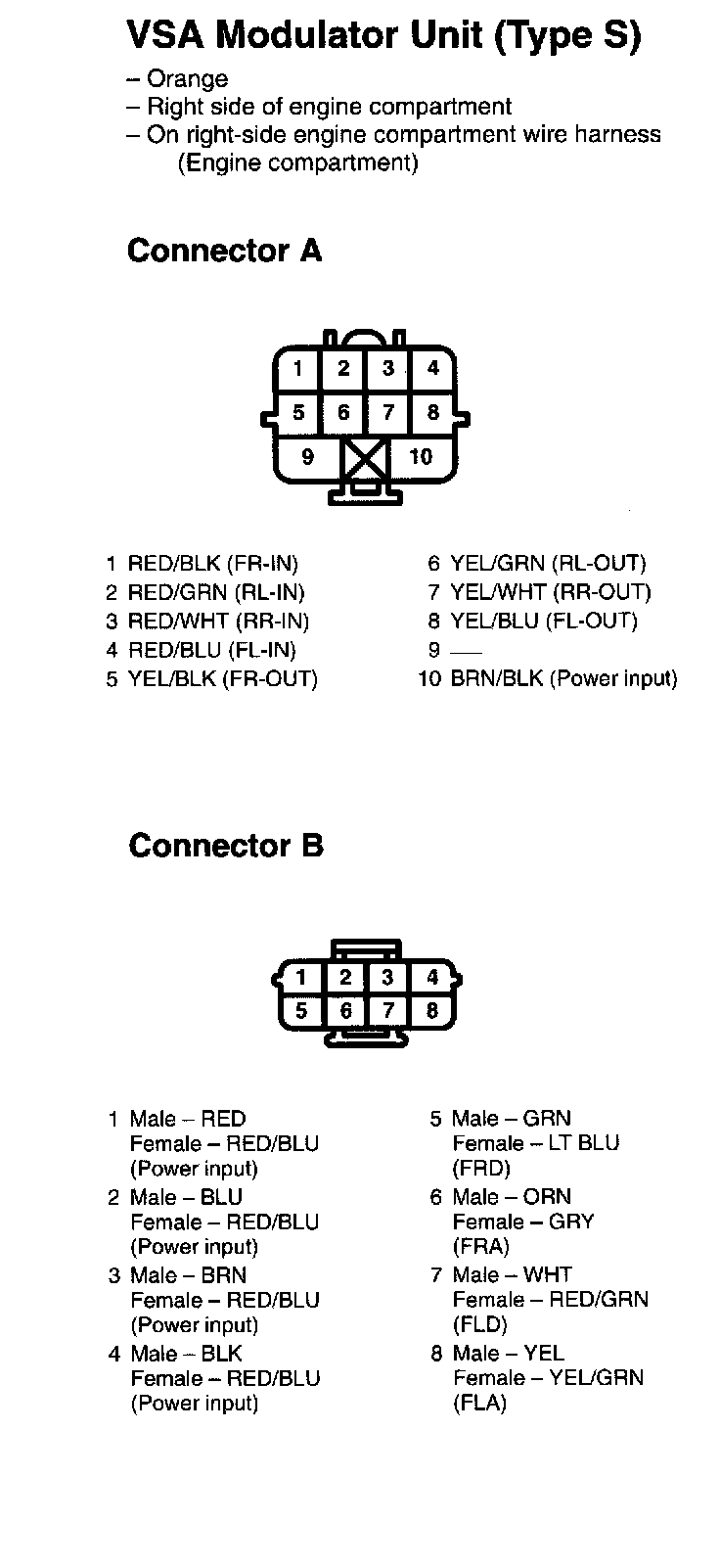

VSA Modulator Unit (Type S) Connectors A, B:
