General Module

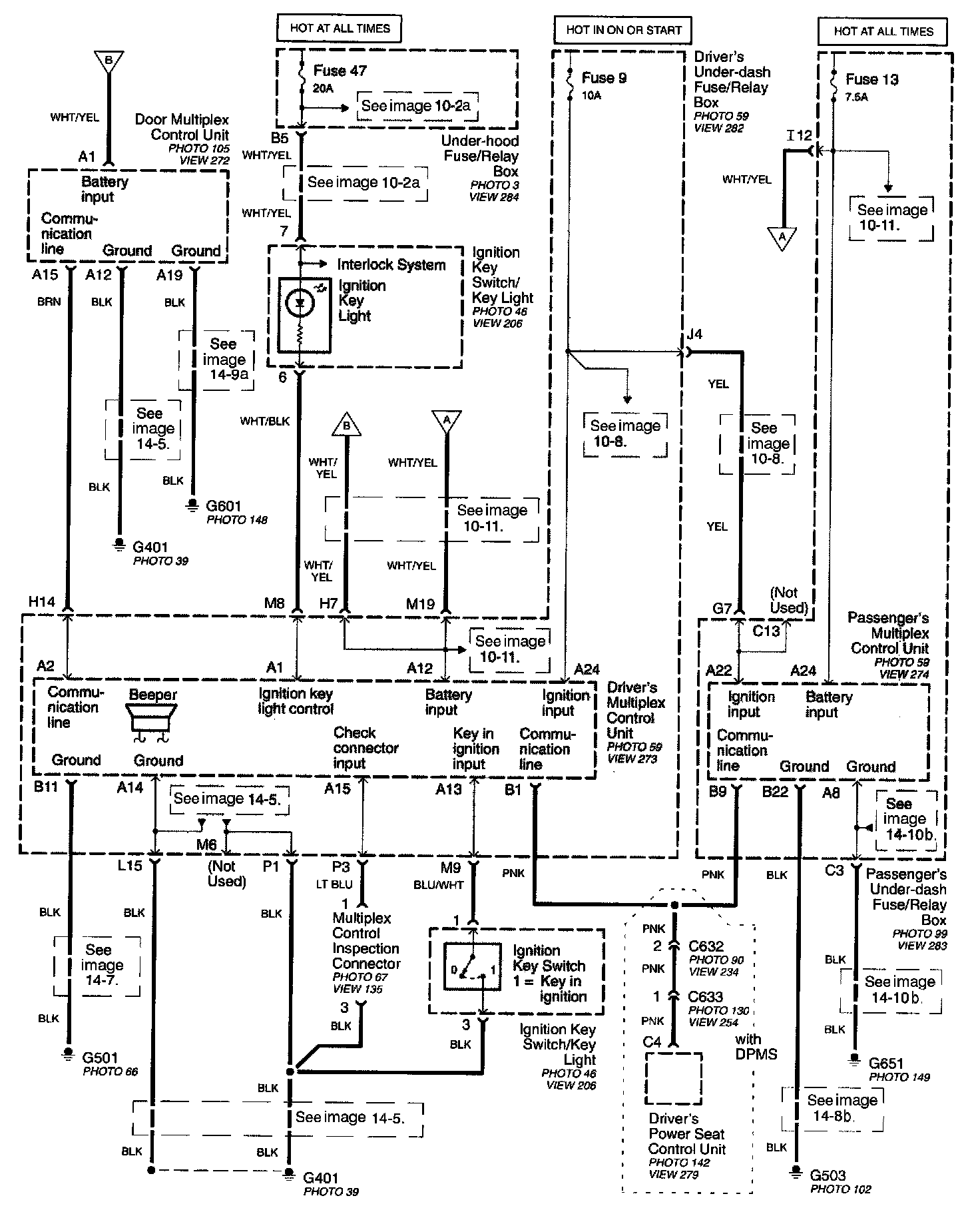

Multiplex Control System Image 50:

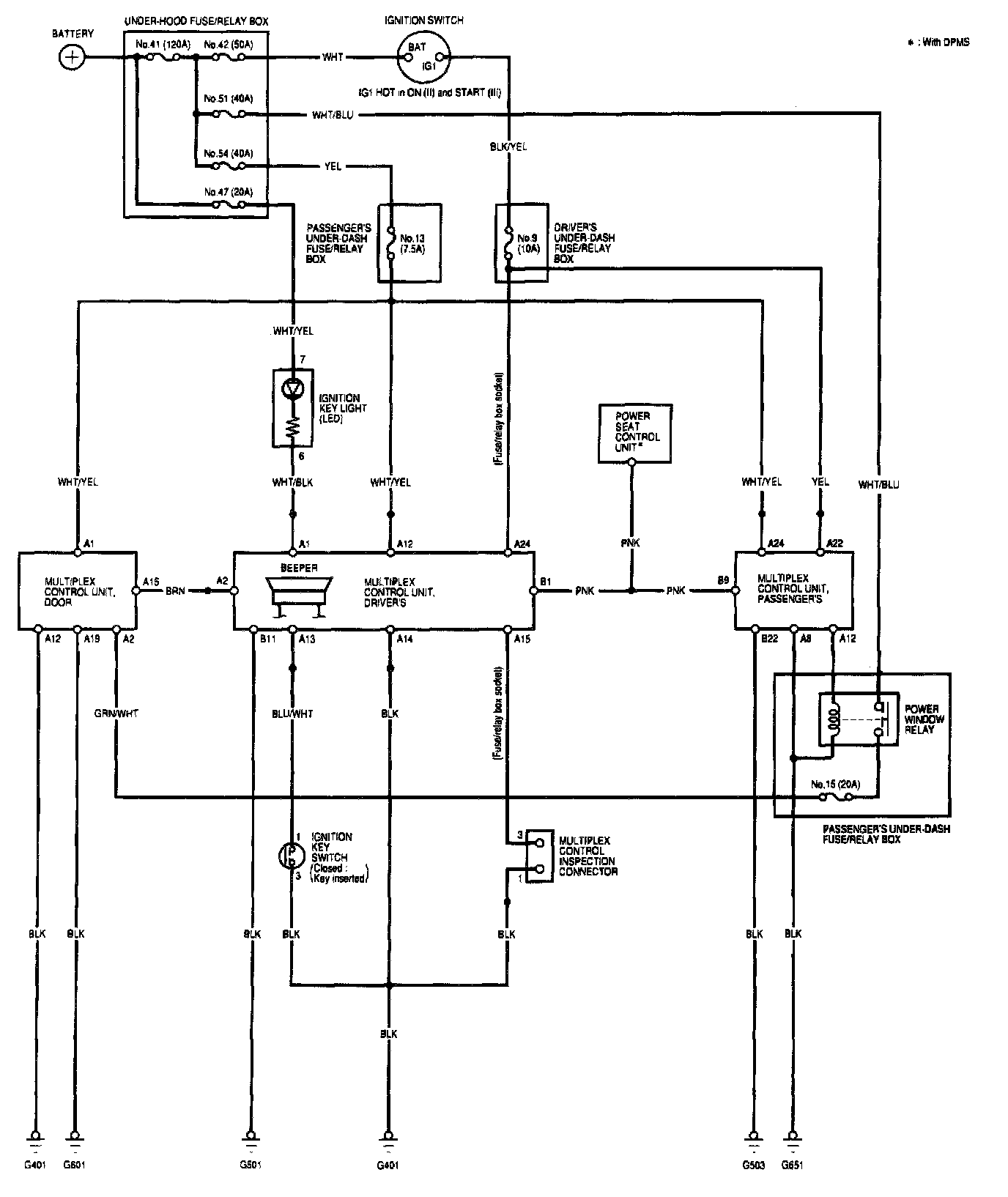

Multiplex Control System (Power, Ground, Communication Lines) - Circuit Diagram:
