Under-Dash Fuse/Relay Box,

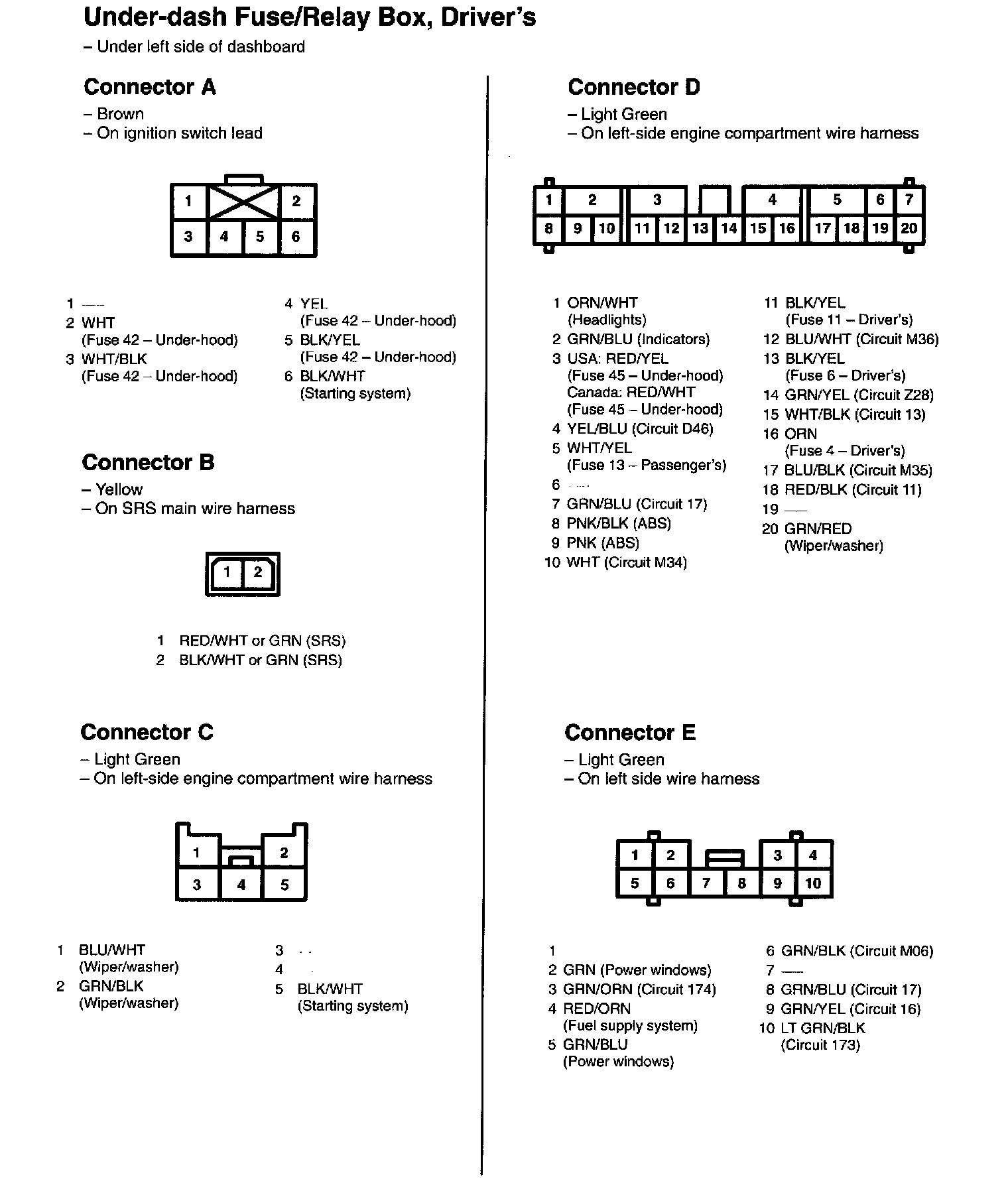

Under-dash Fuse/Relay Box, Driver's (Connector A - E):



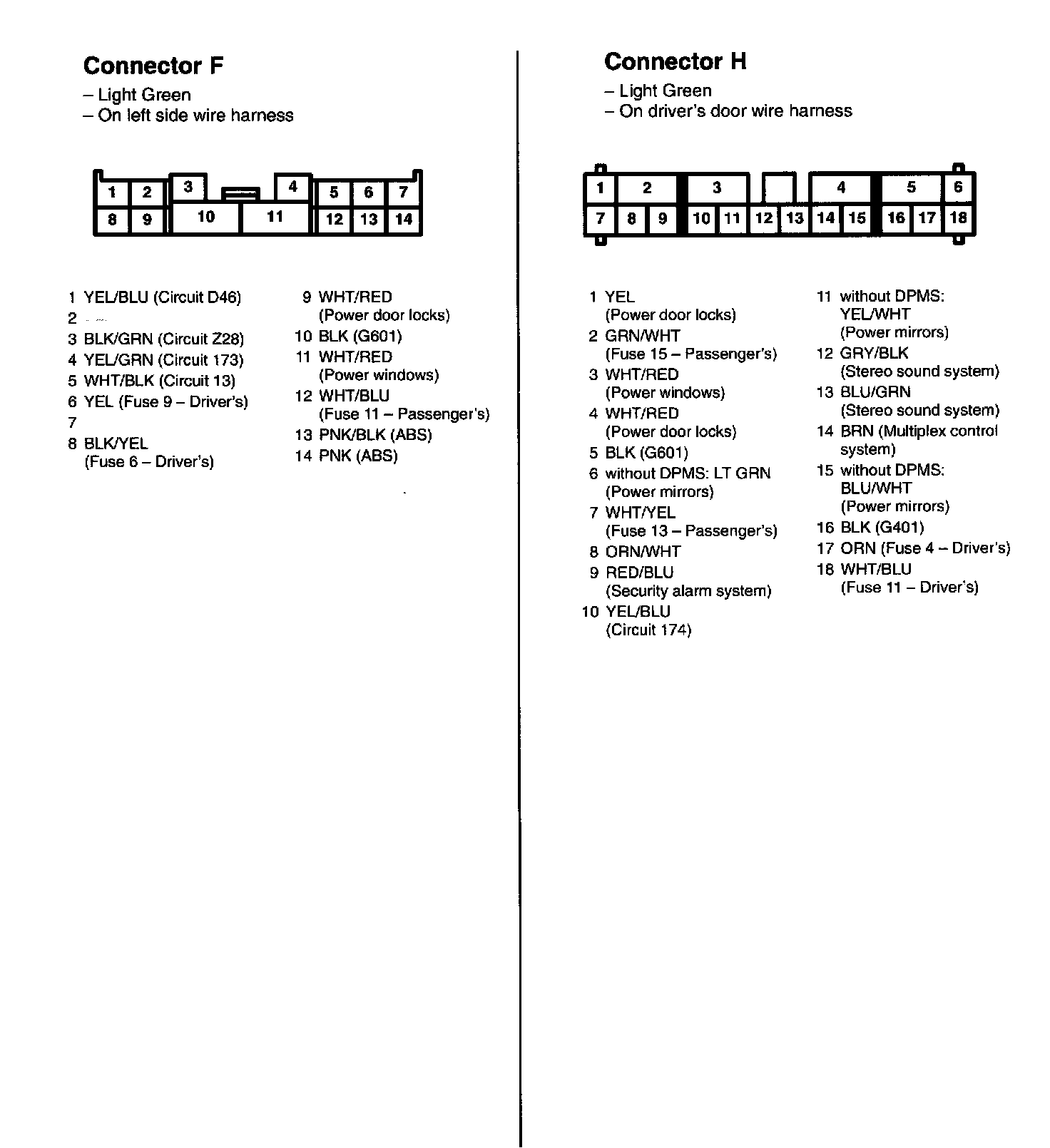

Under-dash Fuse/Relay Box, Driver's (Connector F - H):



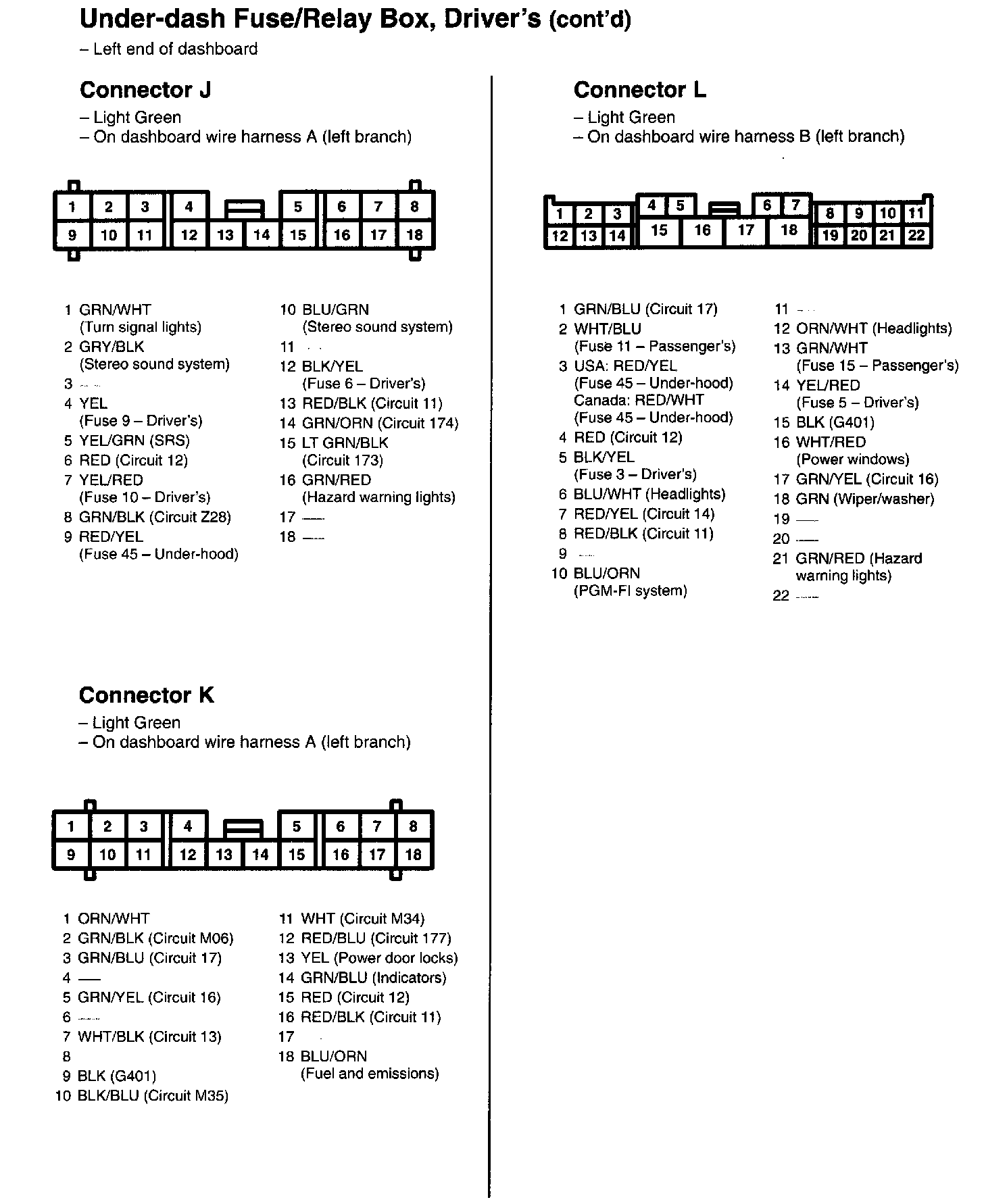

Under-dash Fuse/Relay Box, Driver's (Connector J - L) (Part 1):

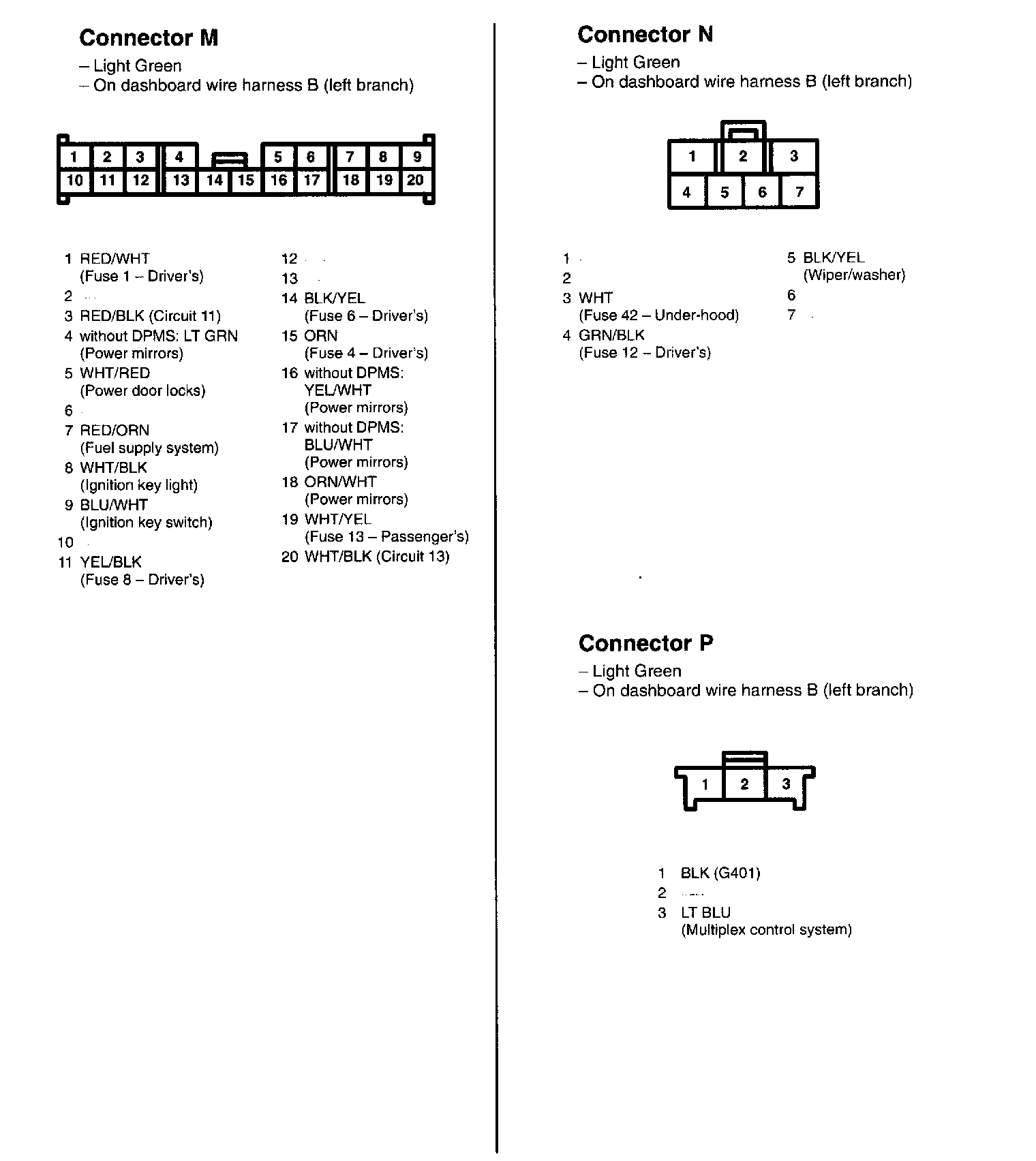

Under-dash Fuse/Relay Box, Driver's (Connector M - P) (Part 2):
