Home >> Acura >> 2001 >> Integra GS-R L4-1797cc 1.8L DOHC (VTEC) PGM-FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electric Load Sensor >> Locations

Electric Load Sensor: Locations

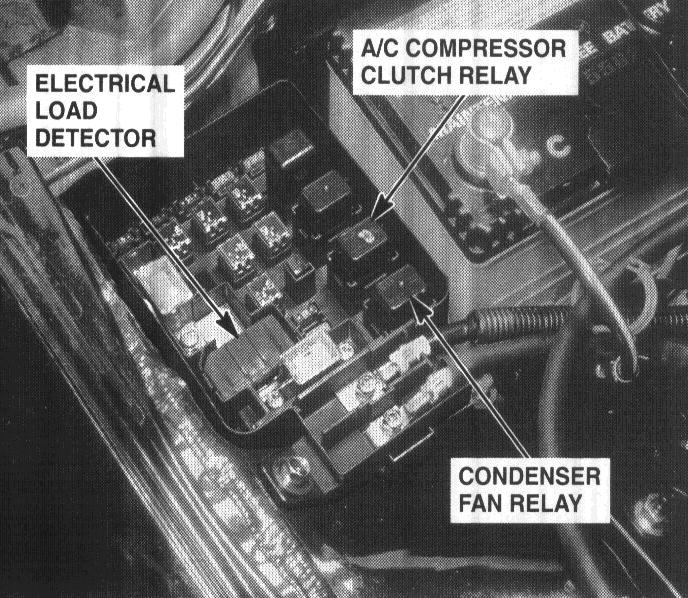

23. Right Rear Corner of Engine Compartment:
