Home >> Acura >> 2001 >> Integra GS-R L4-1797cc 1.8L DOHC (VTEC) PGM-FI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Automatic Transaxle

Automatic Transaxle

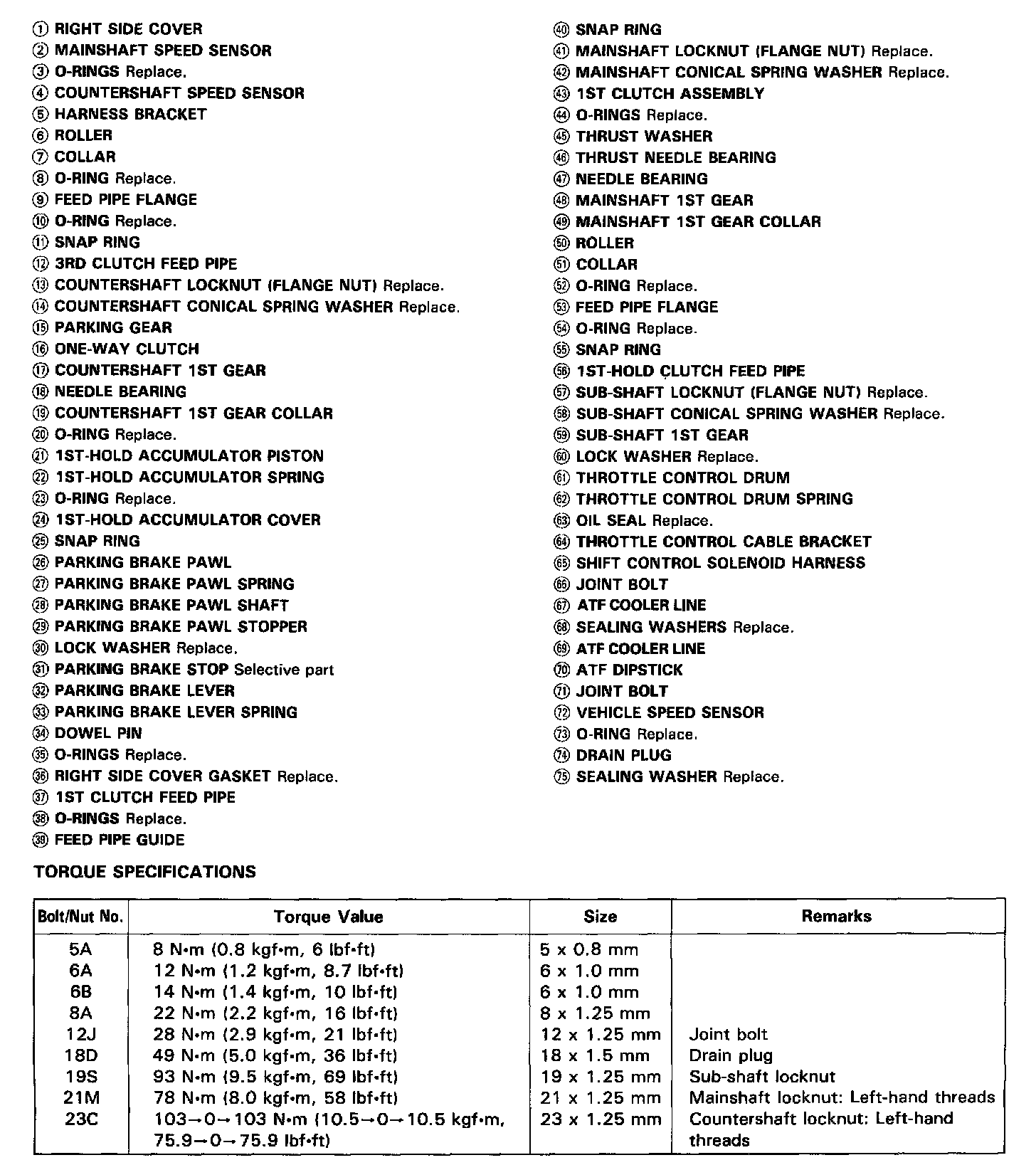

TRANSMISSION/RIGHT SIDE COVER

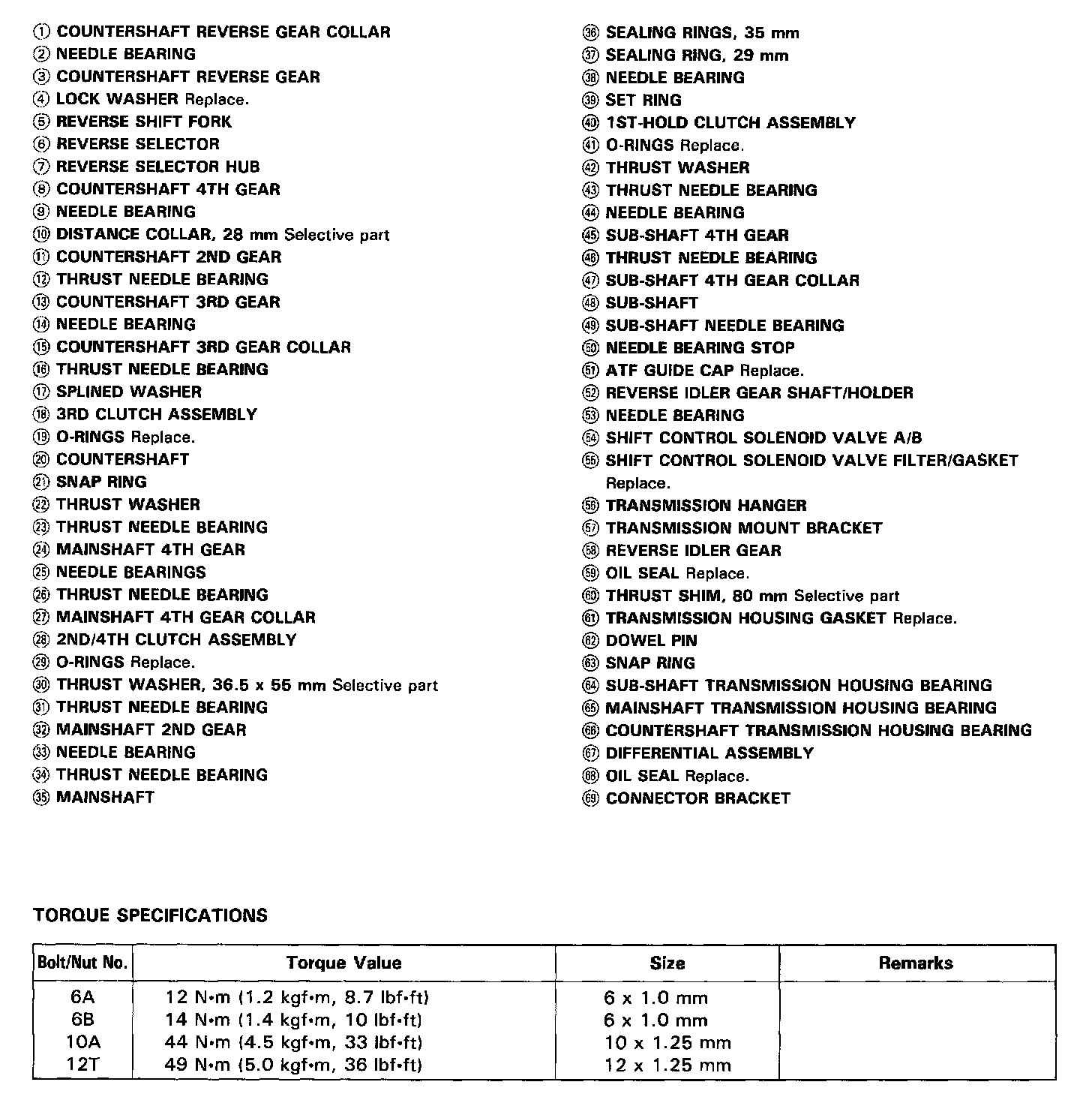

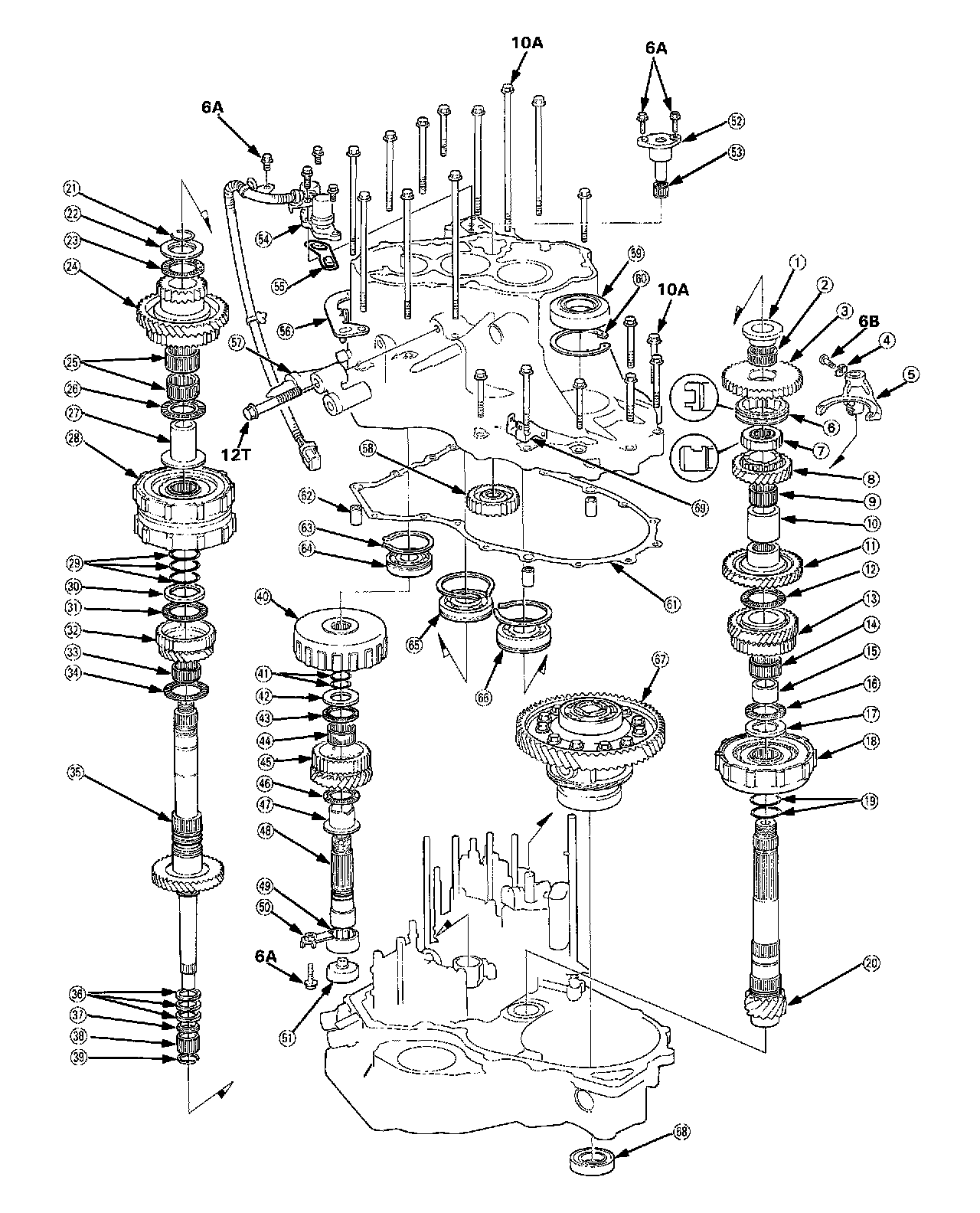

TRANSMISSION HOUSING

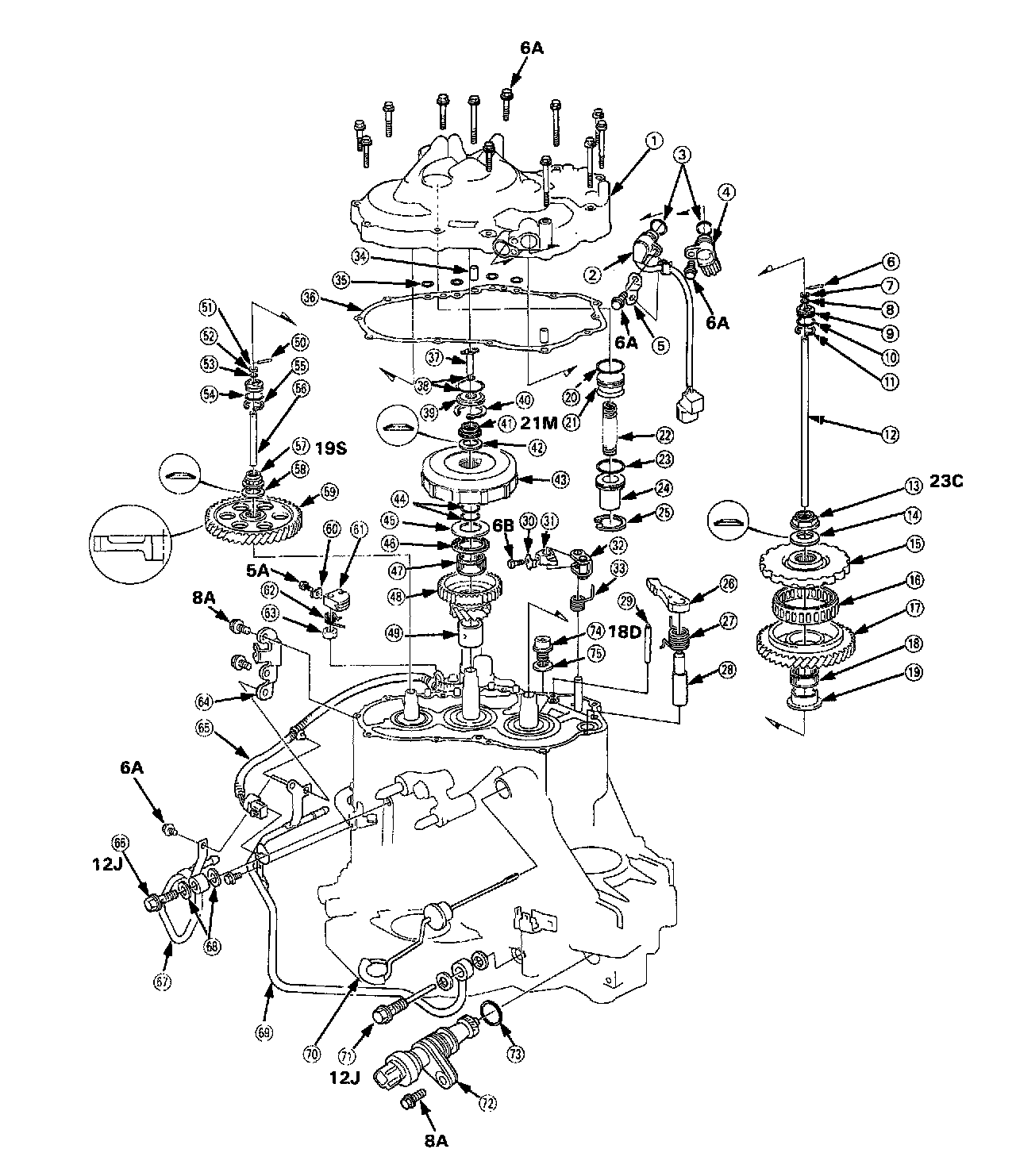

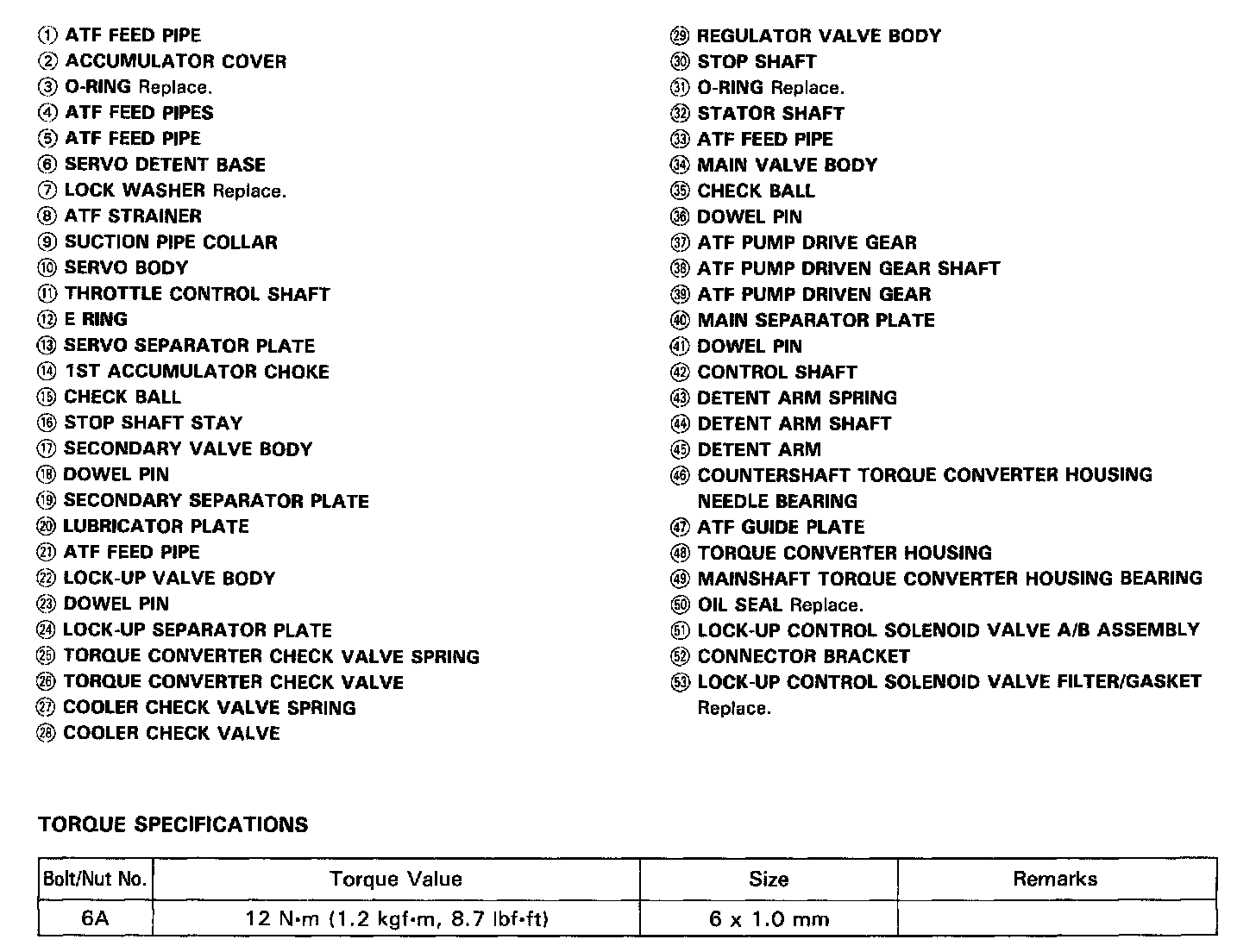

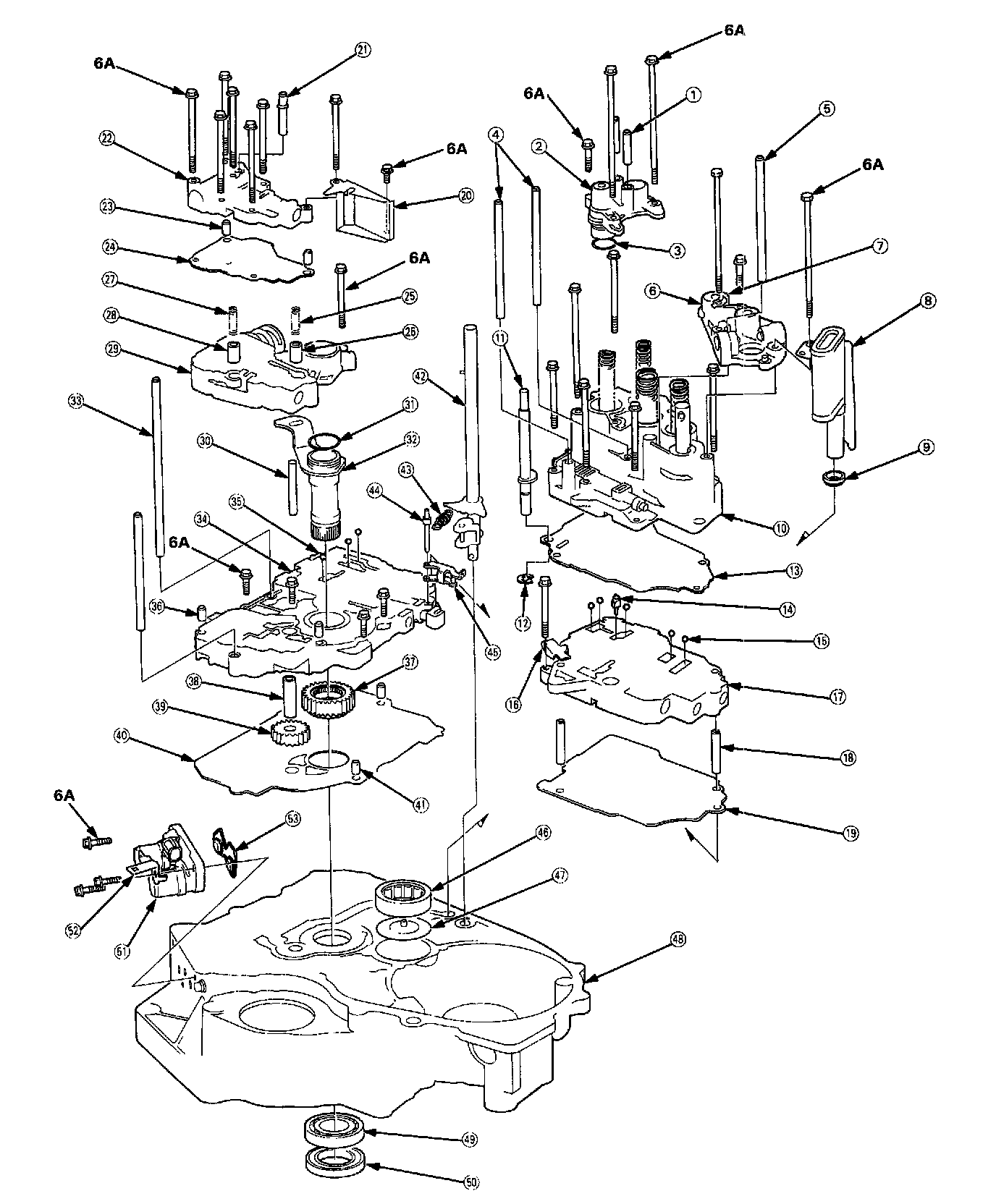

TORQUE CONVERTER HOUSING/VALVE BODY
