Cylinder Head

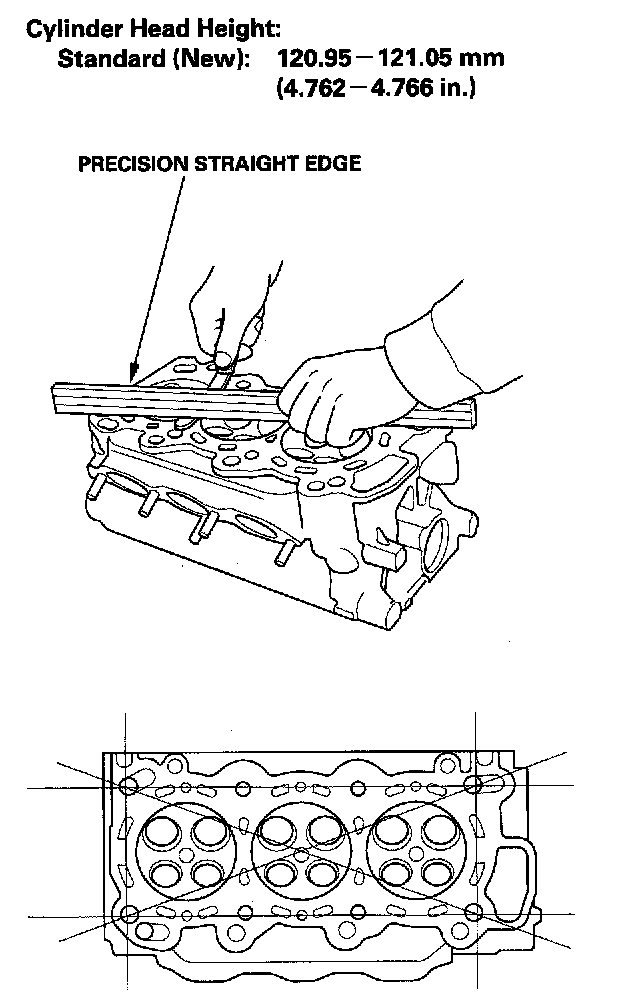

Cylinder Head Height

Maximum Resurface Limit: 0.2 mm (0.008 inch) based on a height of 121 mm (4.76 inch).





Cylinder Head Bolts Torque Sequence
1st step torque: 39 Nm (4.0 kgf/cm, 29 ft. lbs.)
2nd step torque: 69 Nm (7.0 kgf/cm, 51 ft. lbs.)
3rd step torque: 98.1 Nm (10.0 kgf/cm, 72.3 ft. lbs.)





Camshaft Torque and Sequence





Cylinder Head Cover Torque and Sequence
Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence, to 12 Nm (1.2 kgf/cm, 8.7 ft. lbs.)





Upper Cover Torque





Ignition Coils - Torque
