Home >> Acura >> 2001 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Engine Mount >> Engine Mount Control Unit

Engine Mount Control Unit

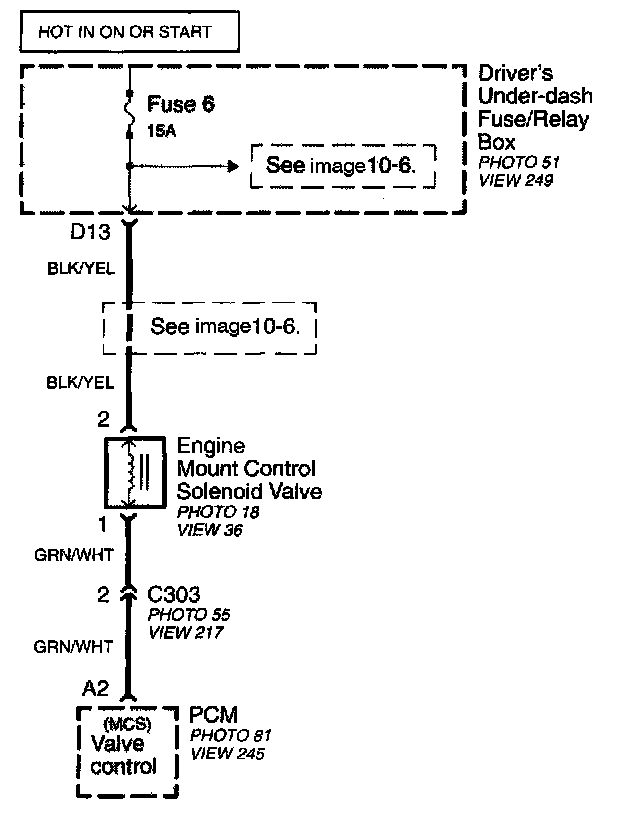

Engine Mount Control System Image 30:
