Computers and Control Systems: Locations

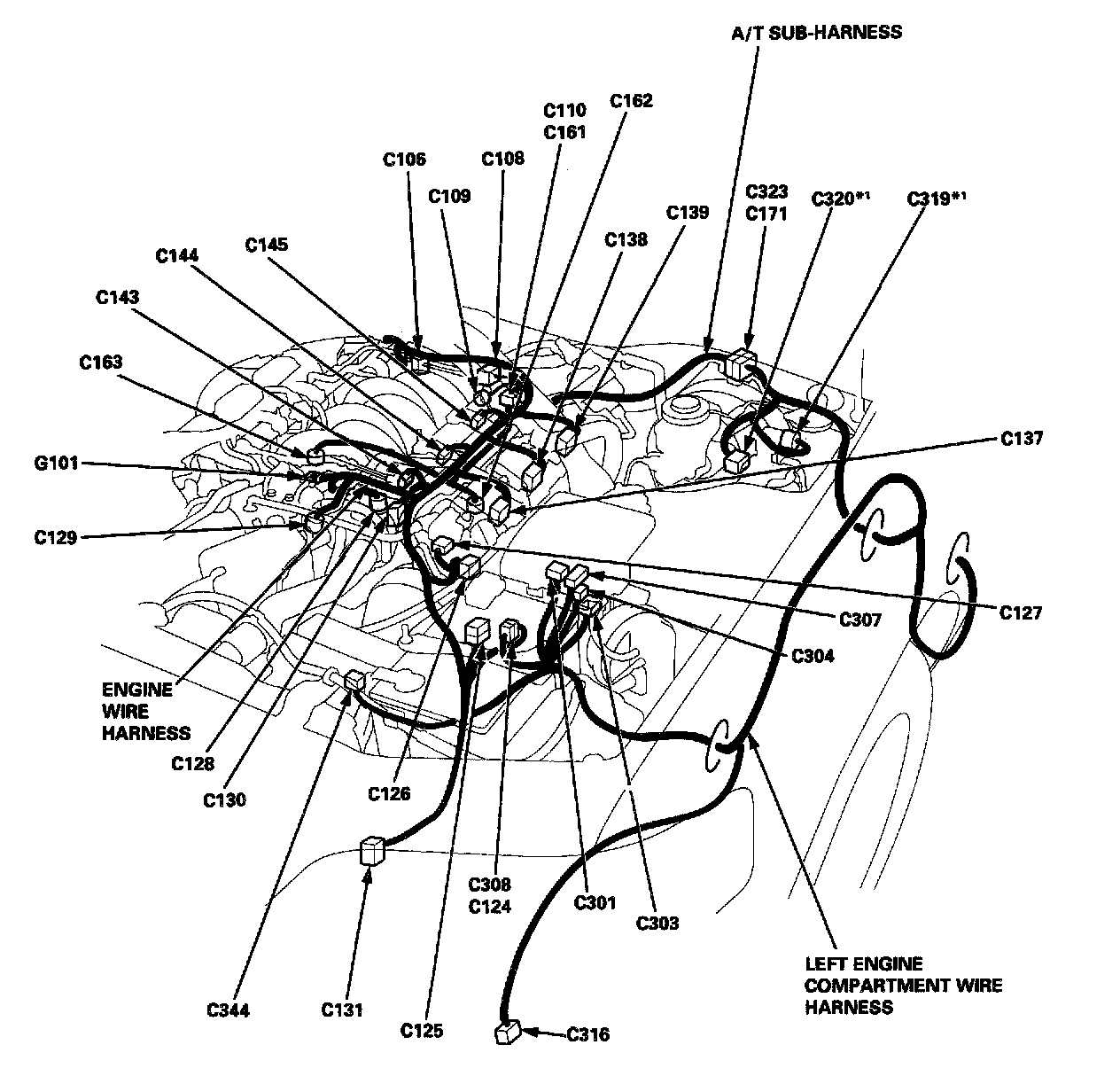

System Connectors [Engine Compartment] - Location (Part 1):

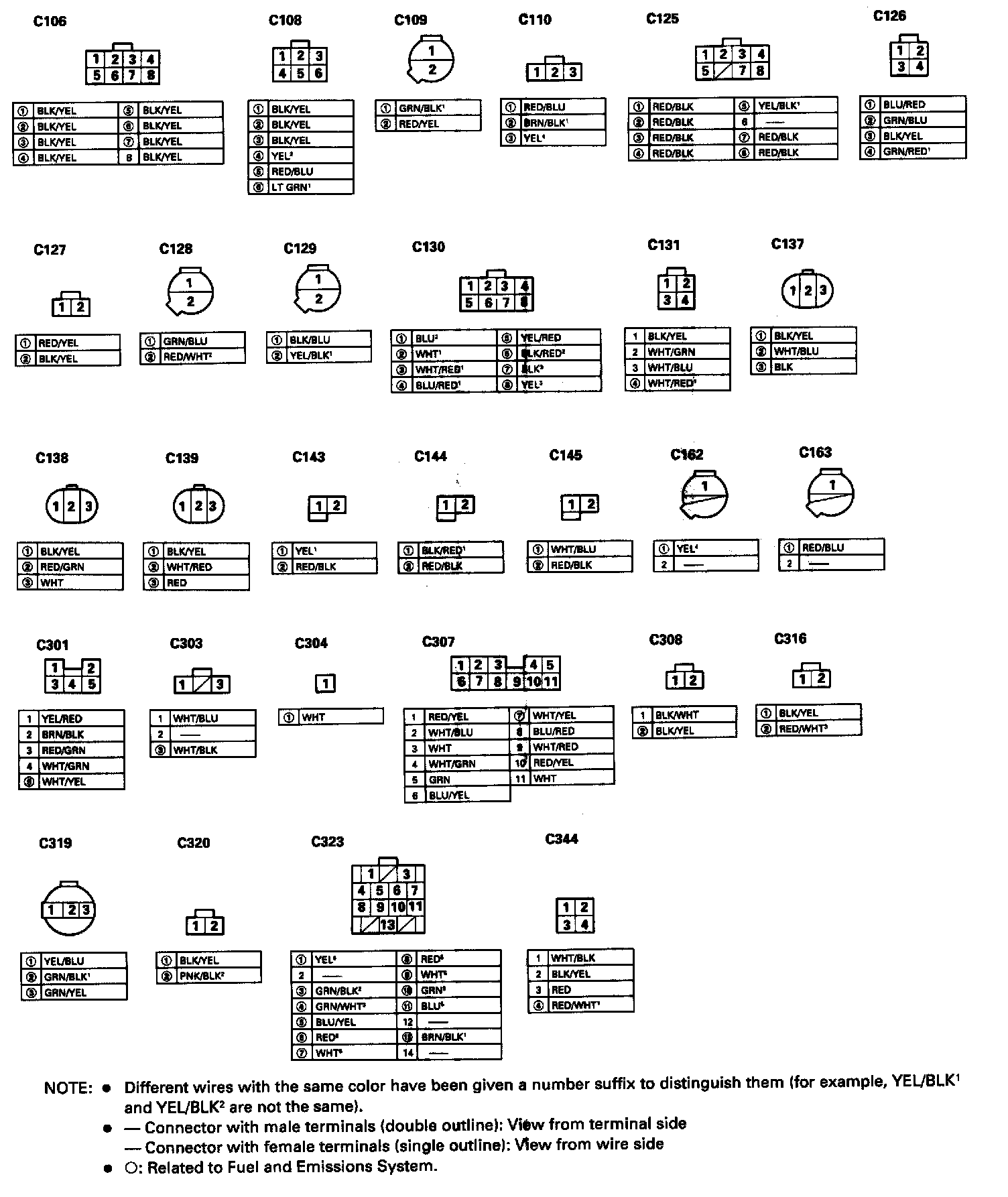

System Connectors [Engine Compartment] - View (Part 1):

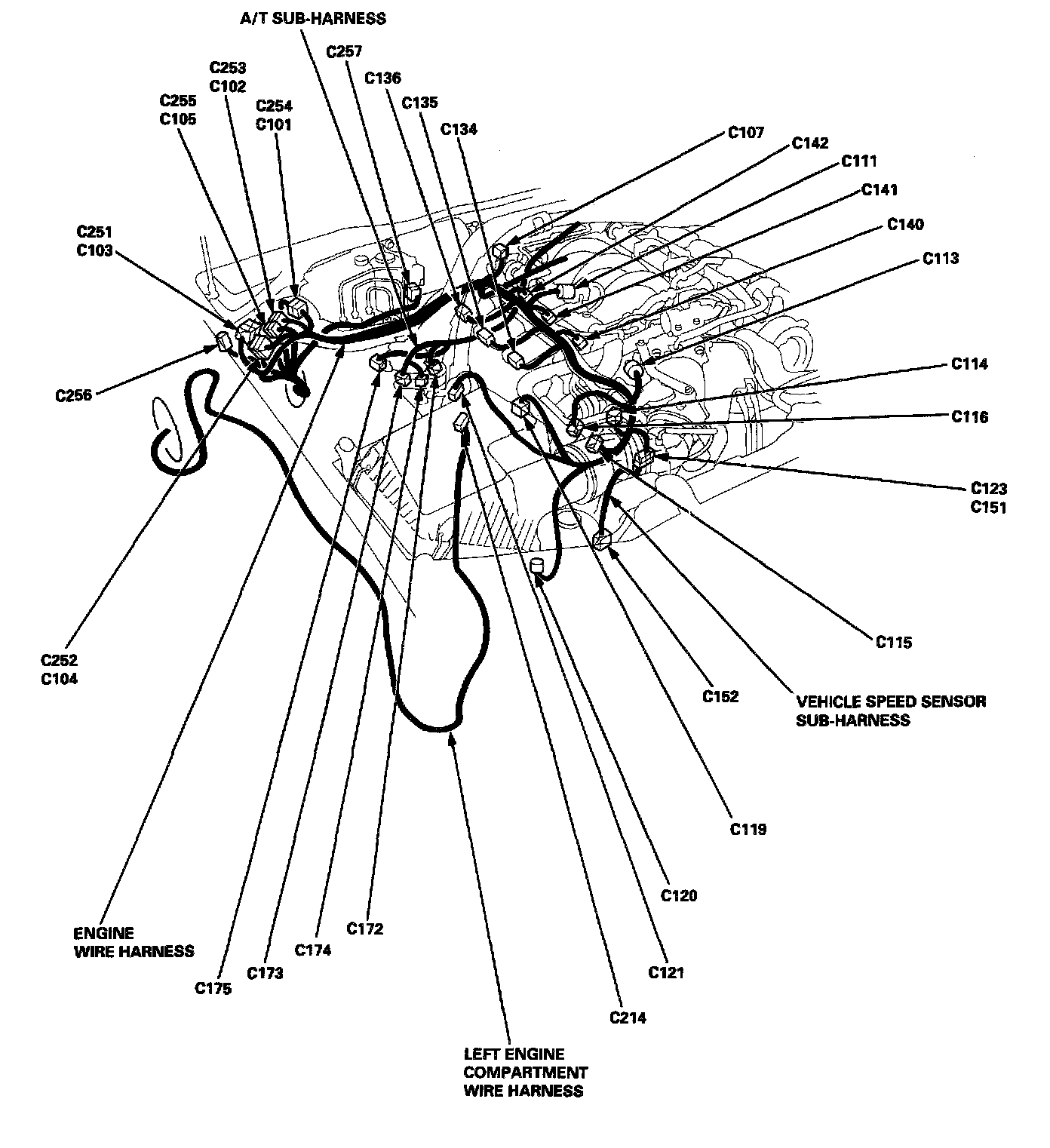

System Connectors [Engine Compartment] - Location (Part 2):

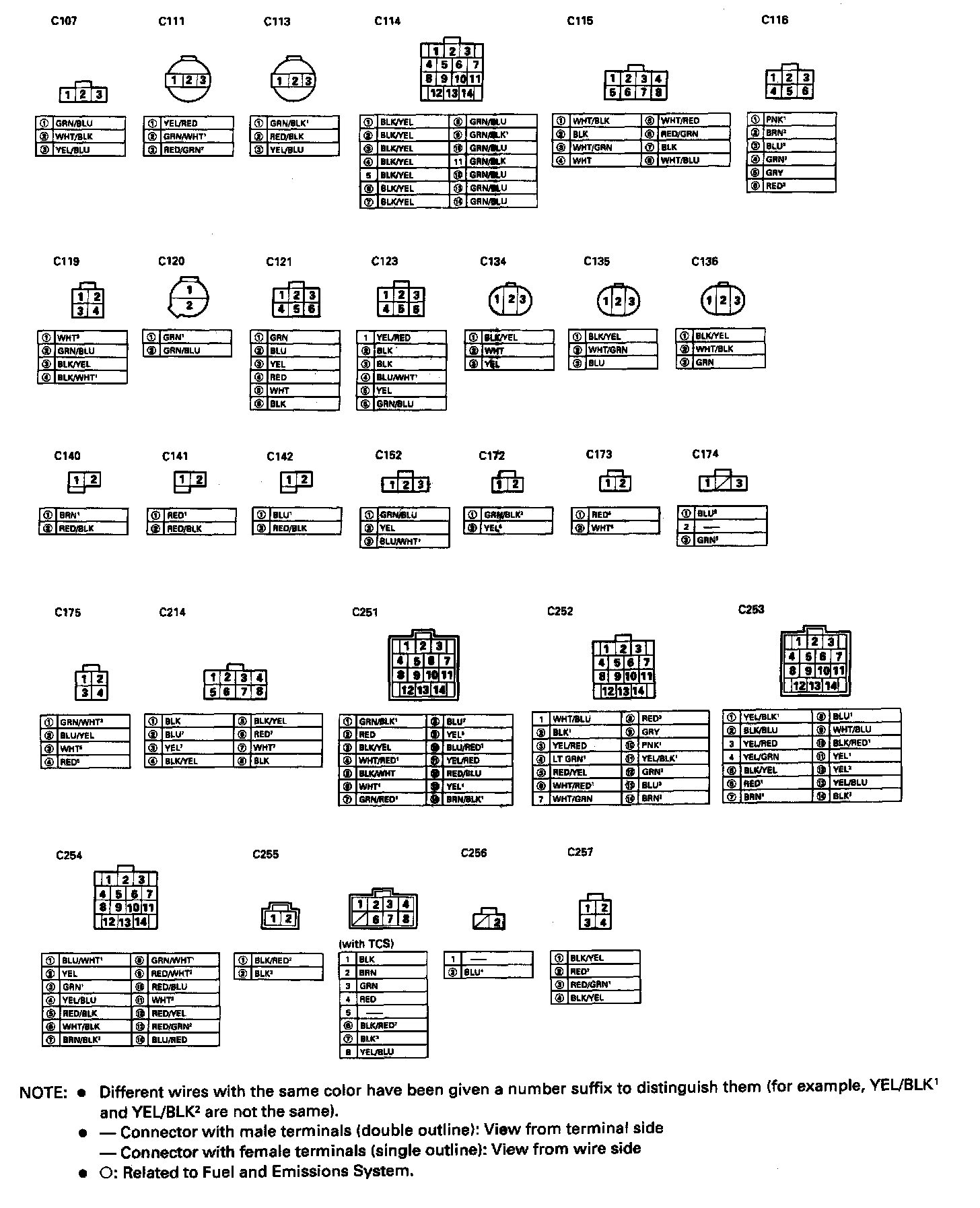

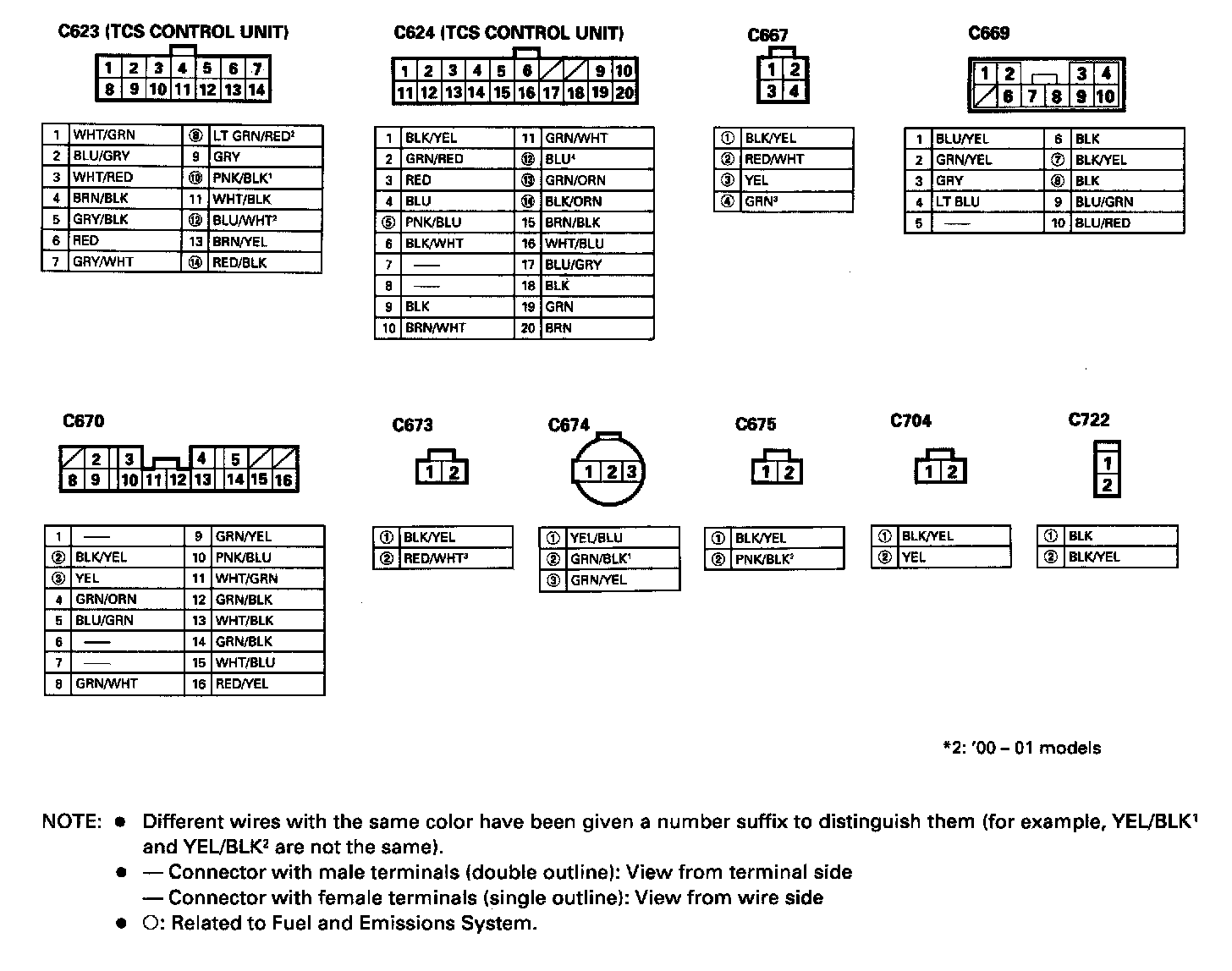

System Connectors [Engine Compartment] - View (Part 2):

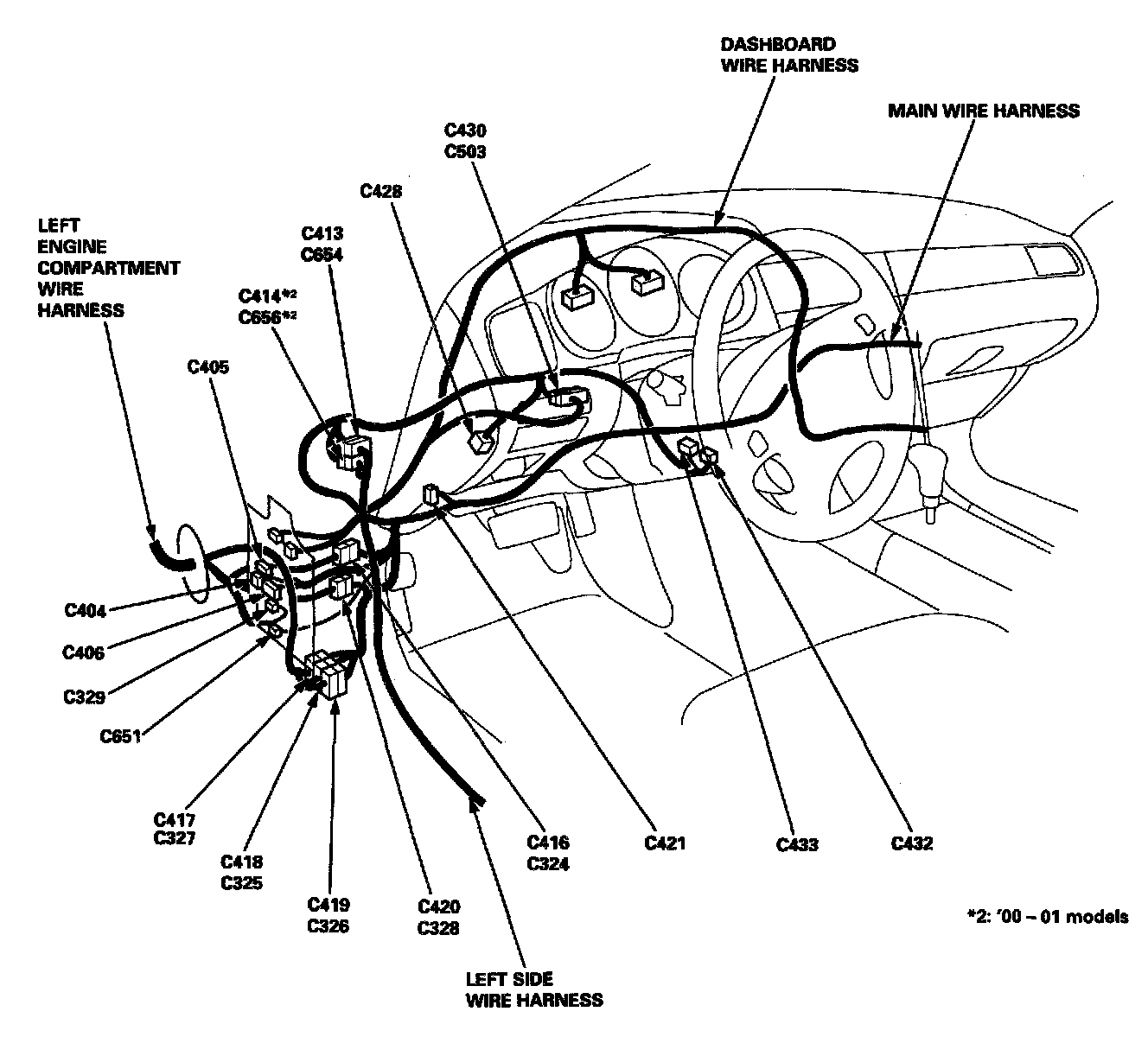

System Connectors [Dash And Floor] - Location (Part 1):

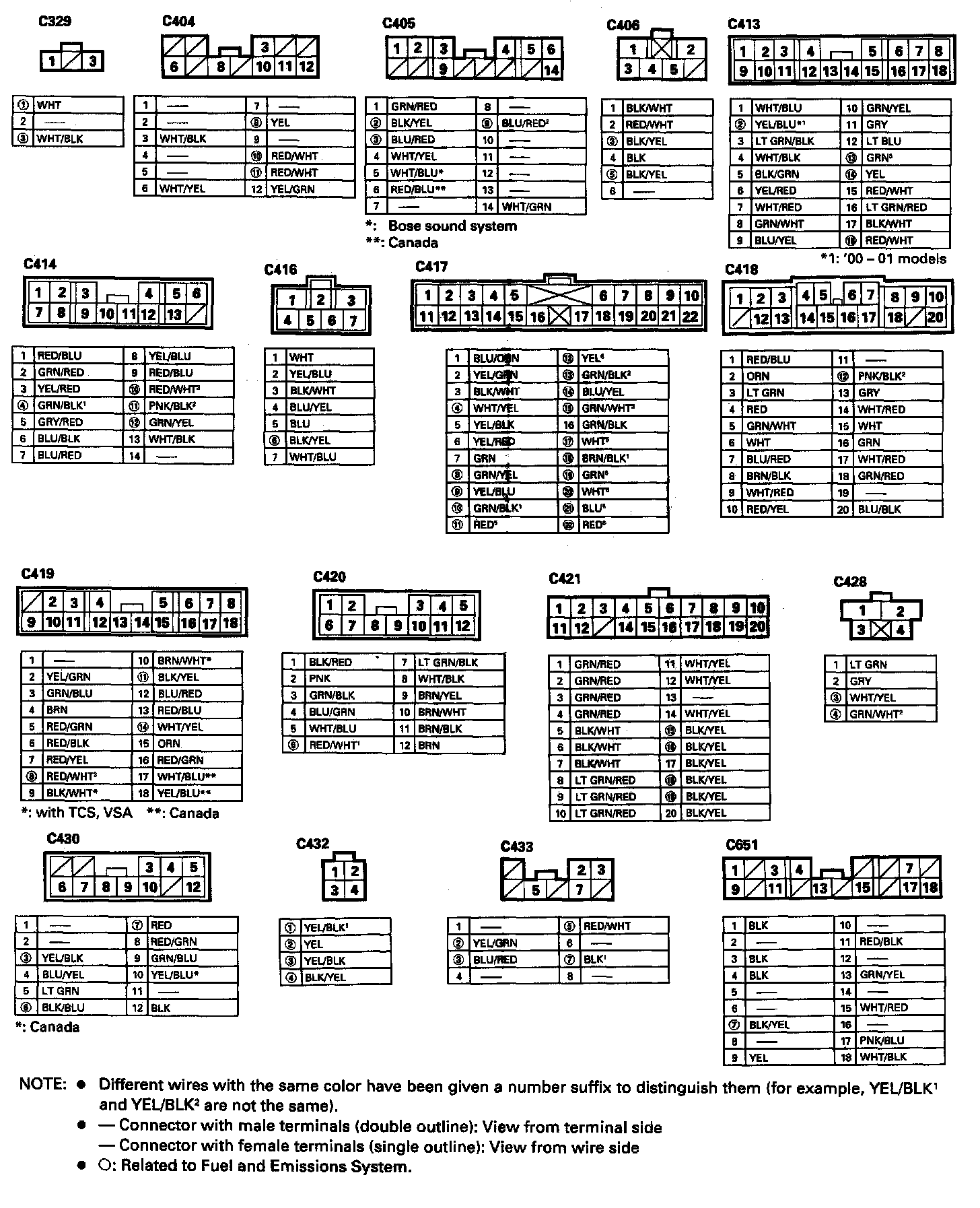

System Connectors [Dash And Floor] - View (Part 1):

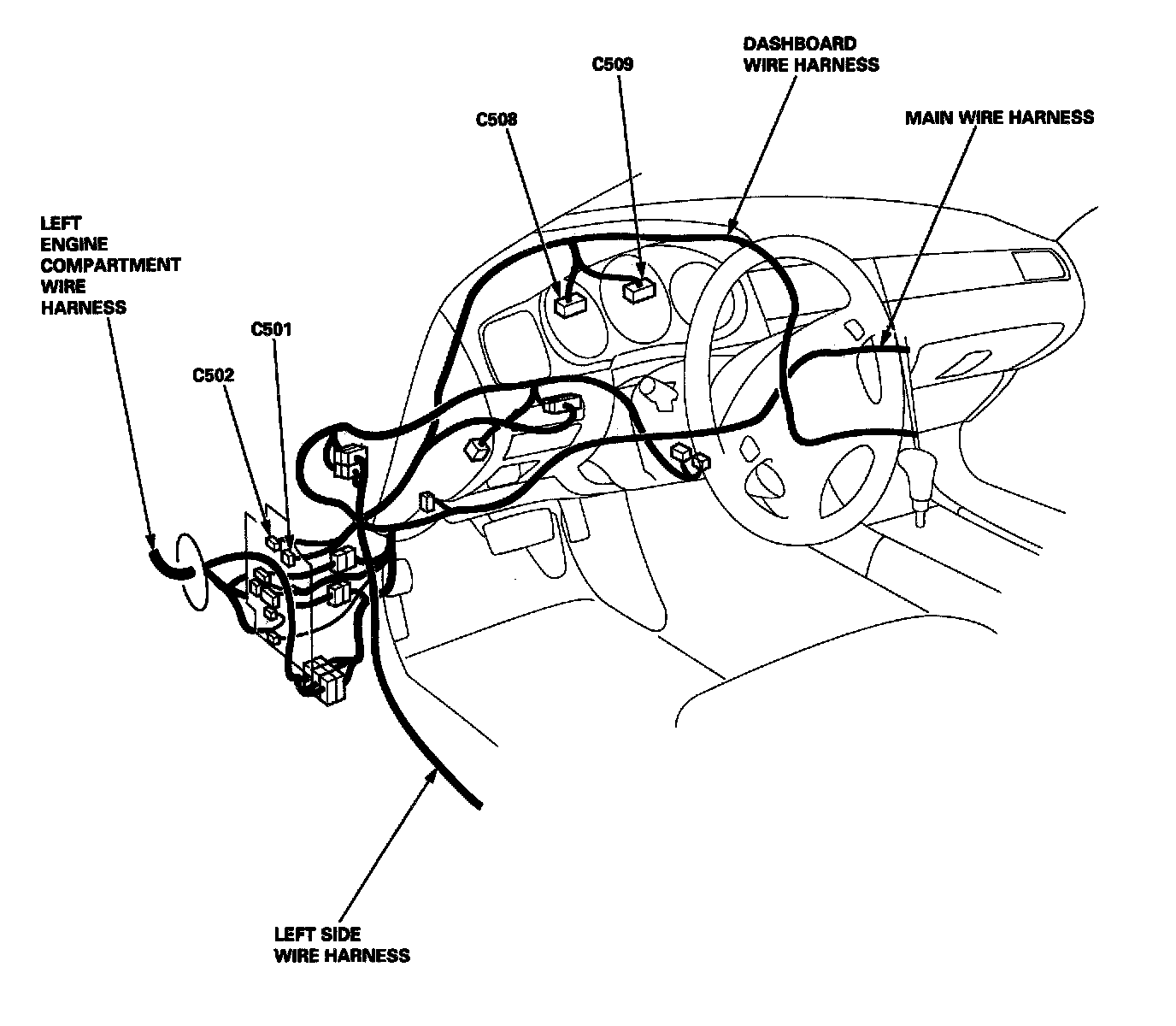

System Connectors [Dash And Floor] - Location (Part 2):

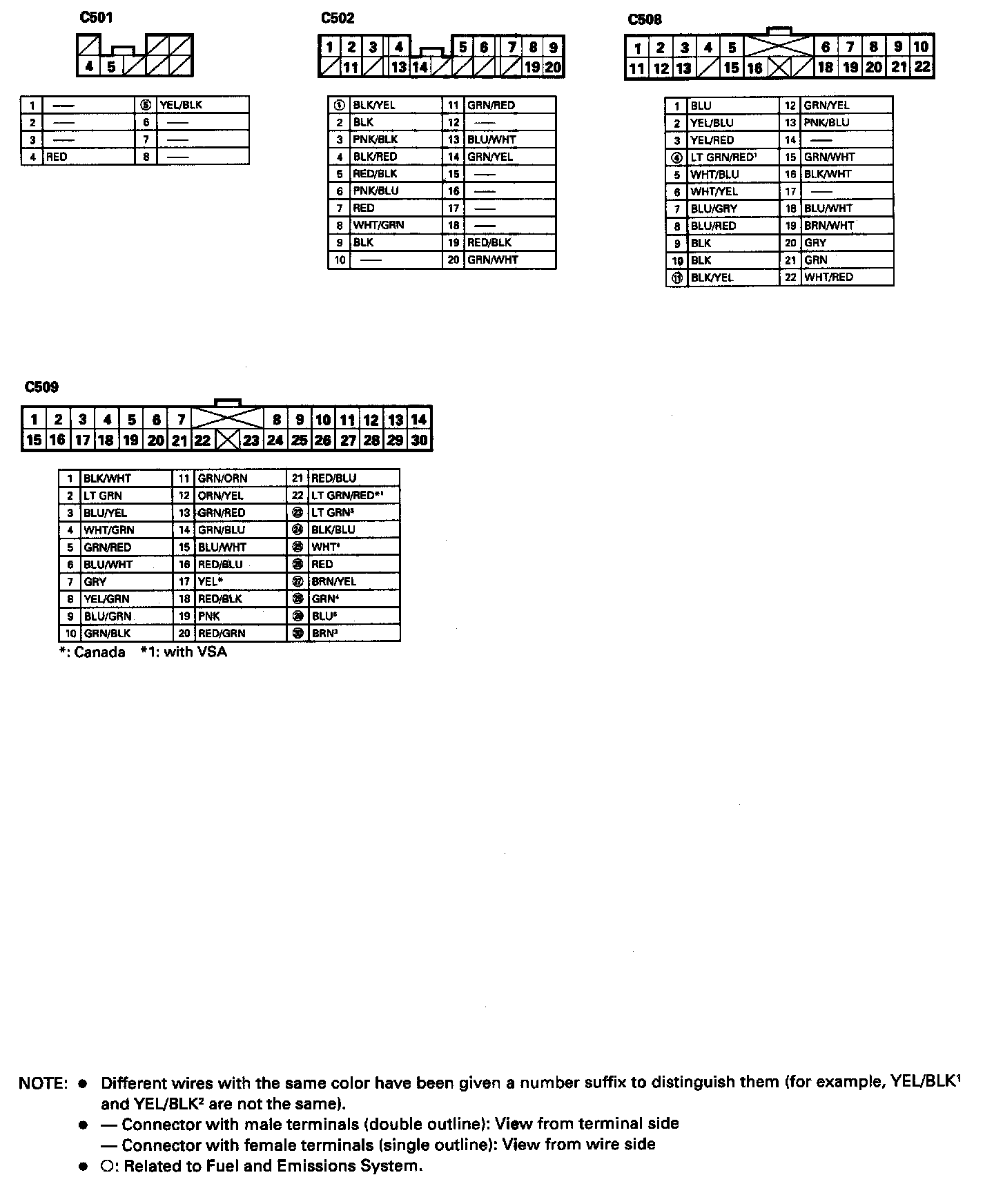

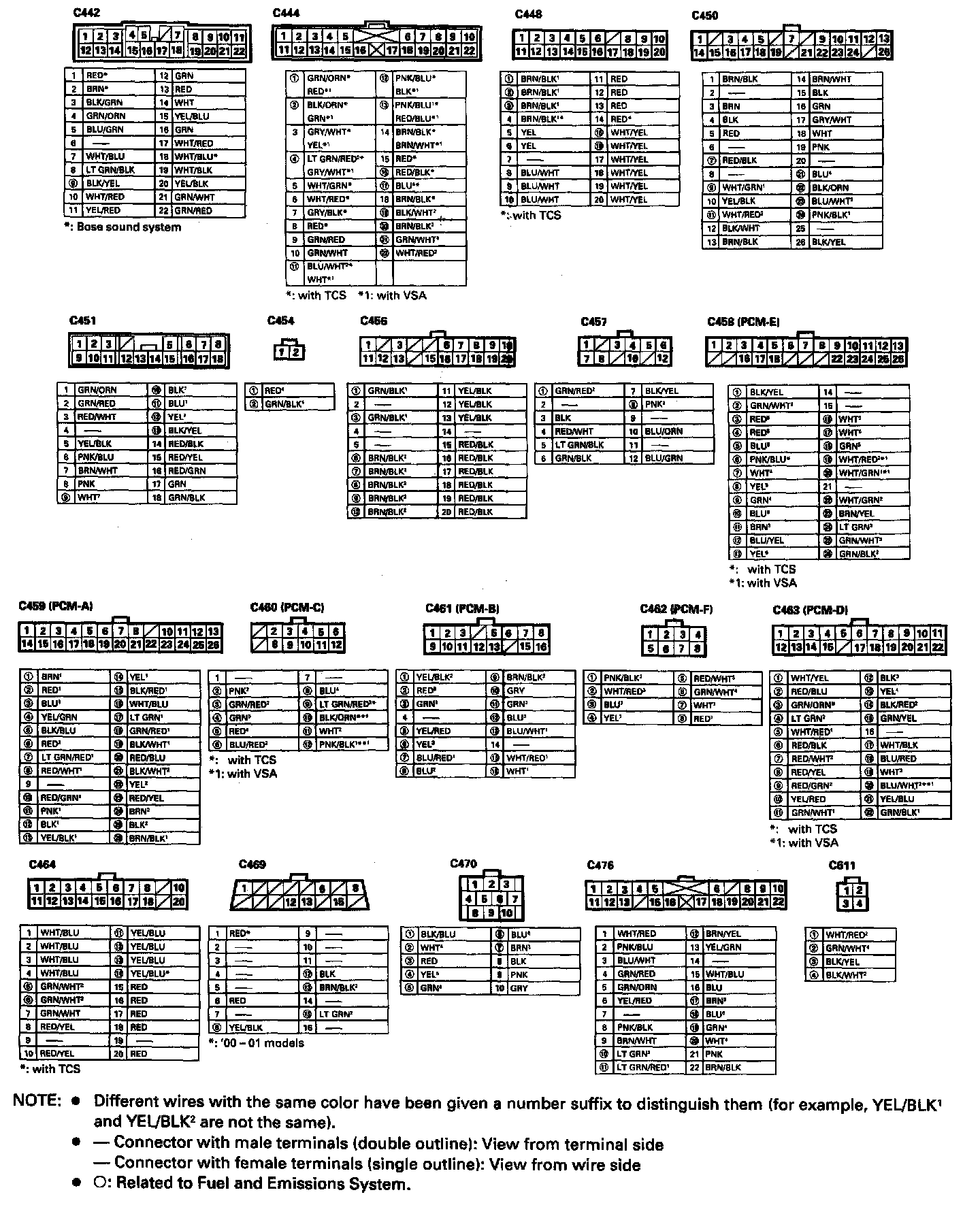

System Connectors [Dash And Floor] - View (Part 2):

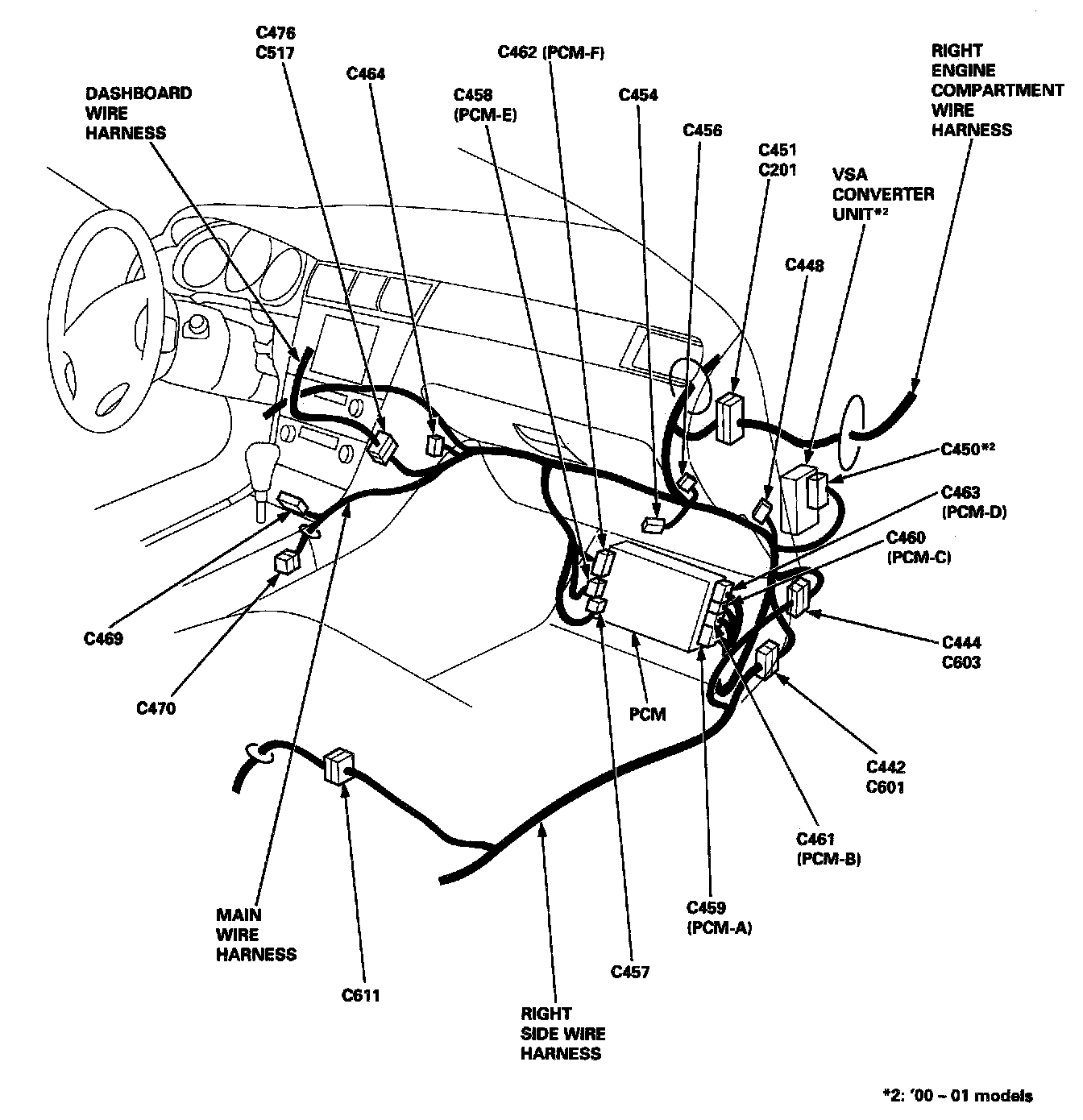

System Connectors [Dash And Floor] - Location (Part 3):

System Connectors [Dash And Floor] - View (Part 3):

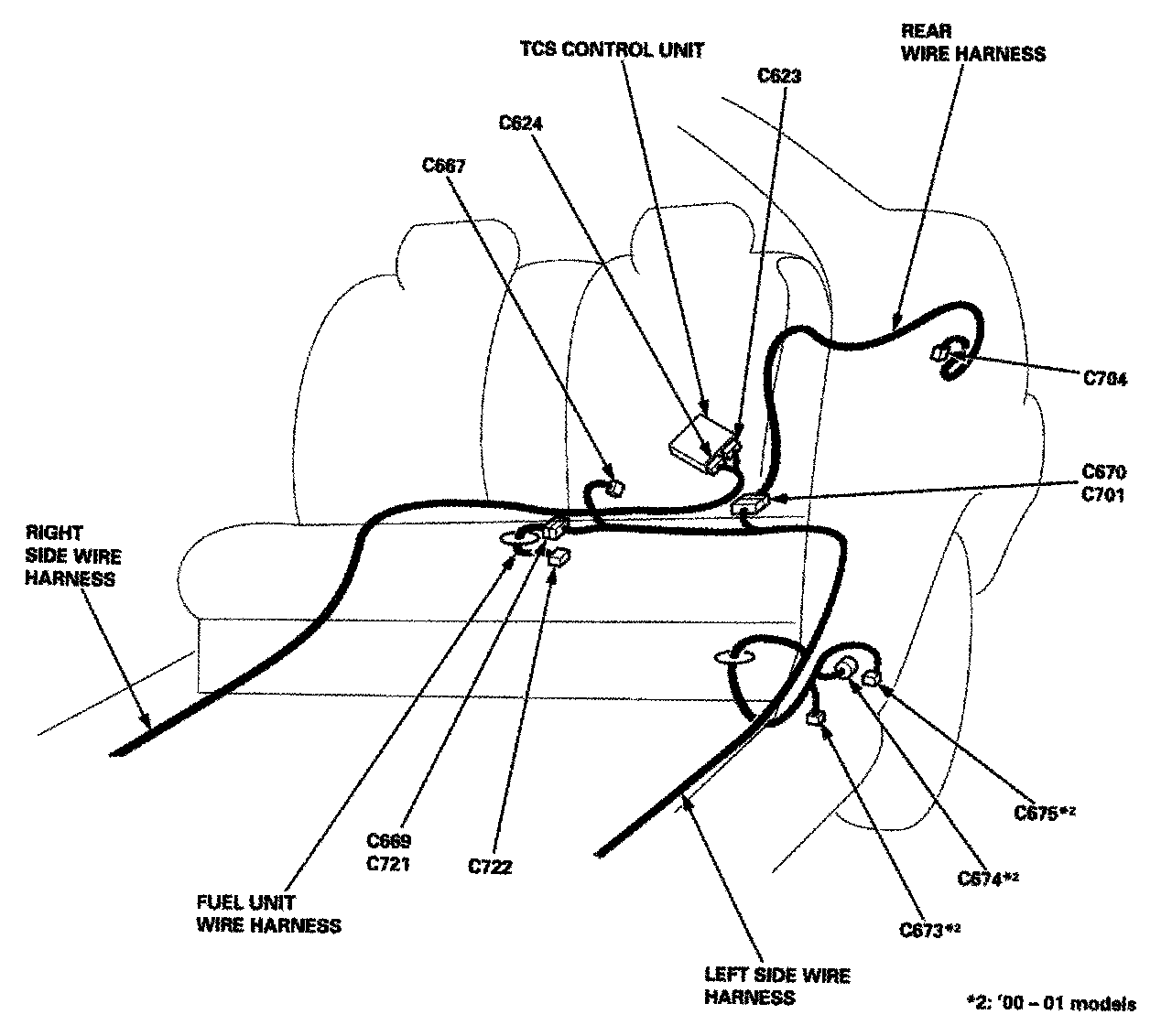

System Connectors [Dash And Floor] - Location (Part 4):

System Connectors [Dash And Floor] - View (Part 4):
