Acura
>>
2000
>>
RL V6-3474cc 3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

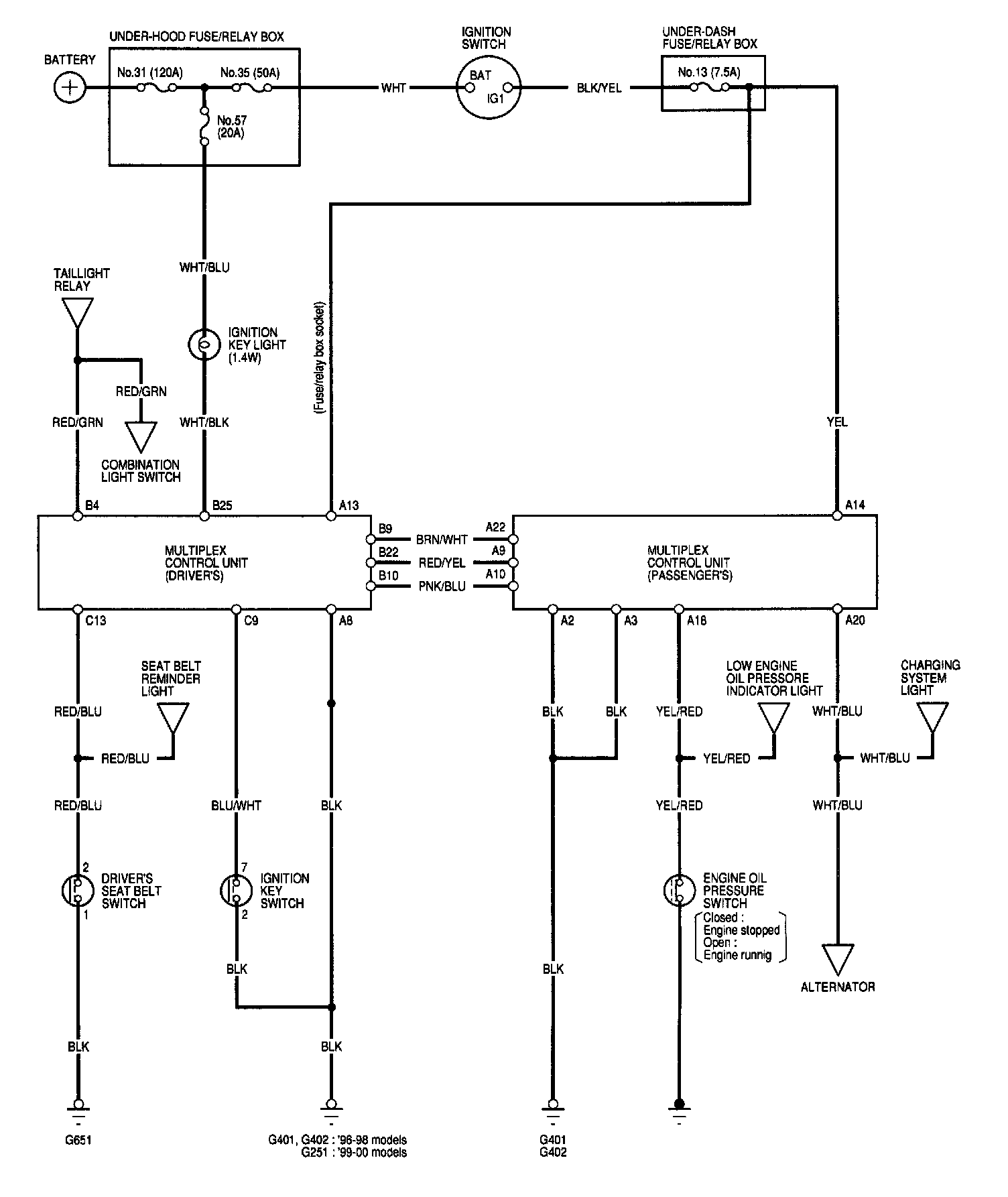

Integrated Control Unit
Integrated Control Unit
Integrated Control:
