Home >> Acura >> 2000 >> RL V6-3474cc 3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Component Locations

Component Locations

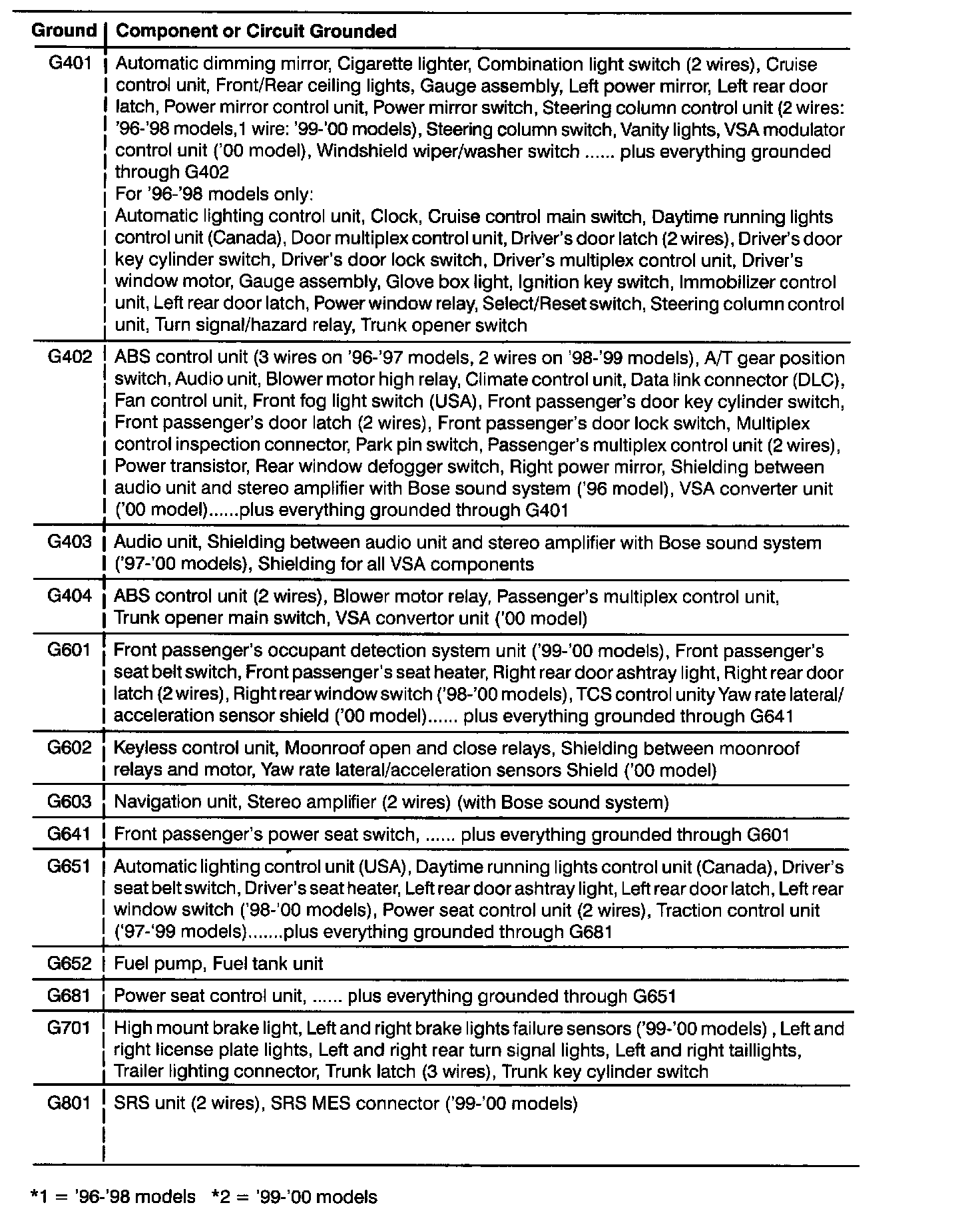

Part 1 Of 2:

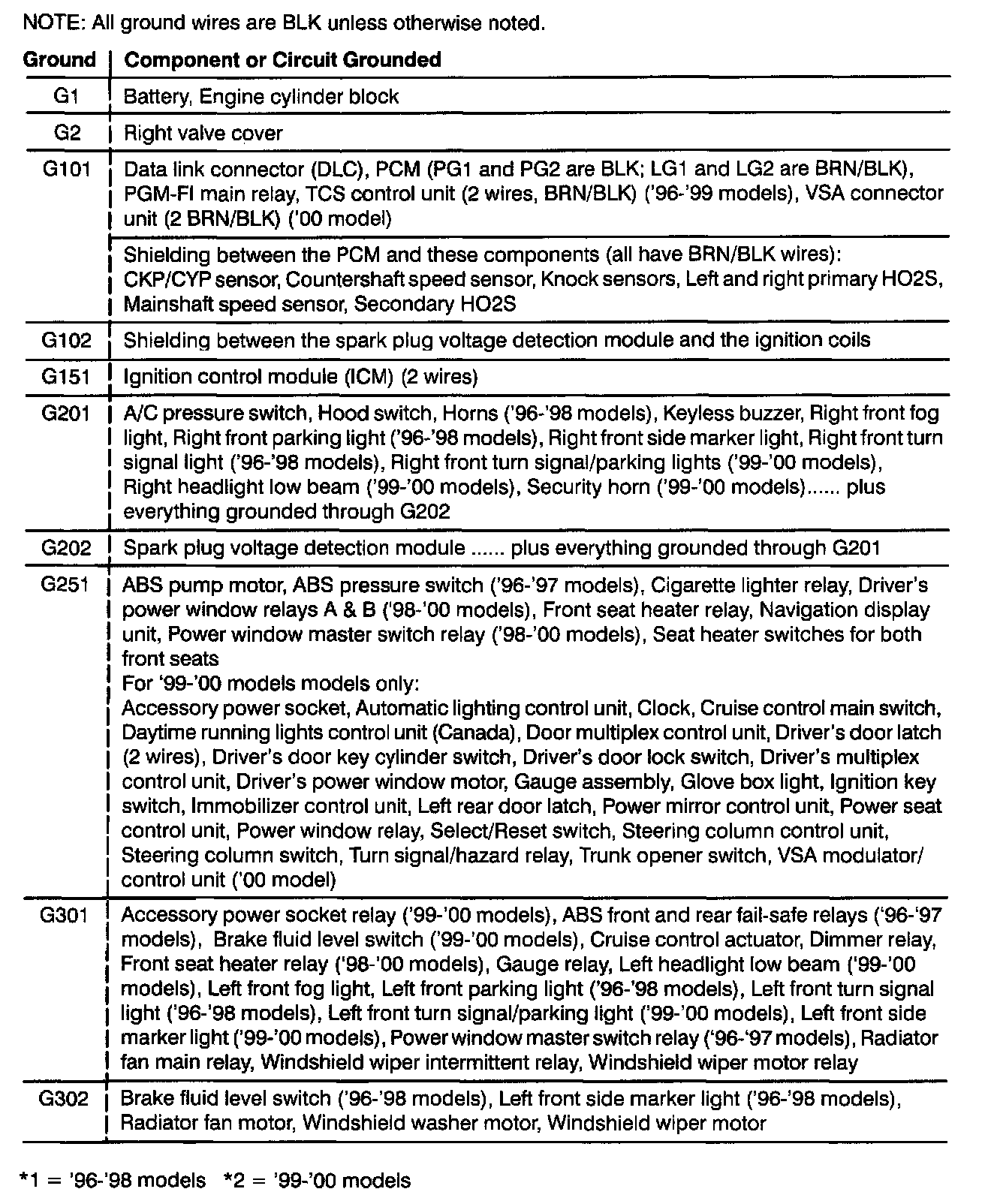

Part 2 Of 2:
