Home >> Acura >> 2000 >> RL V6-3474cc 3.5L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector Index

Connector Index

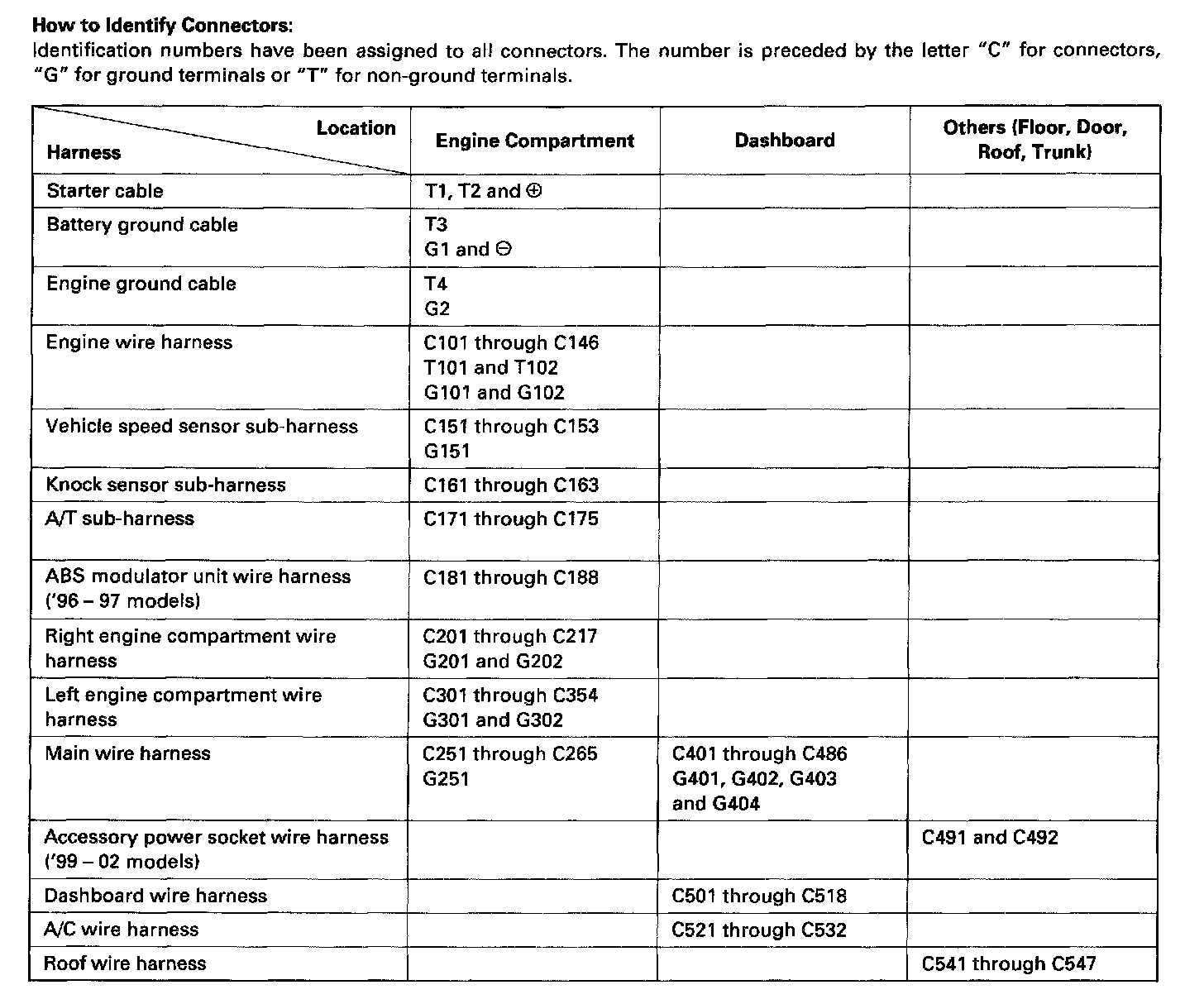

Part 1:

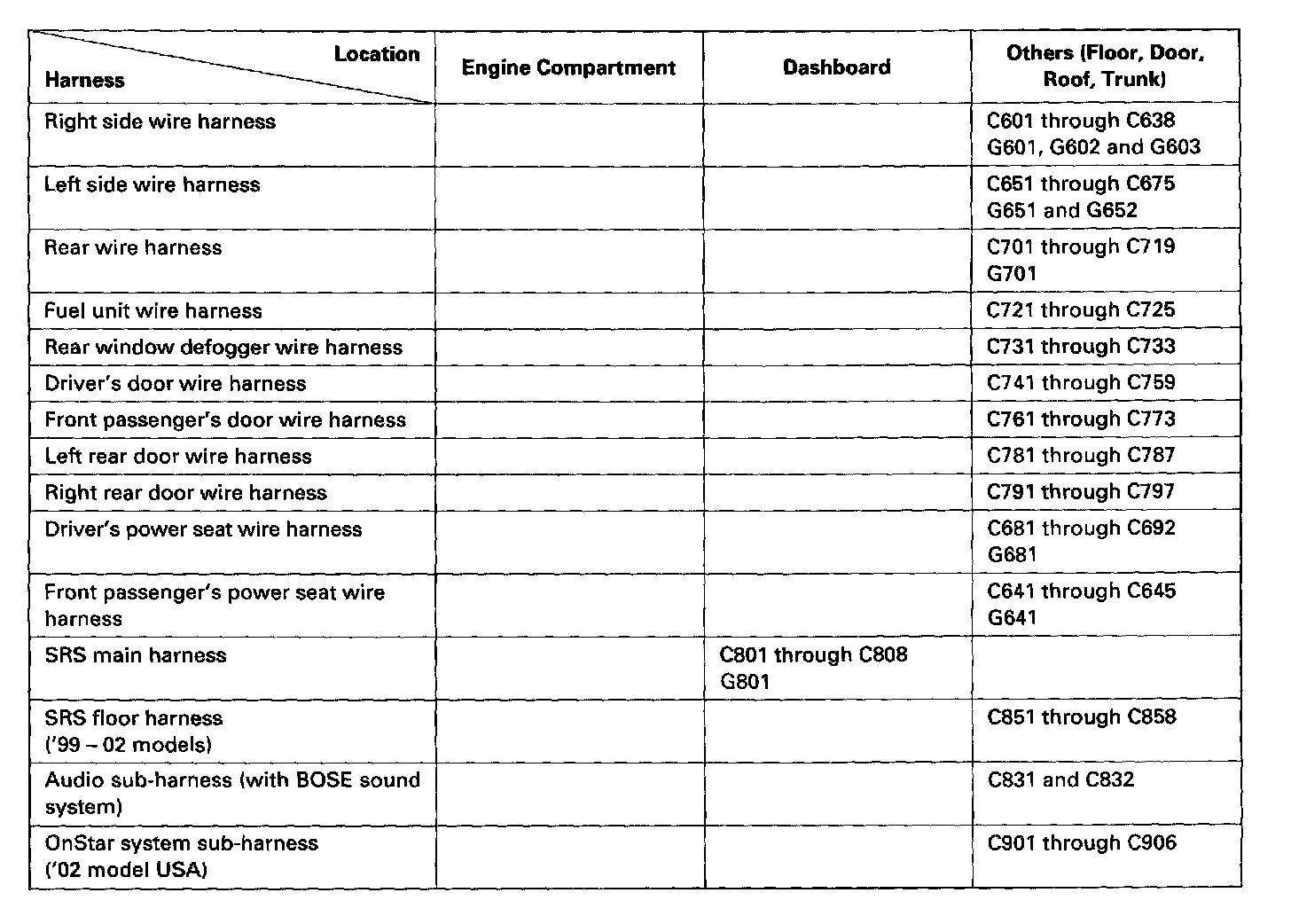

Part 2:
