Home >> Acura >> 2000 >> RL V6-3474cc 3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Testing and Inspection

Refrigerant Pressure Sensor / Switch: Testing and Inspection

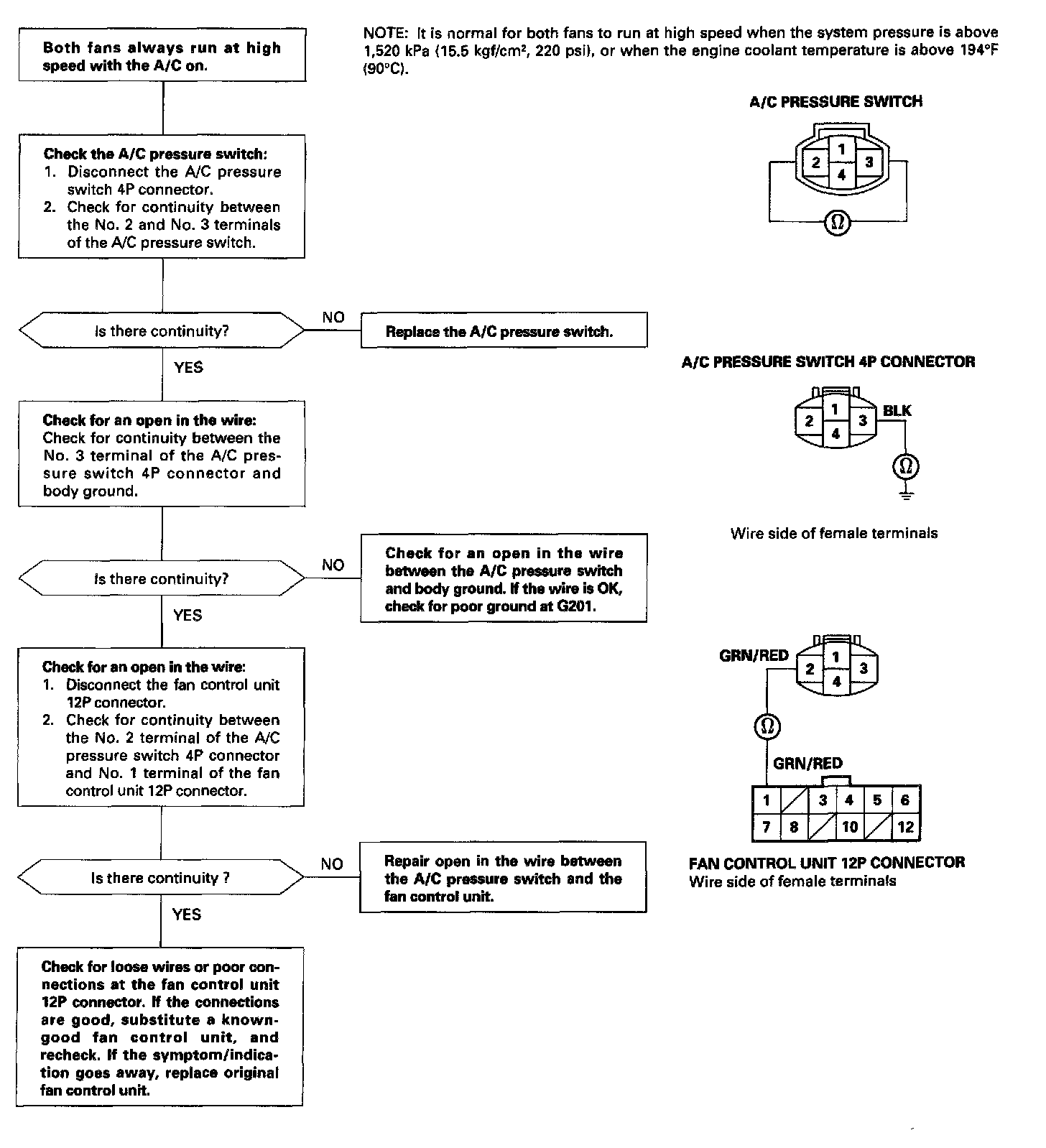

A/C Pressure Switch (Middle):
