Diagnostic Flowchart

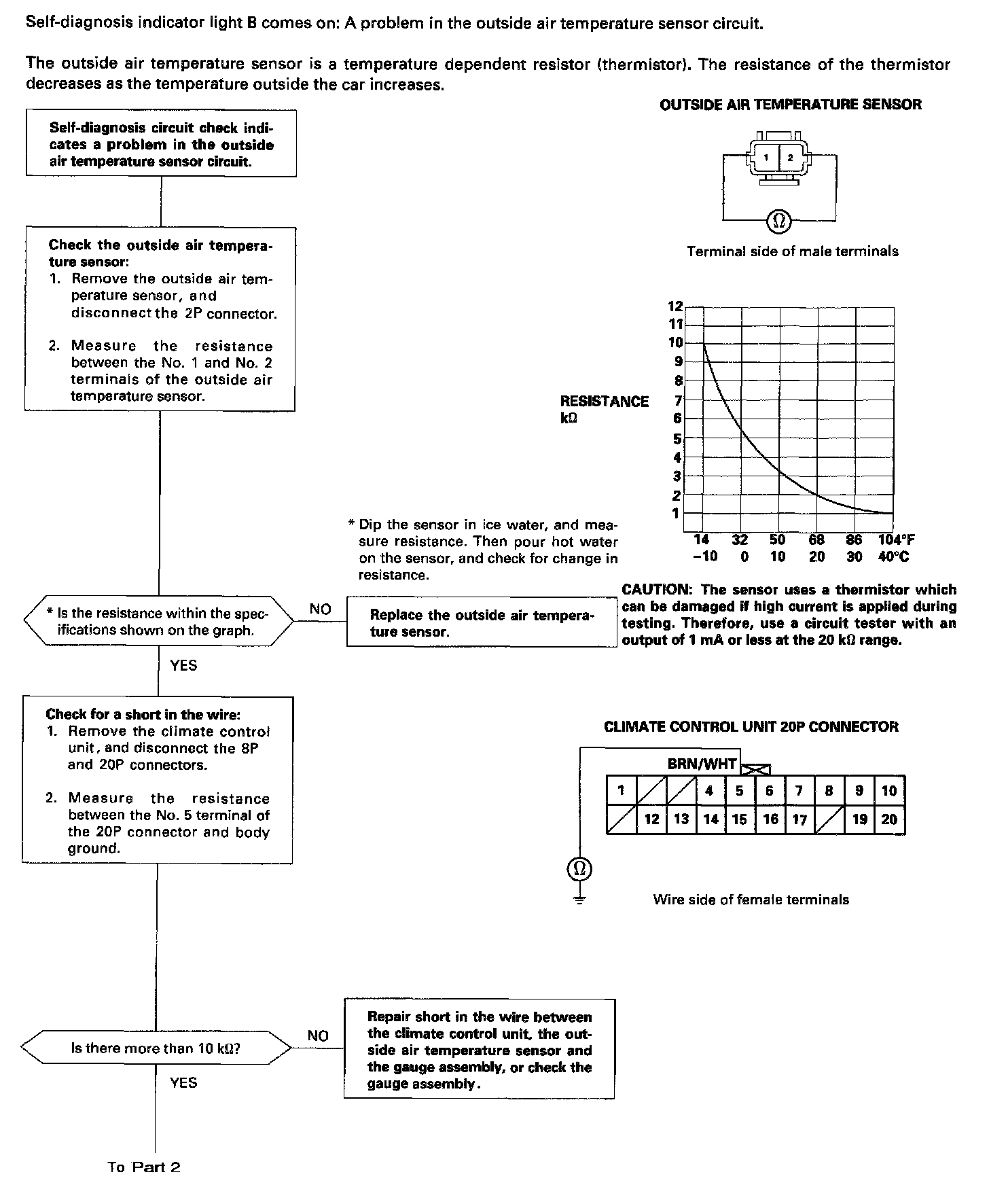

Outside Air Temperature Sensor (Part 1):

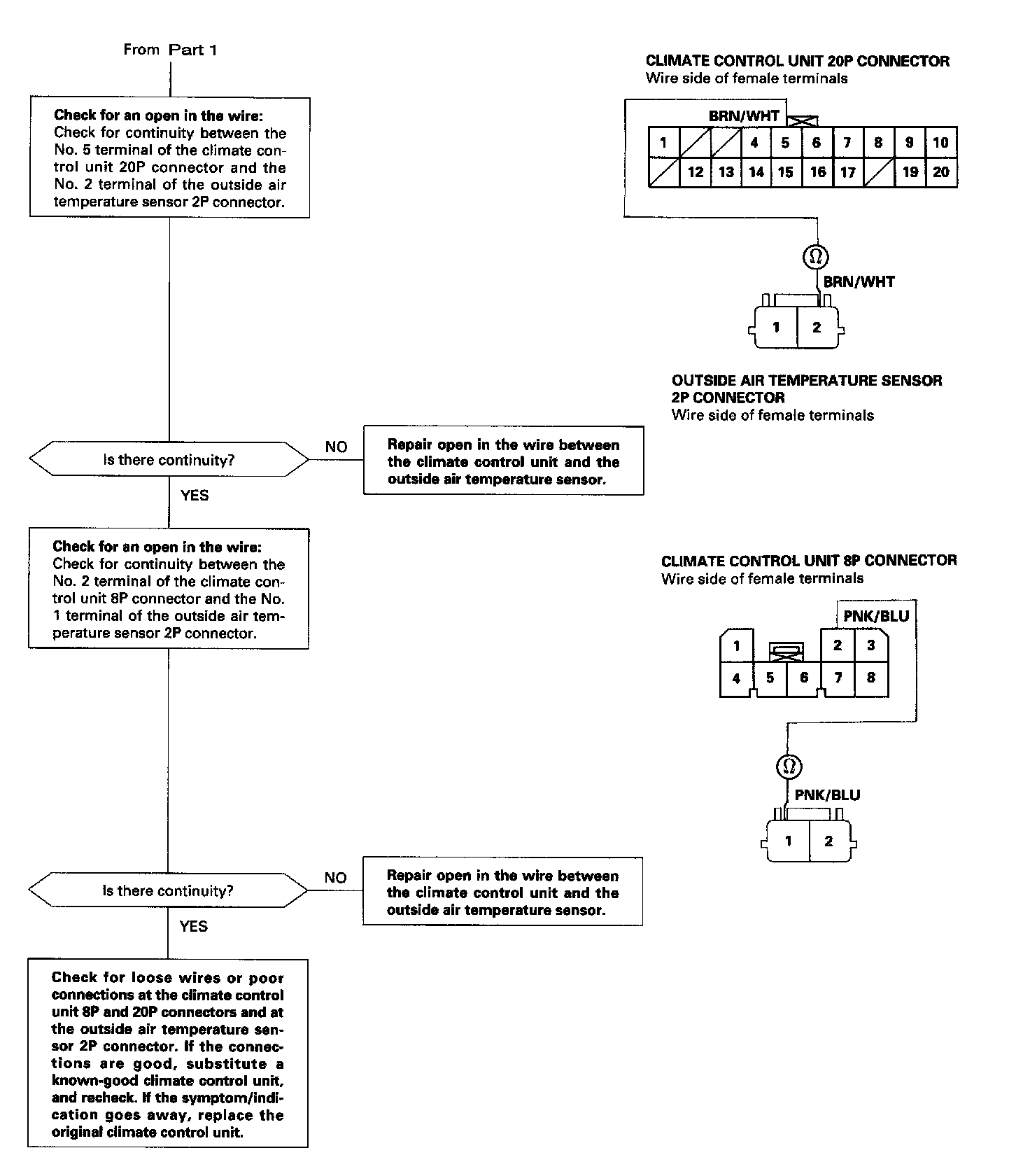

Outside Air Temperature Sensor (Part 2):
