Ambient Temperature Sensor / Switch HVAC: Service and Repair

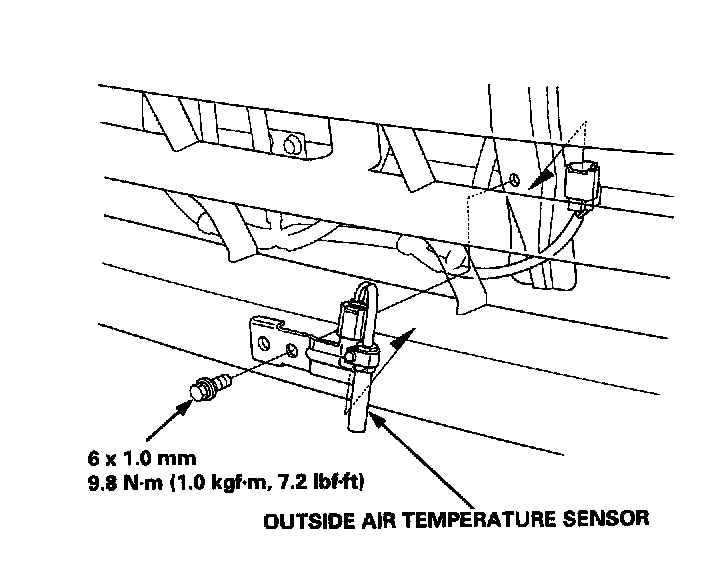

1. Disconnect the connector from the outside temperature sensor, then remove the bolt and the outside air temperature sensor.
2. Install in the reverse order of removal.
