Home >> Acura >> 2000 >> RL V6-3474cc 3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Torque Converter

Torque Converter

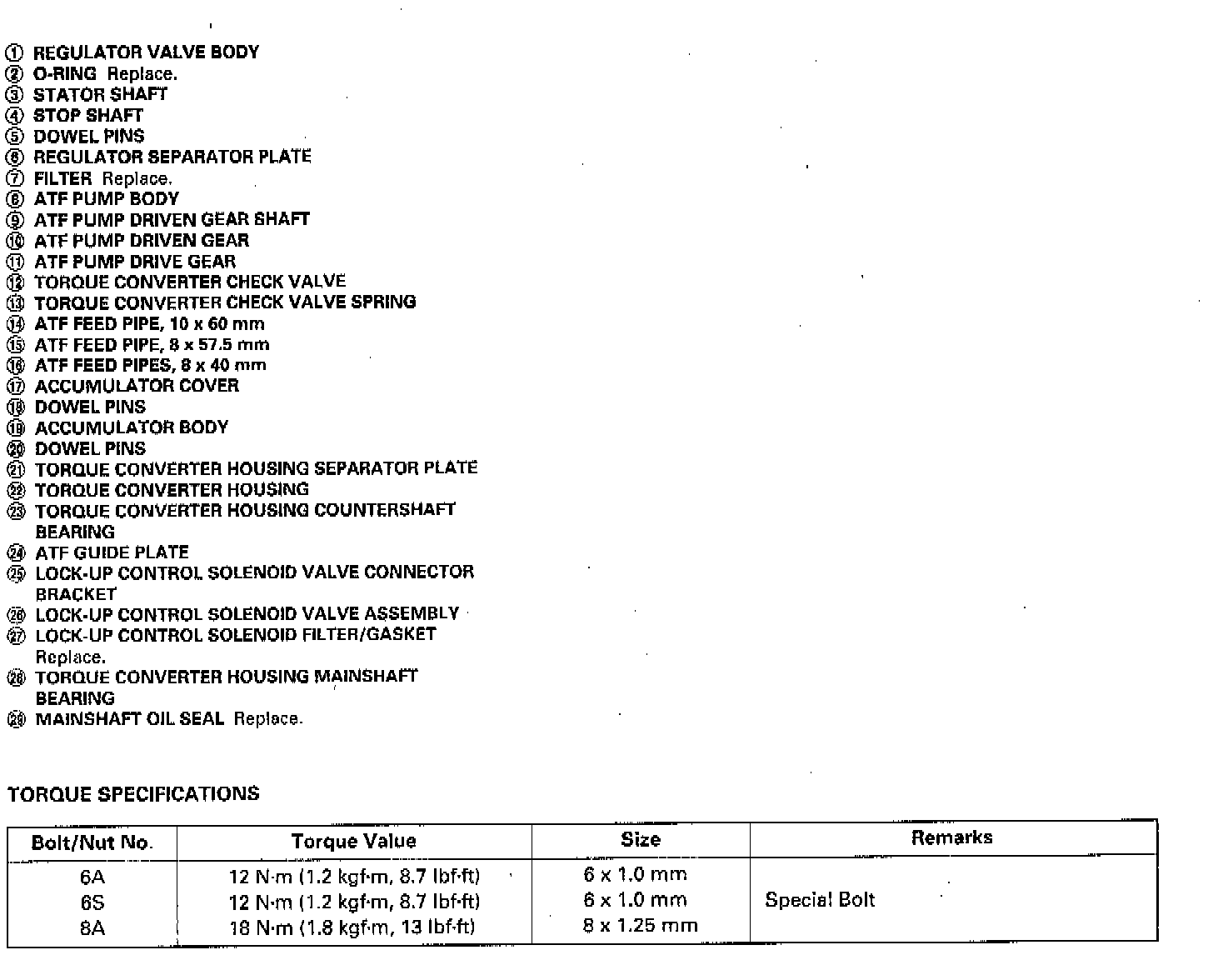

Part 1 Of 2:

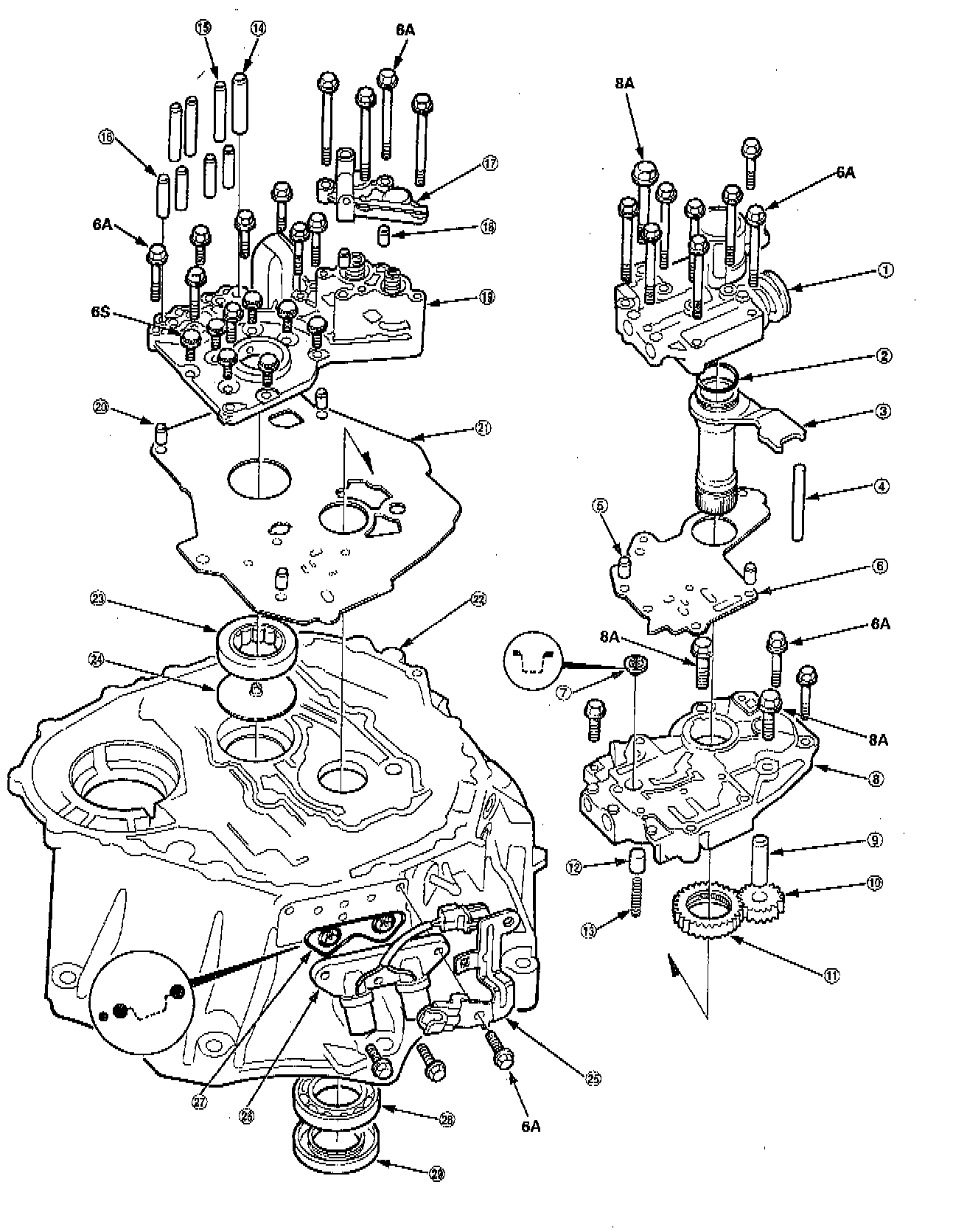

Part 2 Of 2:
